Front Bumper Cover / Fascia: Service and Repair

FRONT BUMPER COVER

Ford Fusion:

Mercury Milan:

Lincoln Zephyr:

Exploded View

All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 6 pin-type retainers (3 each side).
3. Remove the 8 fender splash shield screws (4 each side).

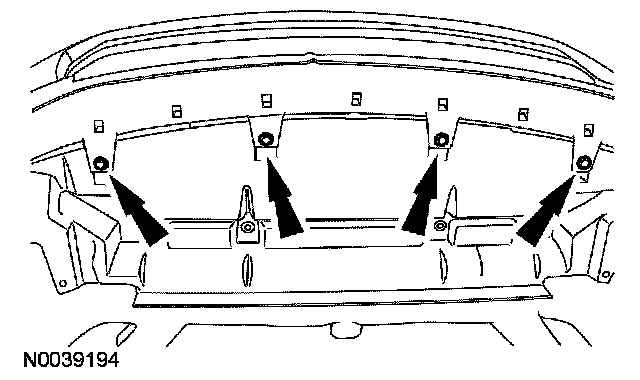

4. Remove the 4 air deflector bolts.

Zephyr only

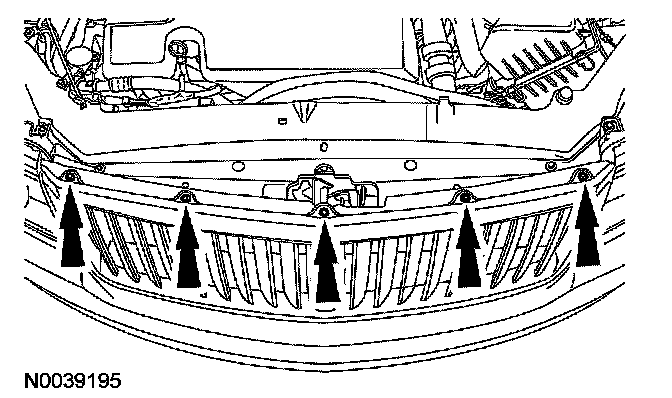

5. Remove the 5 bolts from the top of the radiator grille.

Fusion and Milan only

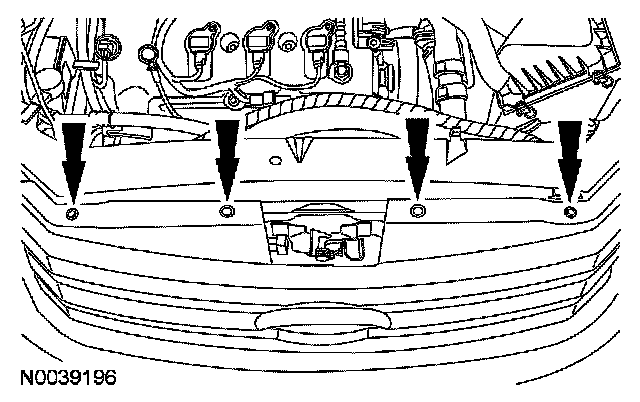

6. Remove the 2 bolts and the 2 pin-type retainers from the top of the radiator grille.

All vehicles
7. If equipped, disconnect the fog lamp electrical connectors.
8. Remove the front bumper cover.
9. To install, reverse the removal procedure.
