Equalizer: Service and Repair

DIGITAL SIGNAL PROCESSING (DSP) MODULE







Removal and Installation

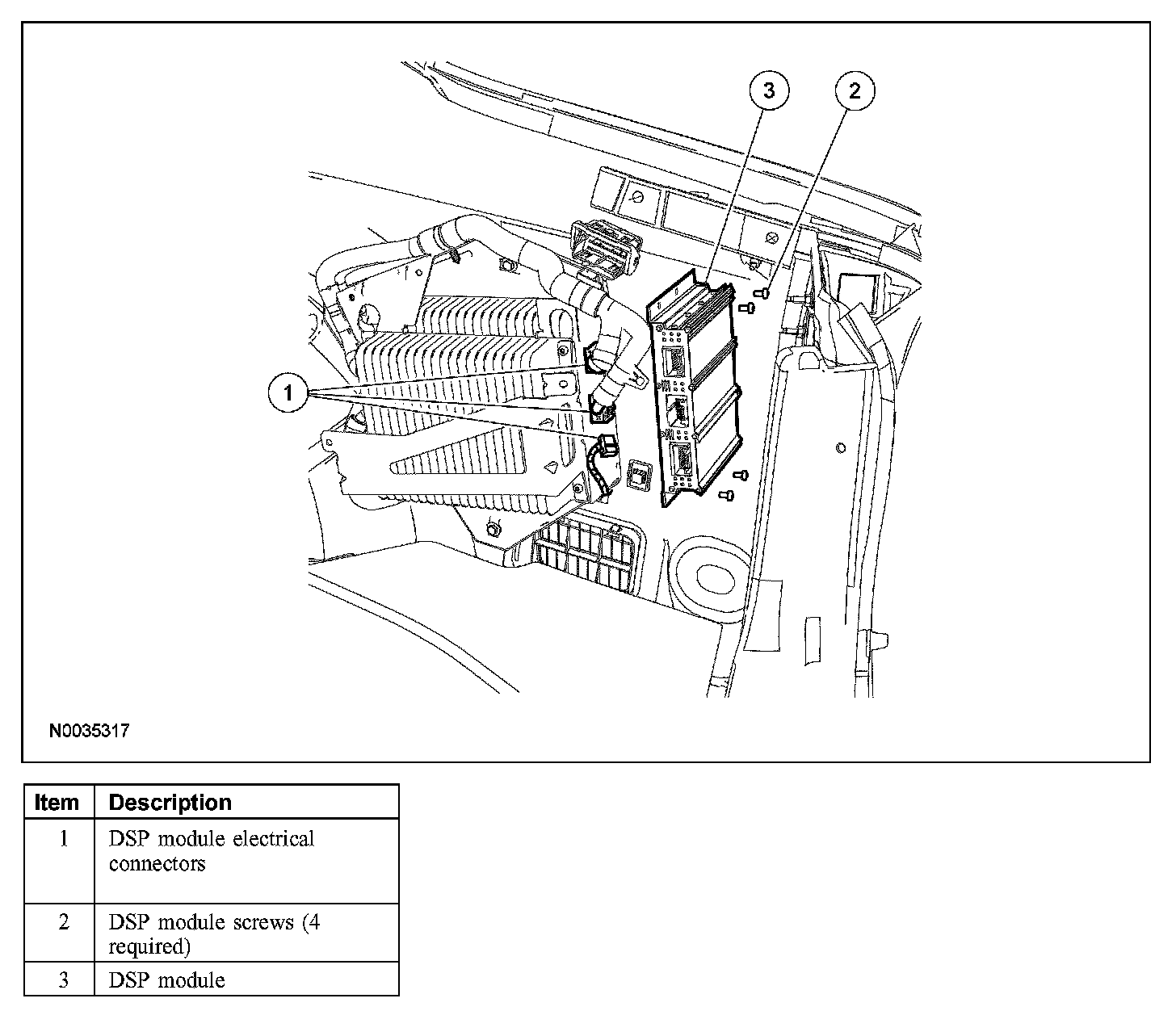

1. Remove the 4 pushpins and the RH luggage compartment trim panel.
2. Disconnect the DSP module electrical connectors.
3. Remove the 4 screws and the DSP module.
4. To install, reverse the removal procedure.
