Test A: DTC B1213 - Anti-Theft Number Of Programmed Keys Is Below Minimum

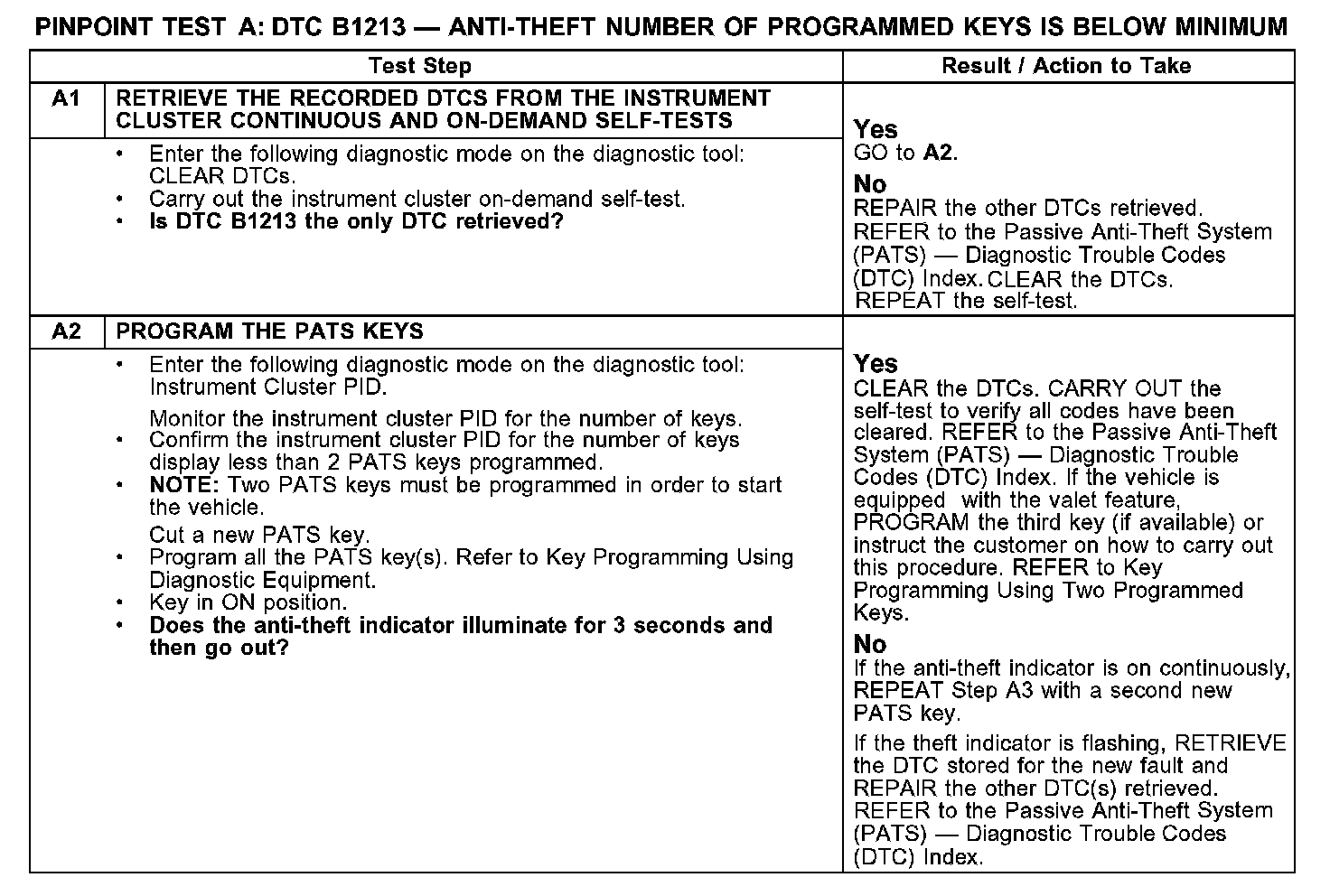

PINPOINT TEST A: DTC B1213 - ANTI-THEFT NUMBER OF PROGRAMMED KEYS IS BELOW MINIMUM

A1-A2:

Normal Operation
The passive anti-theft system (PATS) transceiver communicates with the PATS key. The instrument cluster carries out all of the PATS functions such as receiving the identification code from the PATS key and determining whether the key is a programmed key. The instrument cluster initiates the key interrogation sequence when the key is turned to the START or RUN position.

Possible Causes
- less than 2 keys programmed to the system
- PATS transceiver
- unprogrammed PATS key
- instrument cluster
