Home >> Mercury >> 2006 >> Milan L4-2.3L VIN Z >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> FNR5 Automatic Transaxle/Transmission >> Diagnostic Routines >> Shift Concerns 210/310-237/337 >> 234/334, Harsh 3-4 Shift

234/334, Harsh 3-4 Shift

Shift Concern: Harsh 3-4 Shift

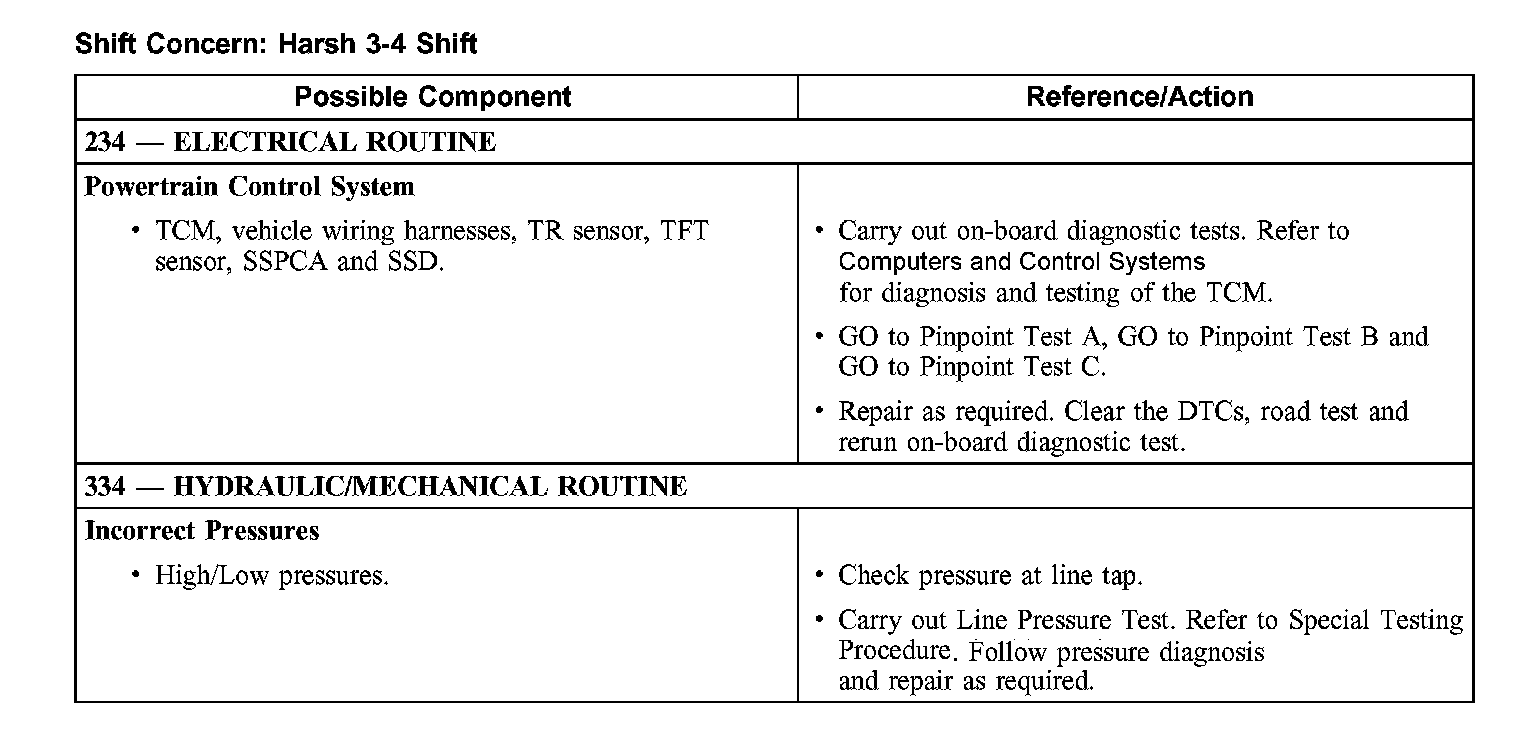

234/334, Harsh 3-4 Shift (Part 1):

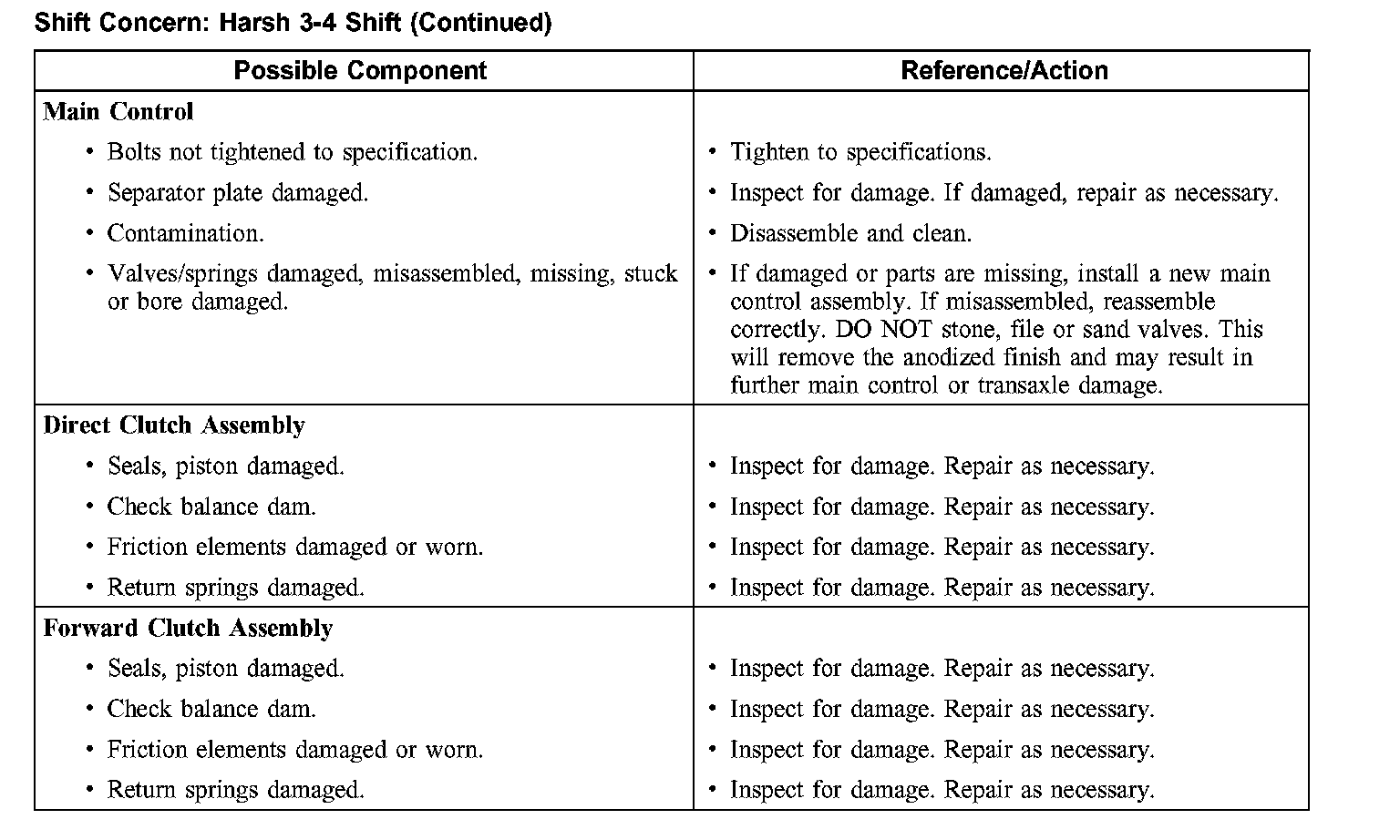

234/334, Harsh 3-4 Shift (Part 2):
