Test F: Intermediate Shaft Speed Sensor and Output Shaft Speed (OSS) Sensor



PINPOINT TEST F: INTERMEDIATE SHAFT SPEED SENSOR AND OUTPUT SHAFT SPEED (OSS) SENSOR

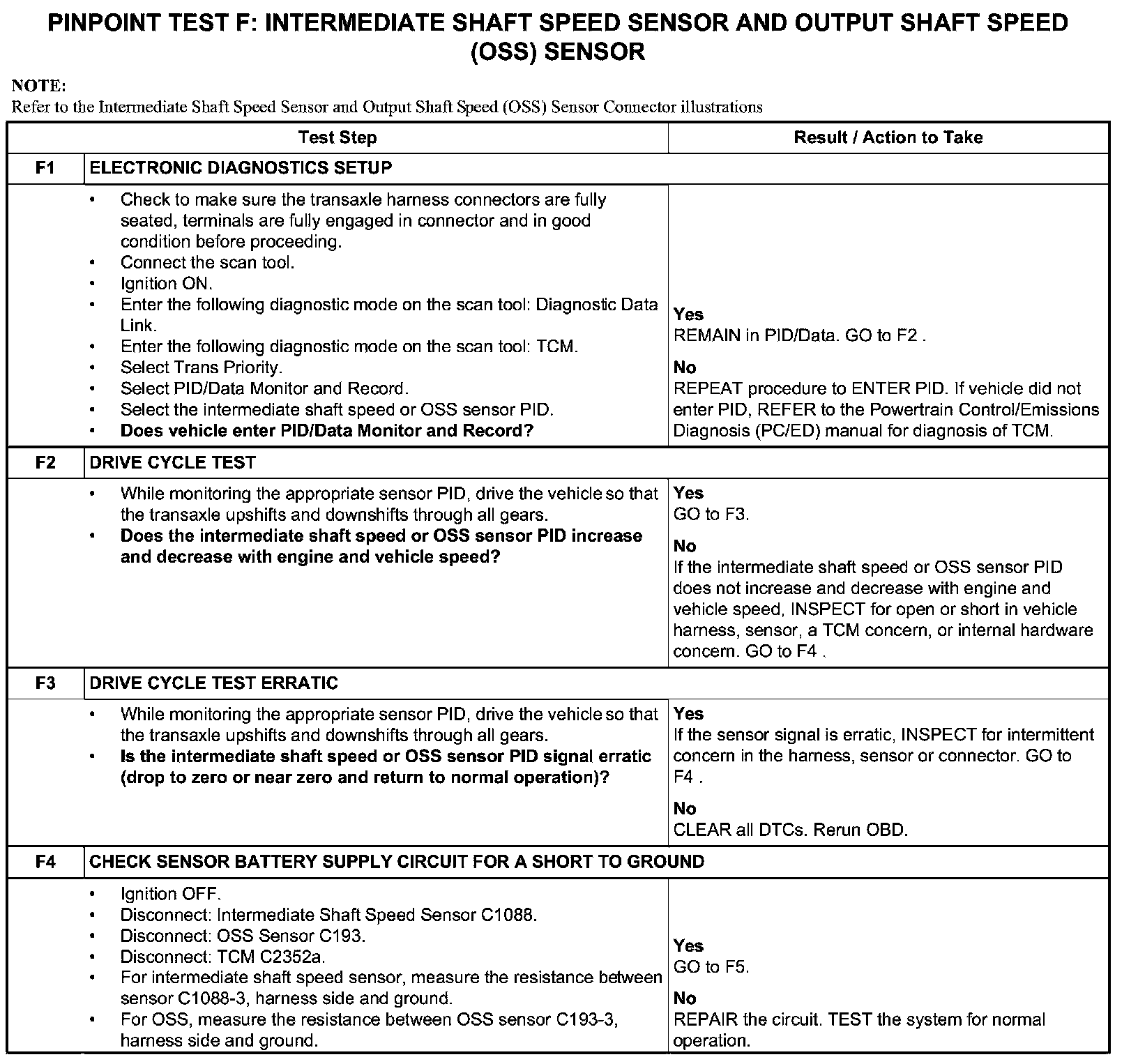

F1-F4:

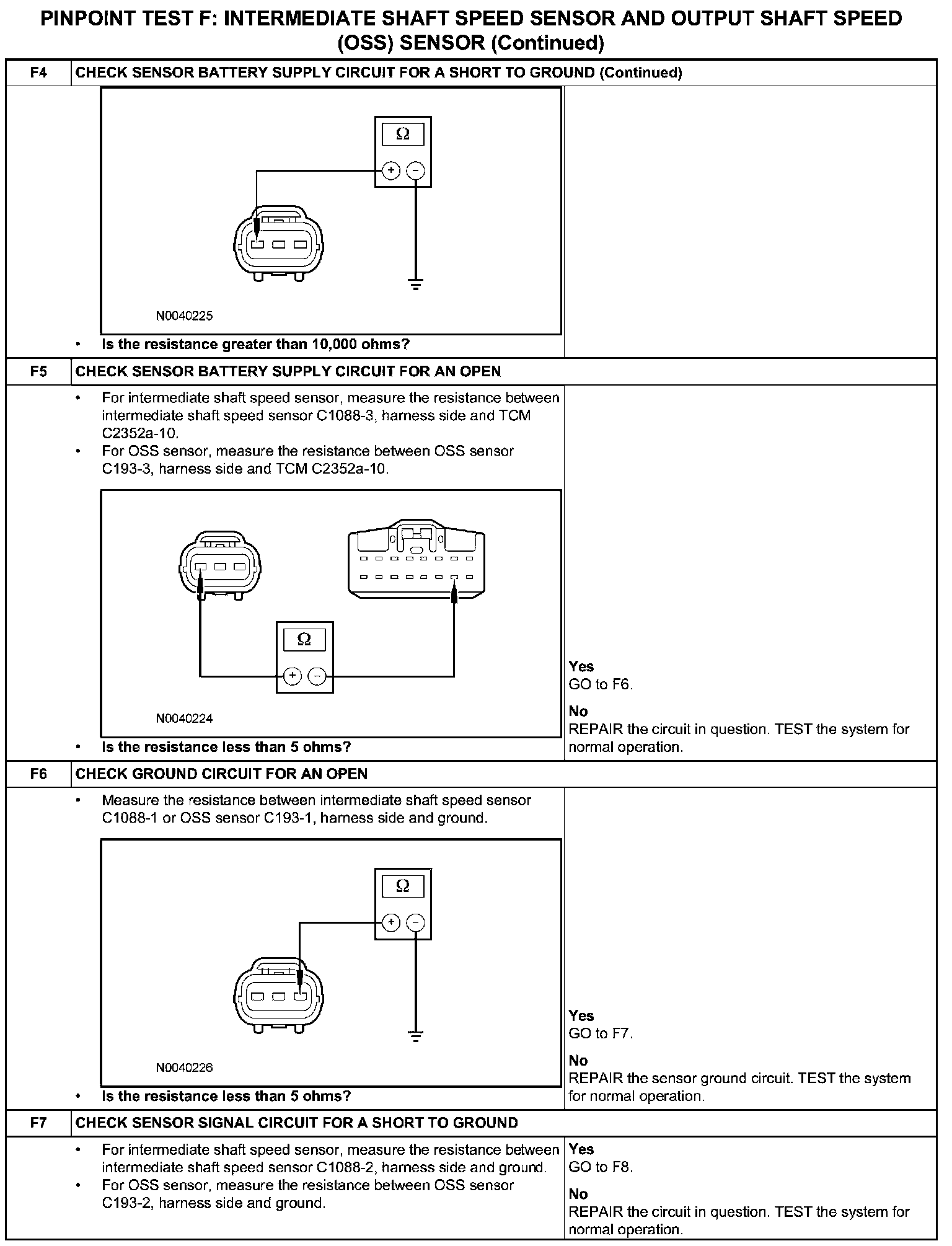

F4-F7:

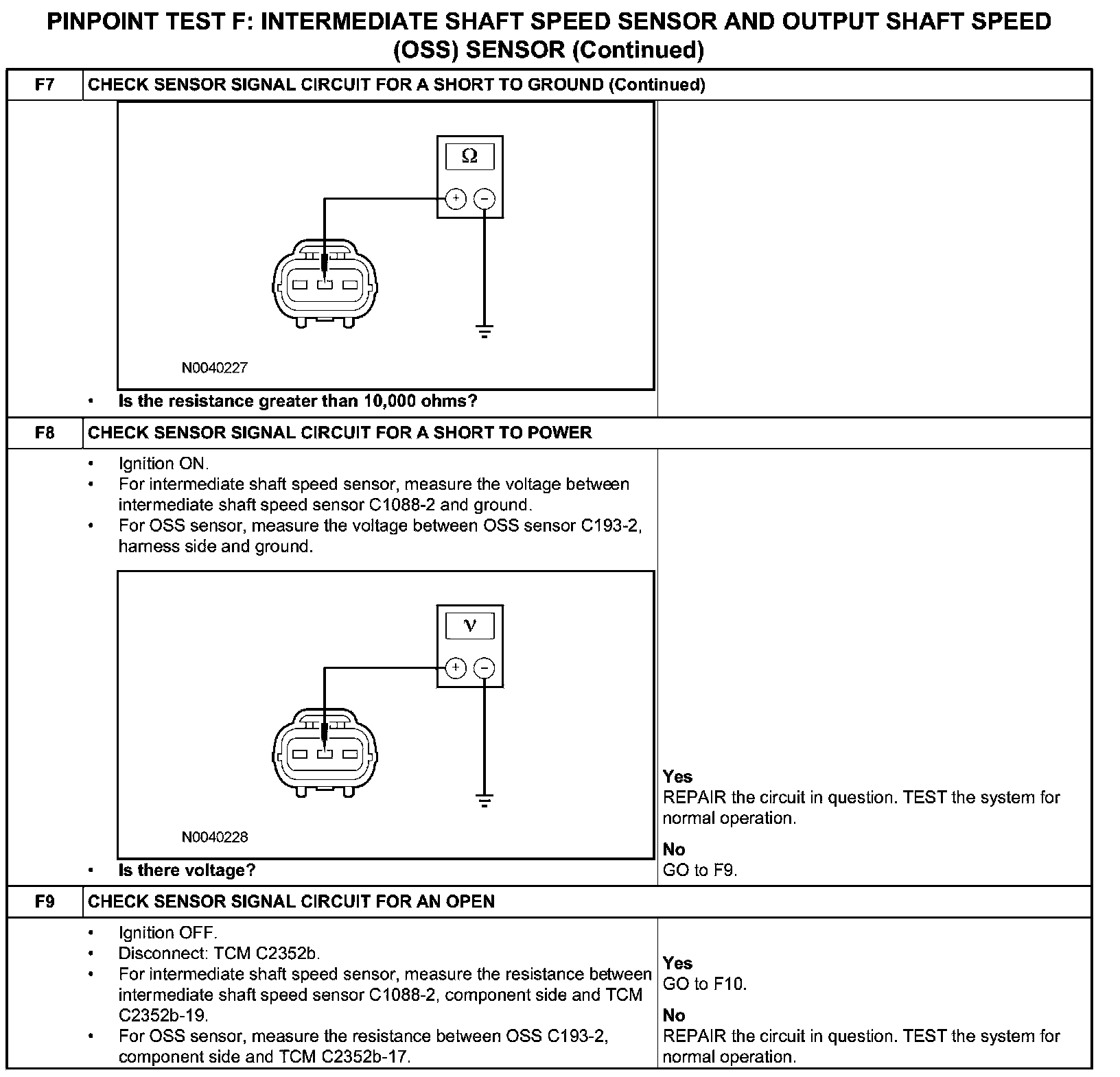

F7-F9:

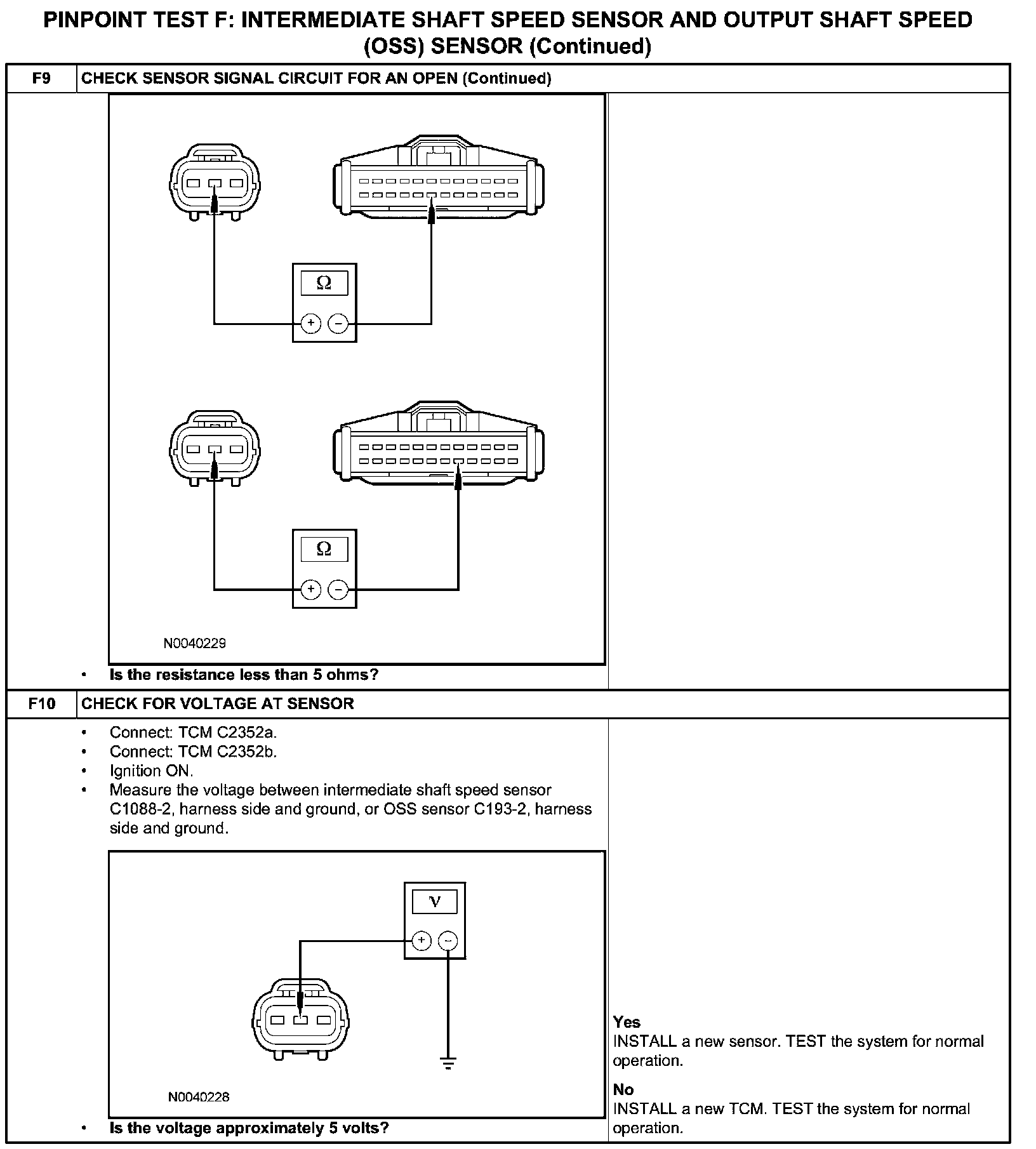

F9-F10:
