FNR5 - Automatic Transaxle/Transmission
>>
Diagnostic Strategies
>>
Diagnostic Flow Chart
Diagnostic Flow Chart
Diagnostic Flow Chart

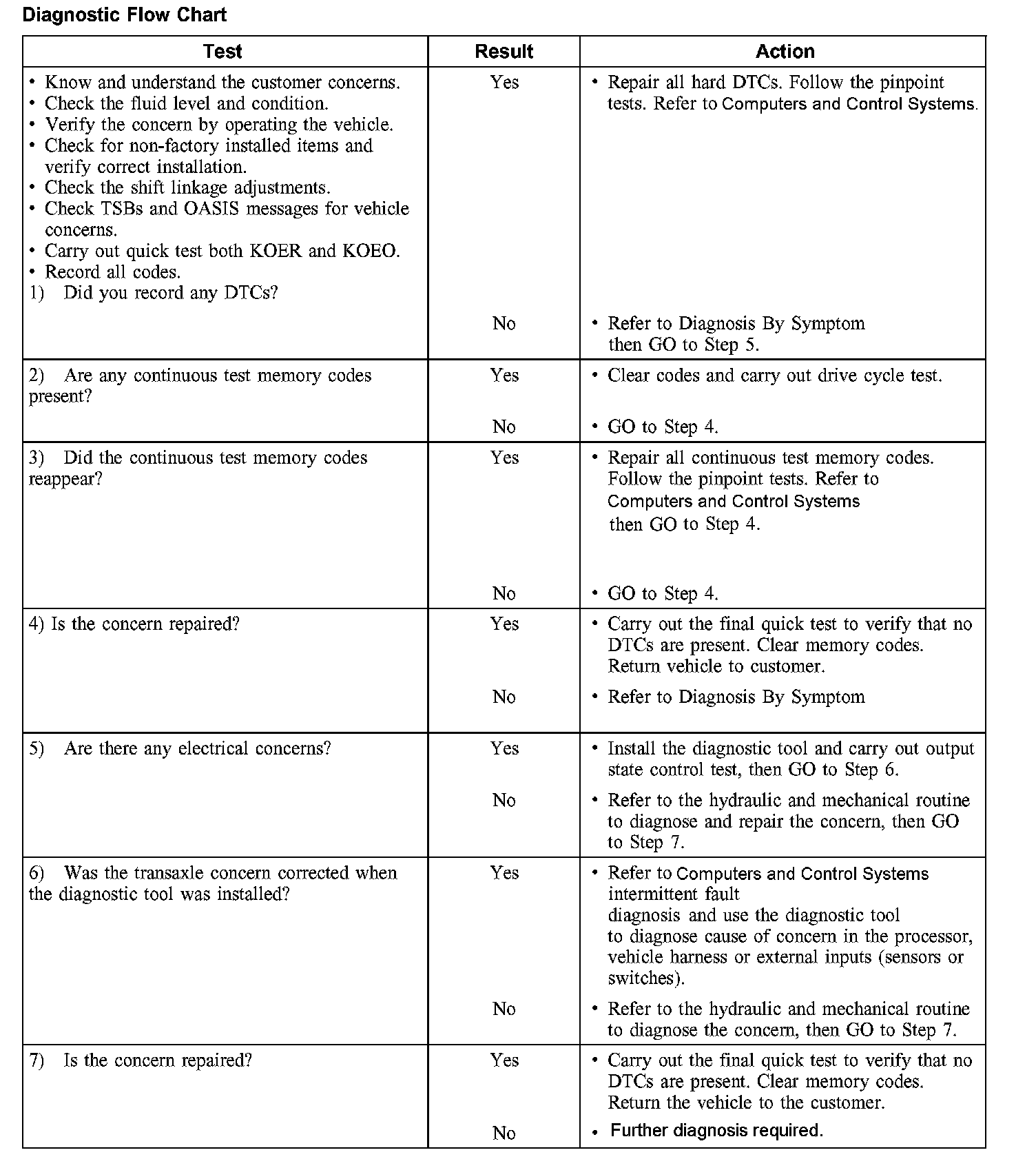

Diagnostic Flow Chart:
