Selector Lever Bezel

Selector Lever Bezel

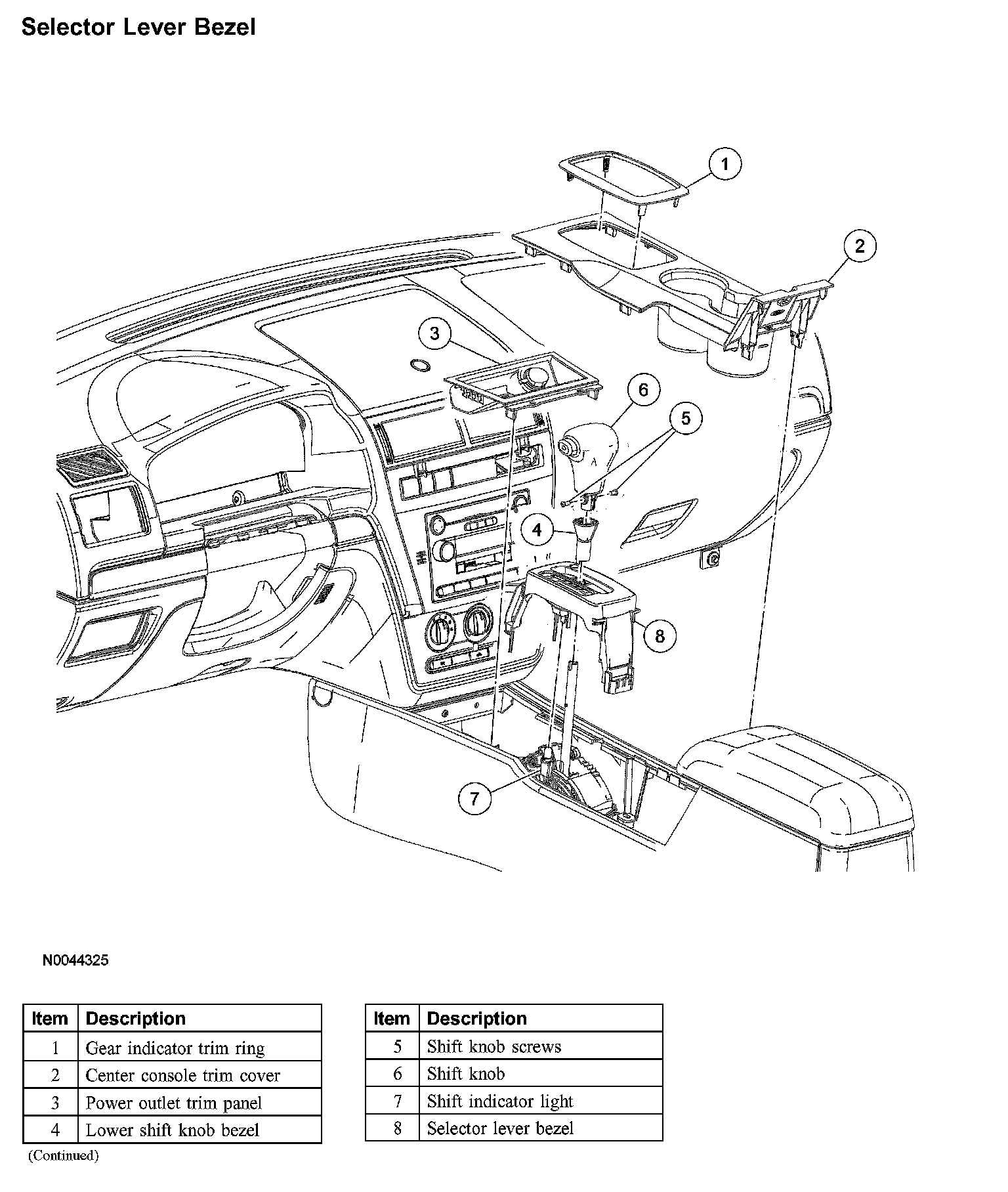

Selector Lever Bezel:

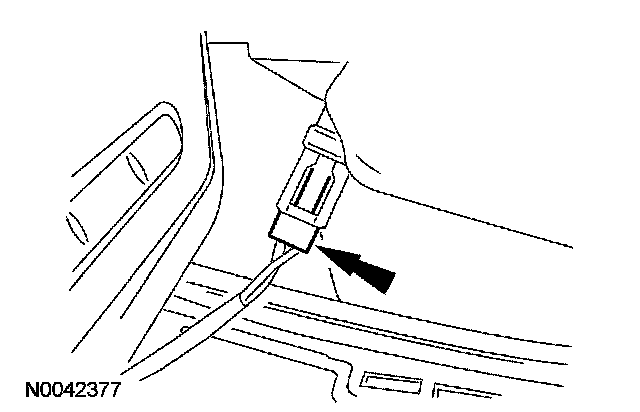

Removal

All vehicles

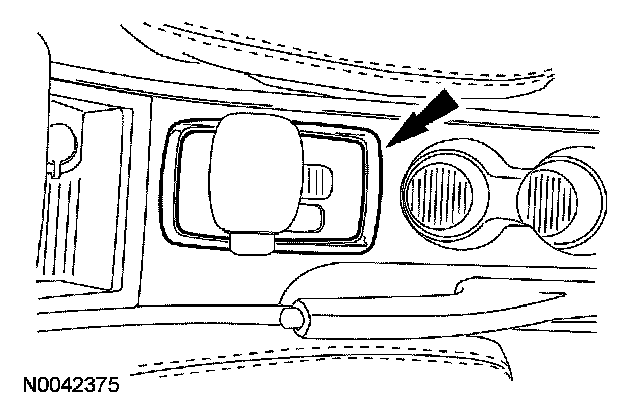

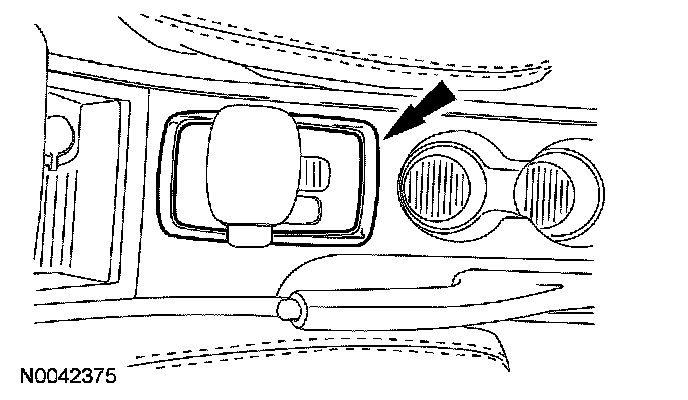

1. Remove the PRNDL trim ring.

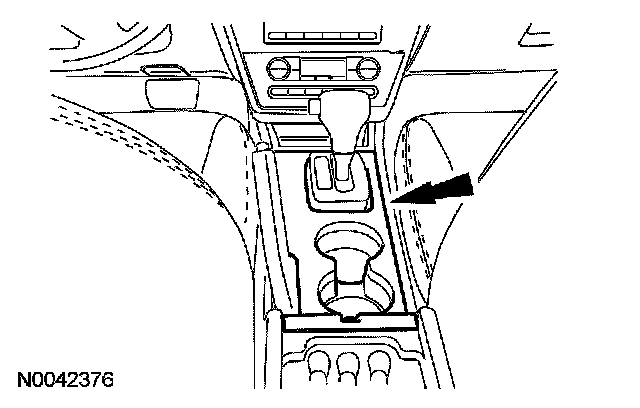

2. Remove the upper console panel.

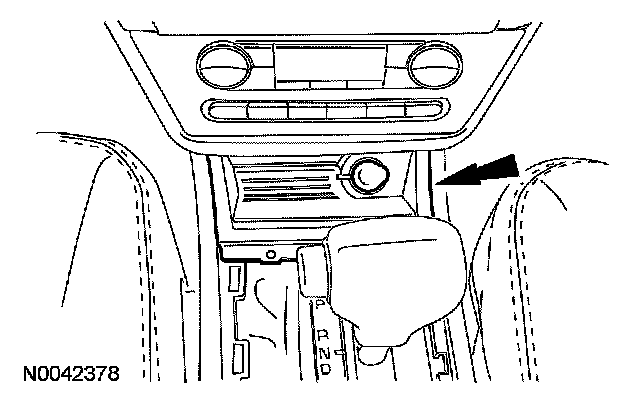

3. Remove the power outlet trim panel from the center console.

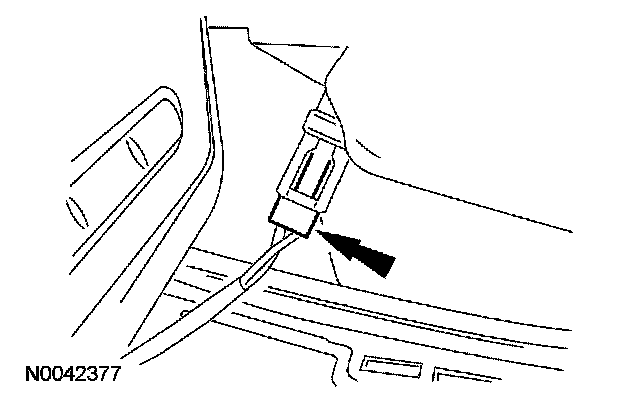

4. Disconnect the electrical connector and remove the power outlet trim panel.

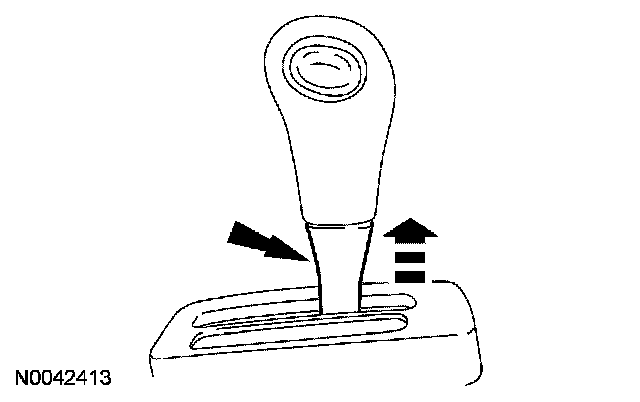

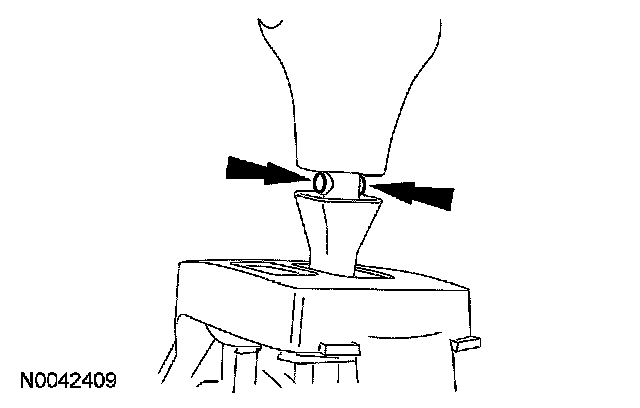

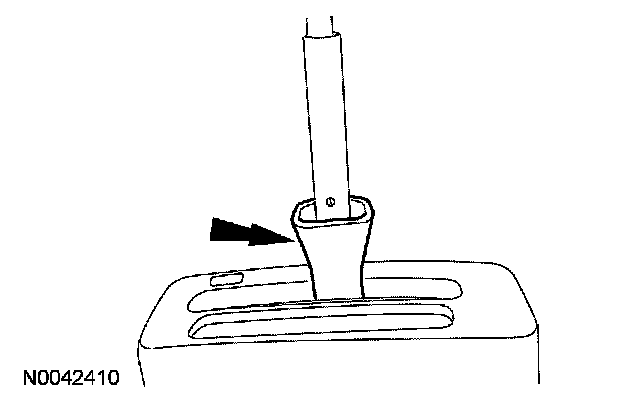

5. Slide the lower shift knob bezel downward.

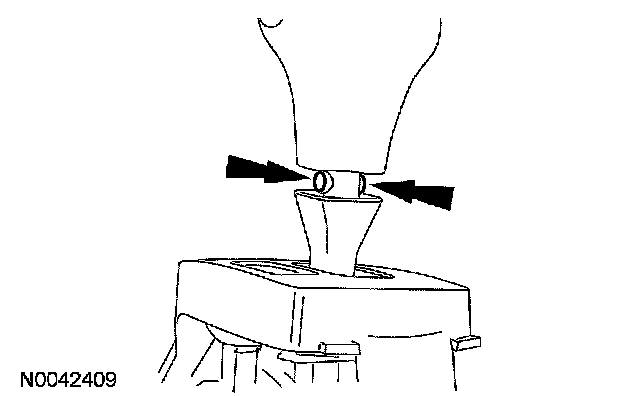

6. Remove the 2 bolts and remove the selector lever knob.

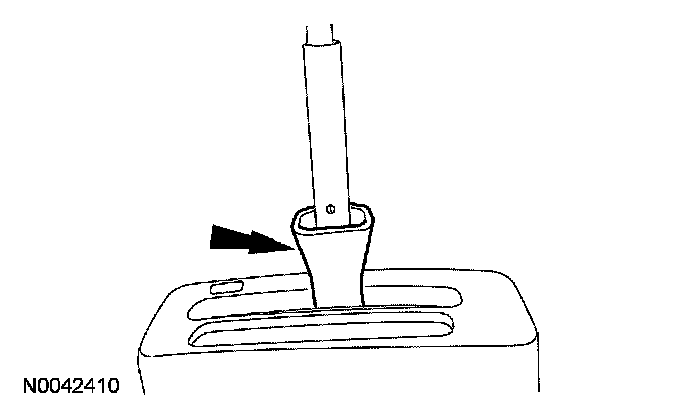

7. Remove the lower shift knob bezel.

Vehicles equipped with a light bulb

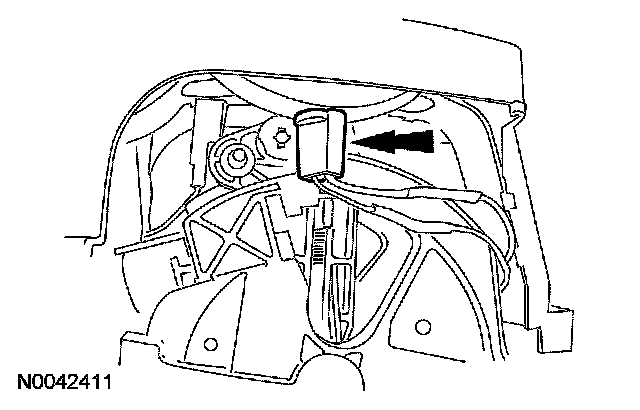

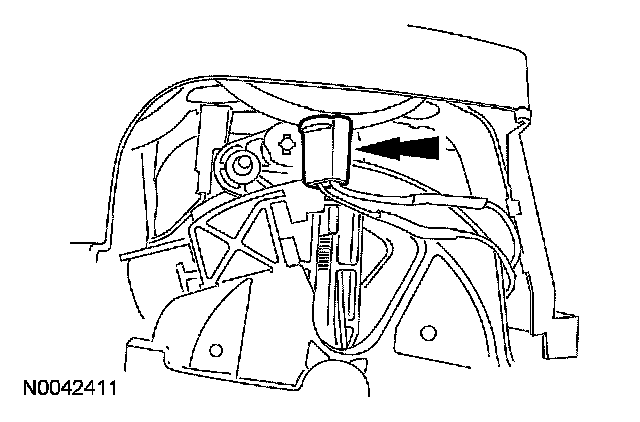

8. Disconnect the light from the PRNDL bezel.

Vehicles equipped with LED illumination

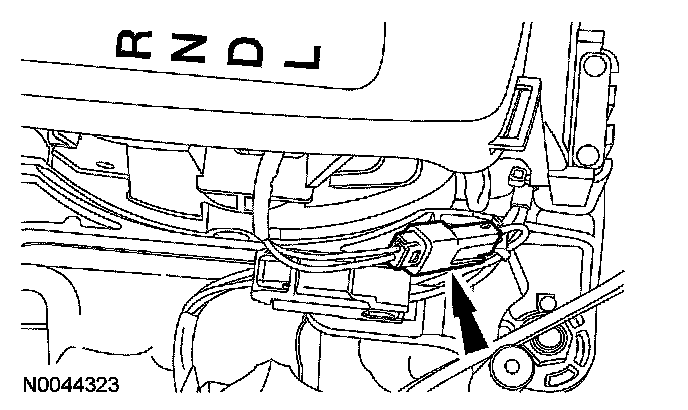

9. Disconnect the LED electrical connector.

All vehicles

10. NOTE: Selector lever shown removed for clarity.

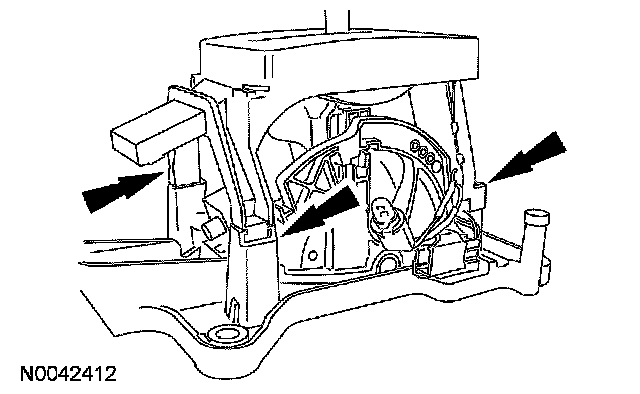

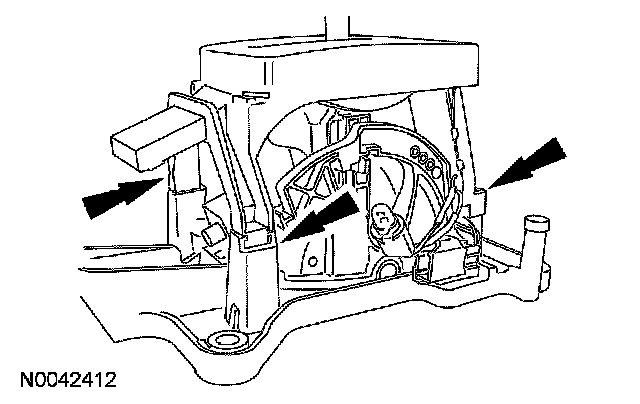

Release the 3 tabs and remove the PRNDL bezel.

Installation

All vehicles

1. NOTE: Selector lever shown removed for clarity.





Install the PRNDL bezel.
^ Make sure that the 3 locking tabs are locked in place.

Vehicles equipped with LED illumination





2. Connect the LED electrical connector.

Vehicles equipped with a light bulb





3. Connect the light to the PRNDL bezel.

All vehicles





4. Install the lower shift knob bezel.





5. Install the shift knob and the bolts.

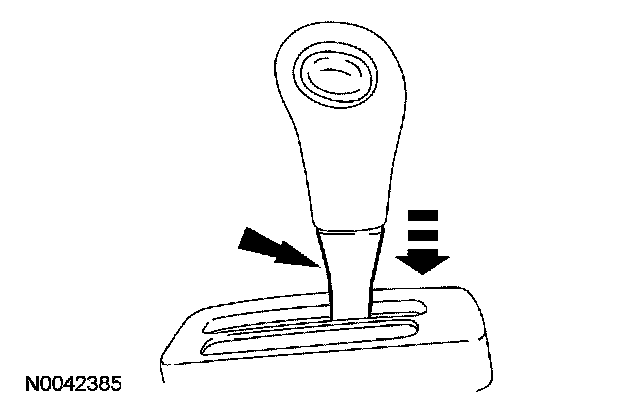

6. Slide the lower shift knob bezel up and snap it into place.





7. Connect the power outlet electrical connector.





8. Install the power outlet trim panel in the center console.





9. Install the upper console panel.





10. Install the PRNDL trim ring.
