Torque Converter Hub Seal

Torque Converter Hub Seal

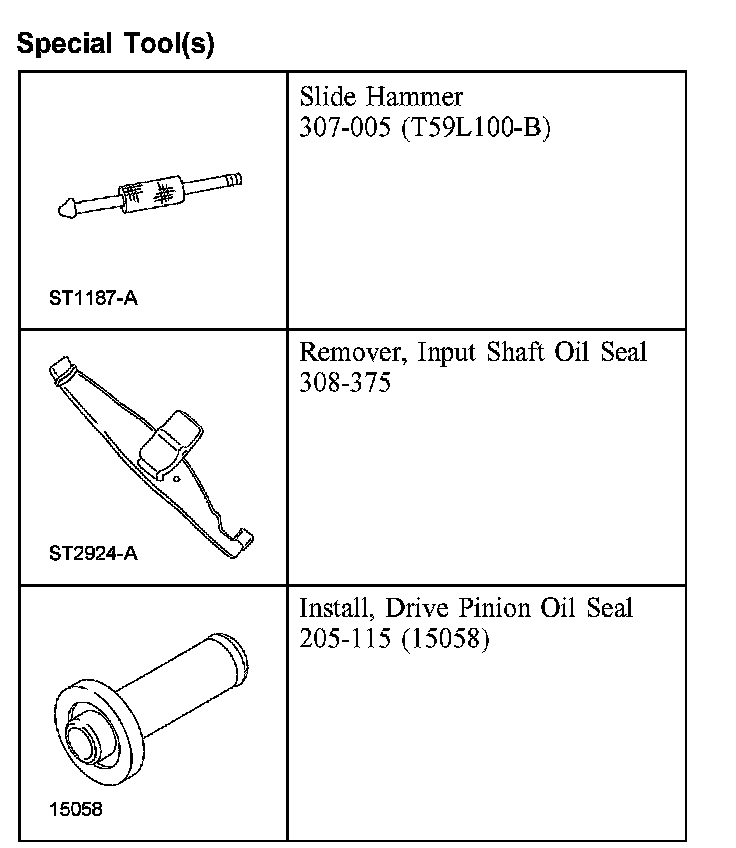

Special Tool(s):

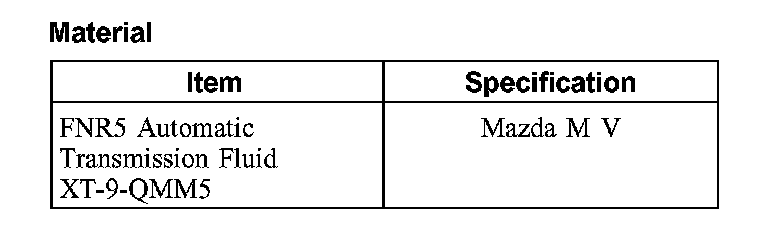

Material:

Disassembly
1. Remove the transaxle.

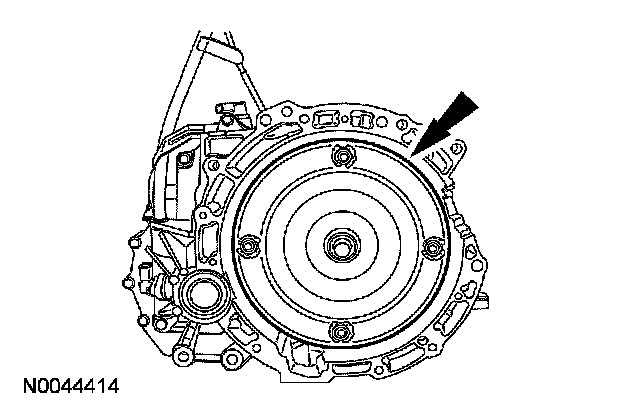

2. Remove the torque converter.

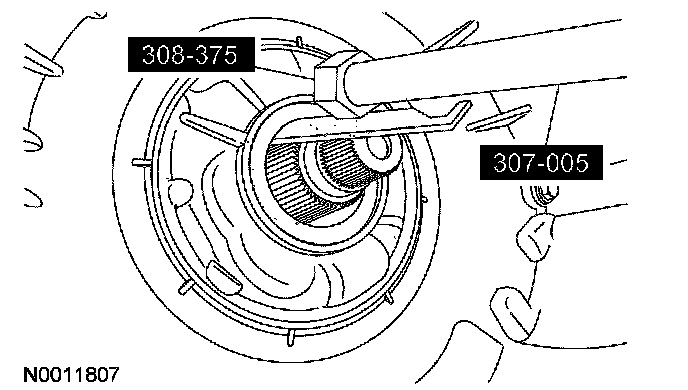

3. Using the special tools, remove the torque converter hub seal.

Assembly

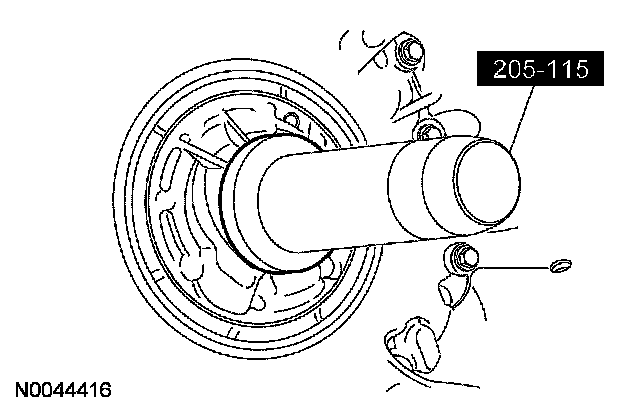

1. Using the special tools, install the torque converter hub seal.

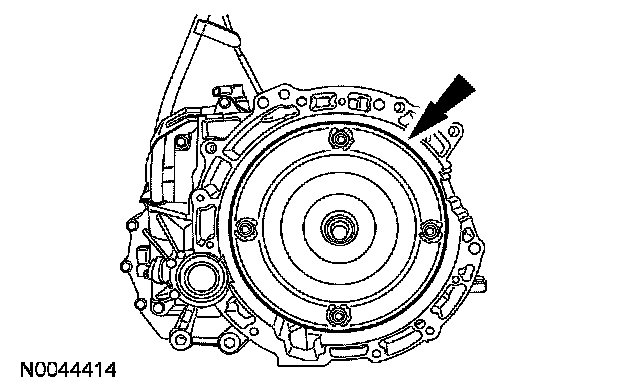

2. Install the torque converter.
3. Install the transaxle.
