Transaxle Cooling

Transaxle Cooling - FNR5
These vehicles are equipped with an internal fluid cooler. The cooler is mounted in the engine radiator tank. In operation, transmission fluid travels from the transaxle to the fluid cooler then back to the transaxle. The fluid cooler transfers heat from the transmission fluid to the engine coolant.

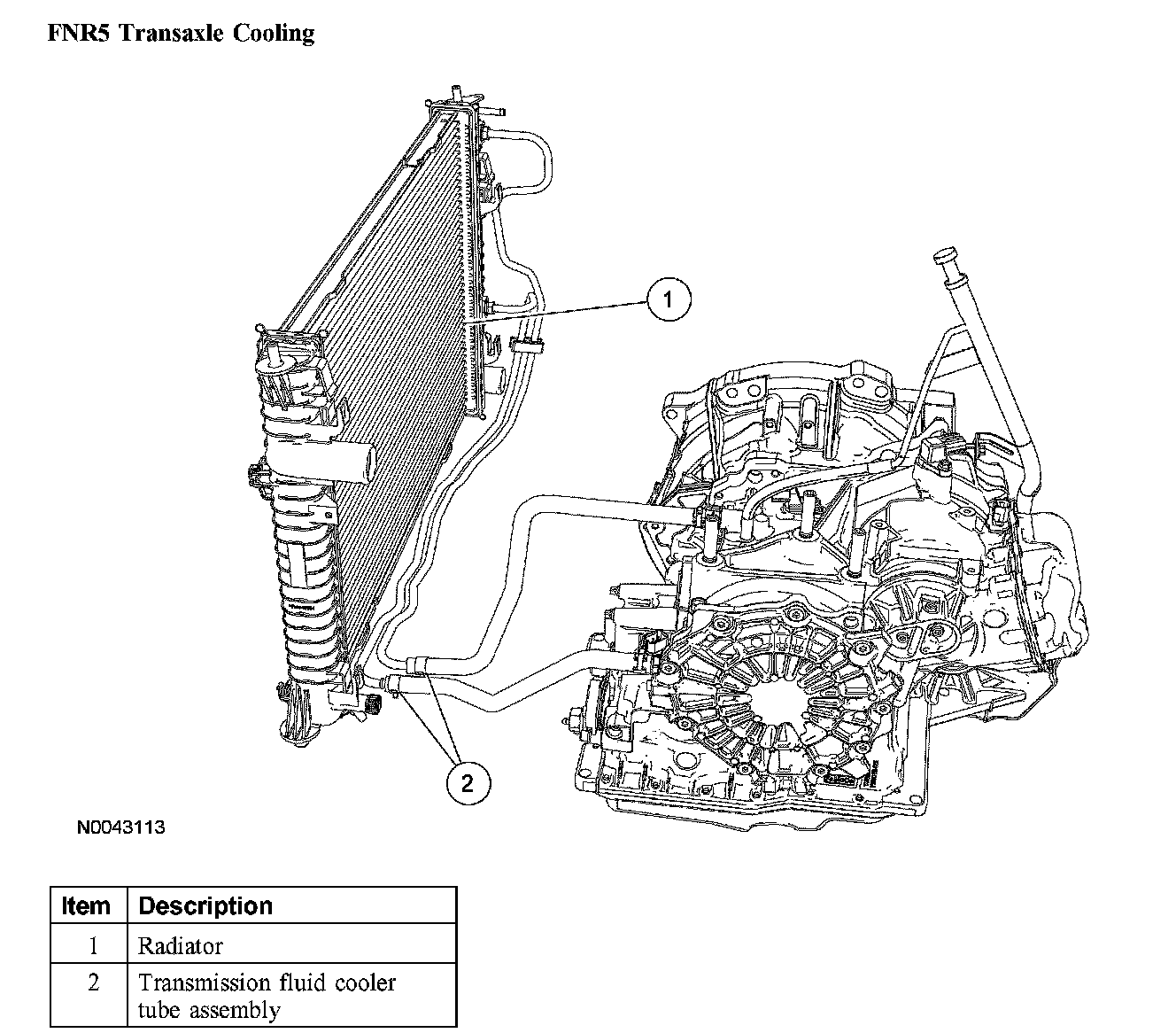

FNR5 Transaxle Cooling:
