Test D: No Power in START

Pinpoint Test D: No Power in START

Normal Operation
The ignition switch START circuit provides greater than 10 volts, through circuit CDC35 (BU/WH) to the SJB, when the key is in the START position.

Possible Causes
^ Circuit CDC35 (BU/WH) open or short to ground
^ Ignition switch
^ SJB

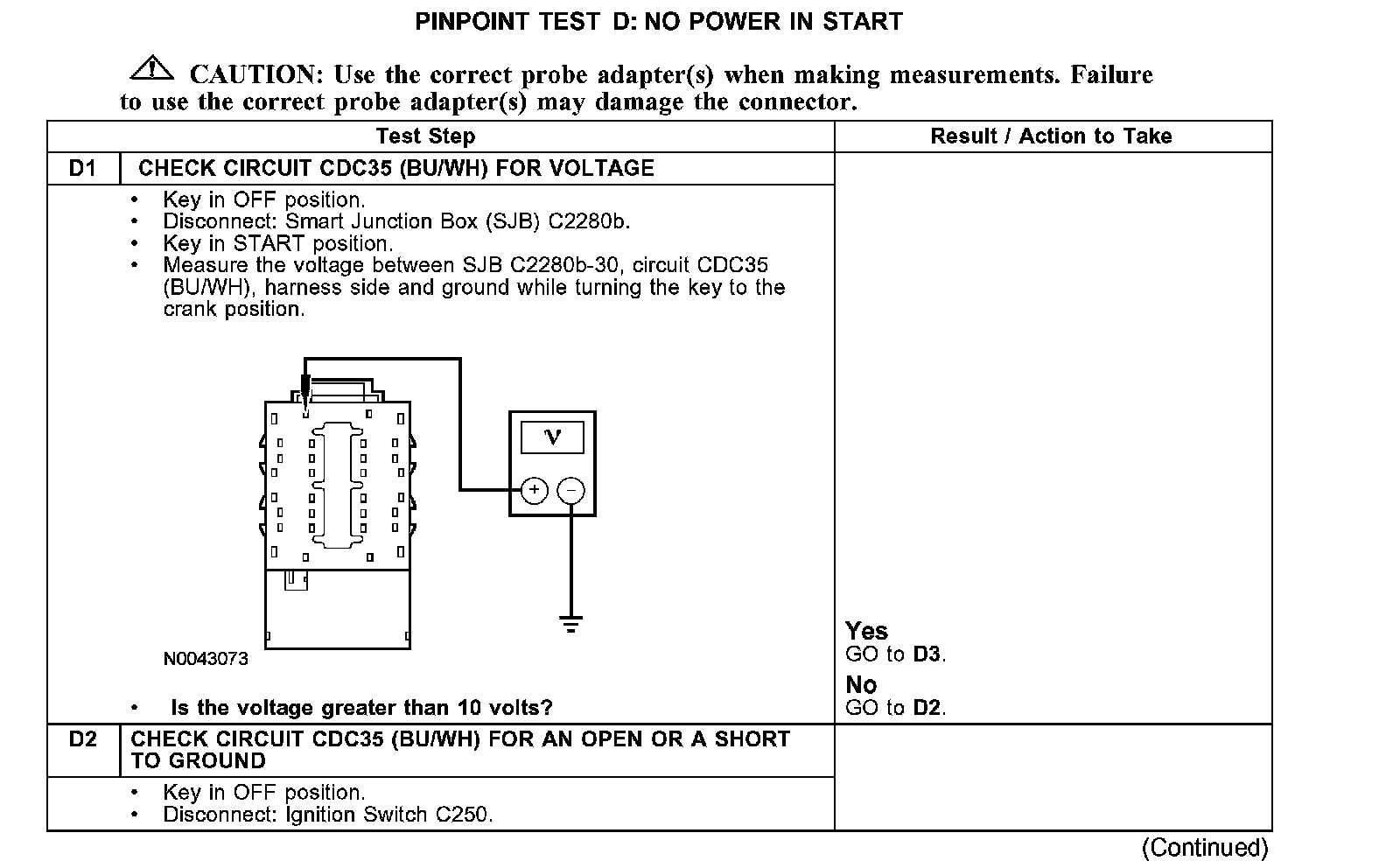

D1-D2:

D2-D3:
