Test B: No Power in ACC

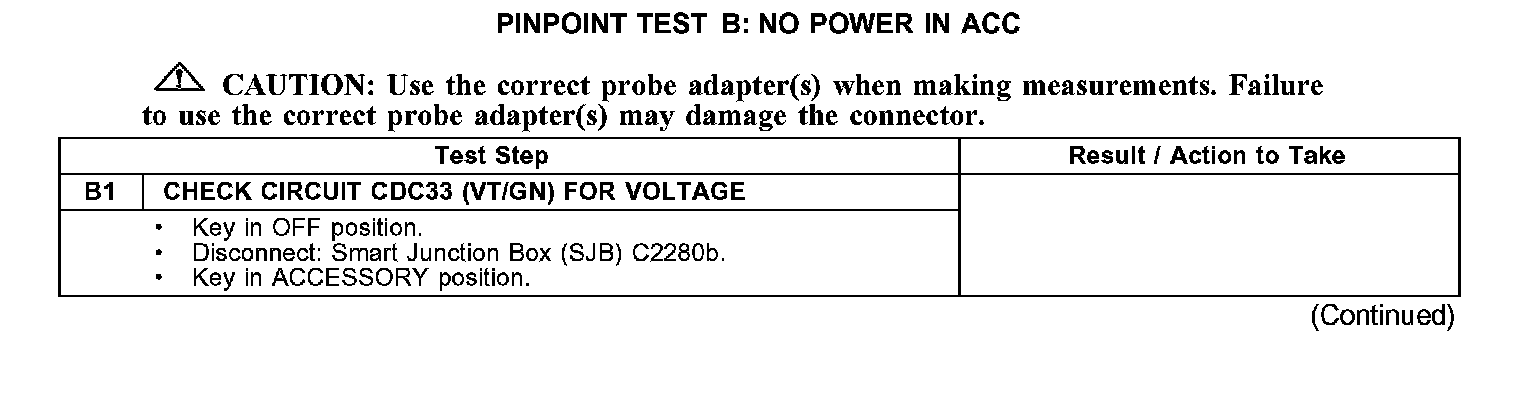

Pinpoint Test B: No Power in ACCNormal Operation
The ignition switch ACC circuit provides greater than 10 volts, through circuit CDC33 (VT/GN) to the SJB, when the key is in the ACC position.
Possible Causes
^ Circuit CDC33 (VT/GN) open or short to ground
^ Ignition switch
^ BJB

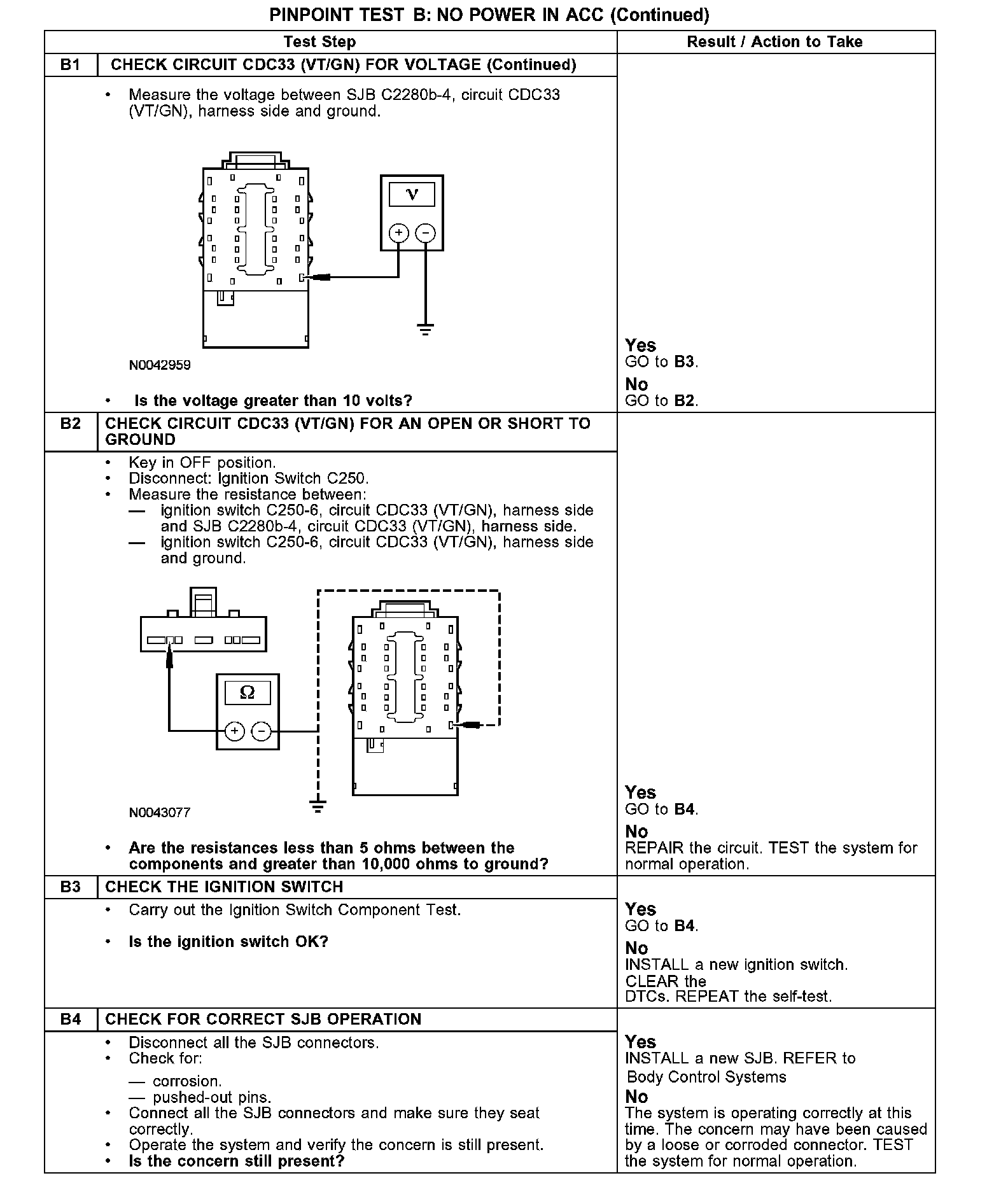

B1:
B1-B4:
