Knock Sensor: Service and Repair

KNOCK SENSOR (KS)







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the intake manifold.

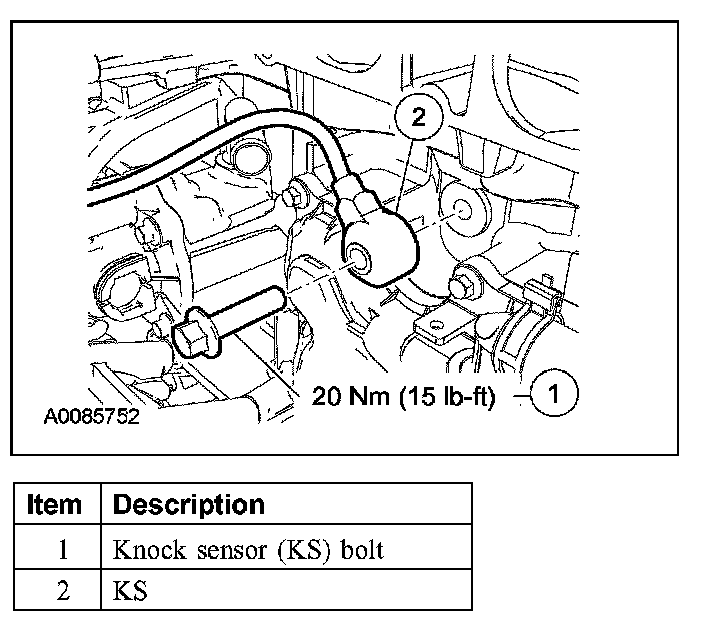

4. Remove the bolt and the knock sensor.
- To install, tighten to 20 Nm (15 lb-ft).

5. To install, reverse the removal procedure.
