Test G: The Illuminated Entry Is Inoperative When Using the Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST G: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

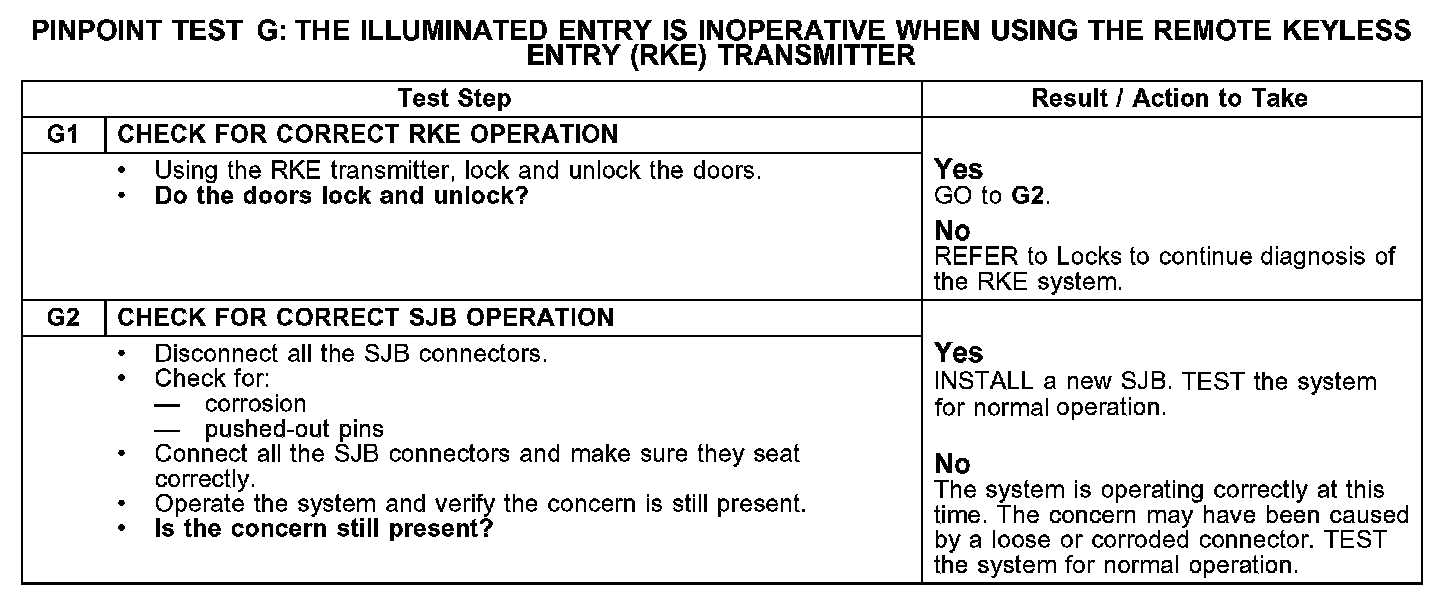

G1-G2:

Normal Operation
The illuminated entry provides interior lighting whenever the smart junction box (SJB) receives a doors unlock request from the RKE transmitter. The SJB provides voltage on circuit CLN26 (BU) for the courtesy lamps.

Possible Causes
- RKE system
- SJB
