Test K: The Luggage Compartment Lid Is Inoperative Using the Remote Keyless Entry (RKE) Transmitter

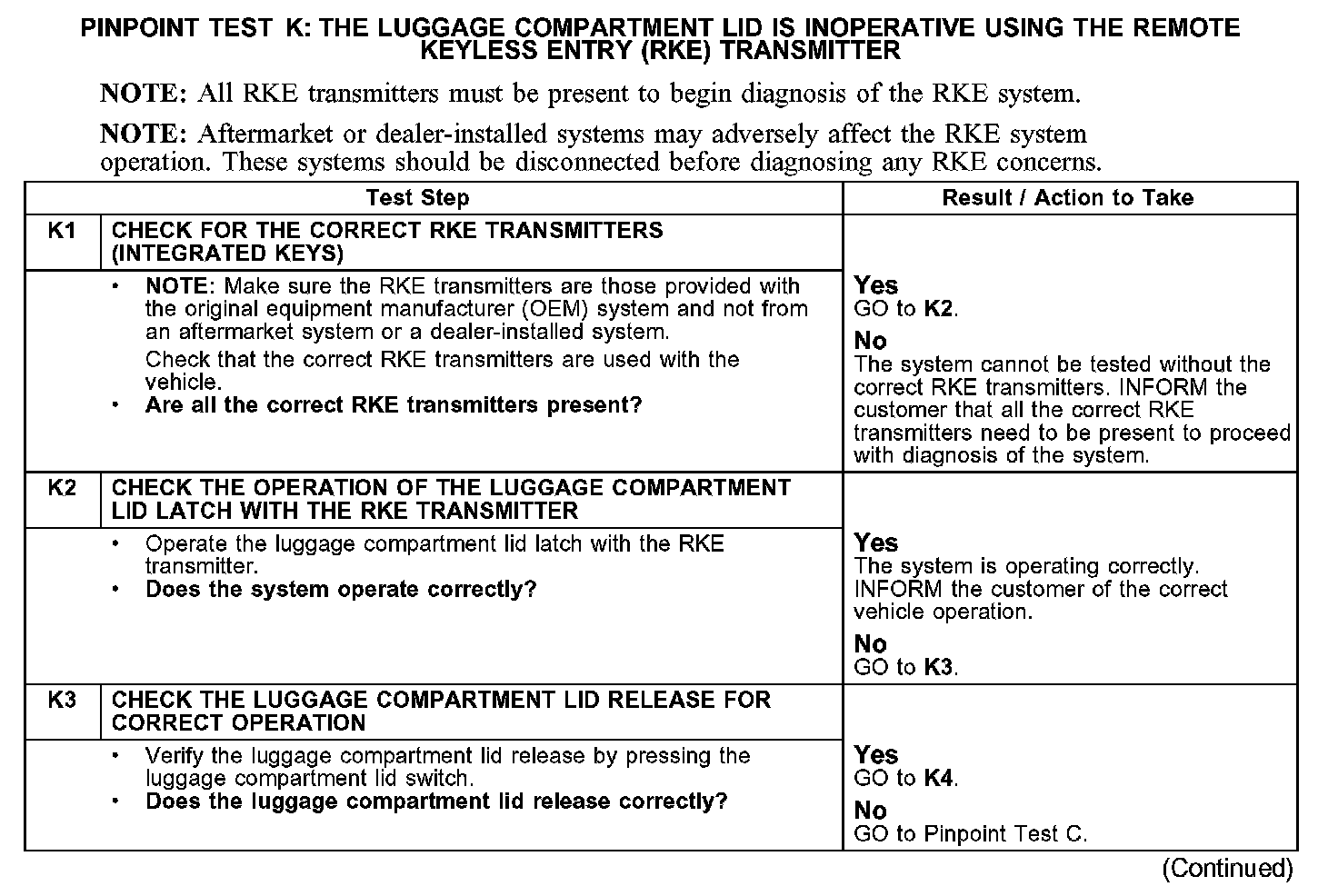

PINPOINT TEST K: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTERK1-K3:

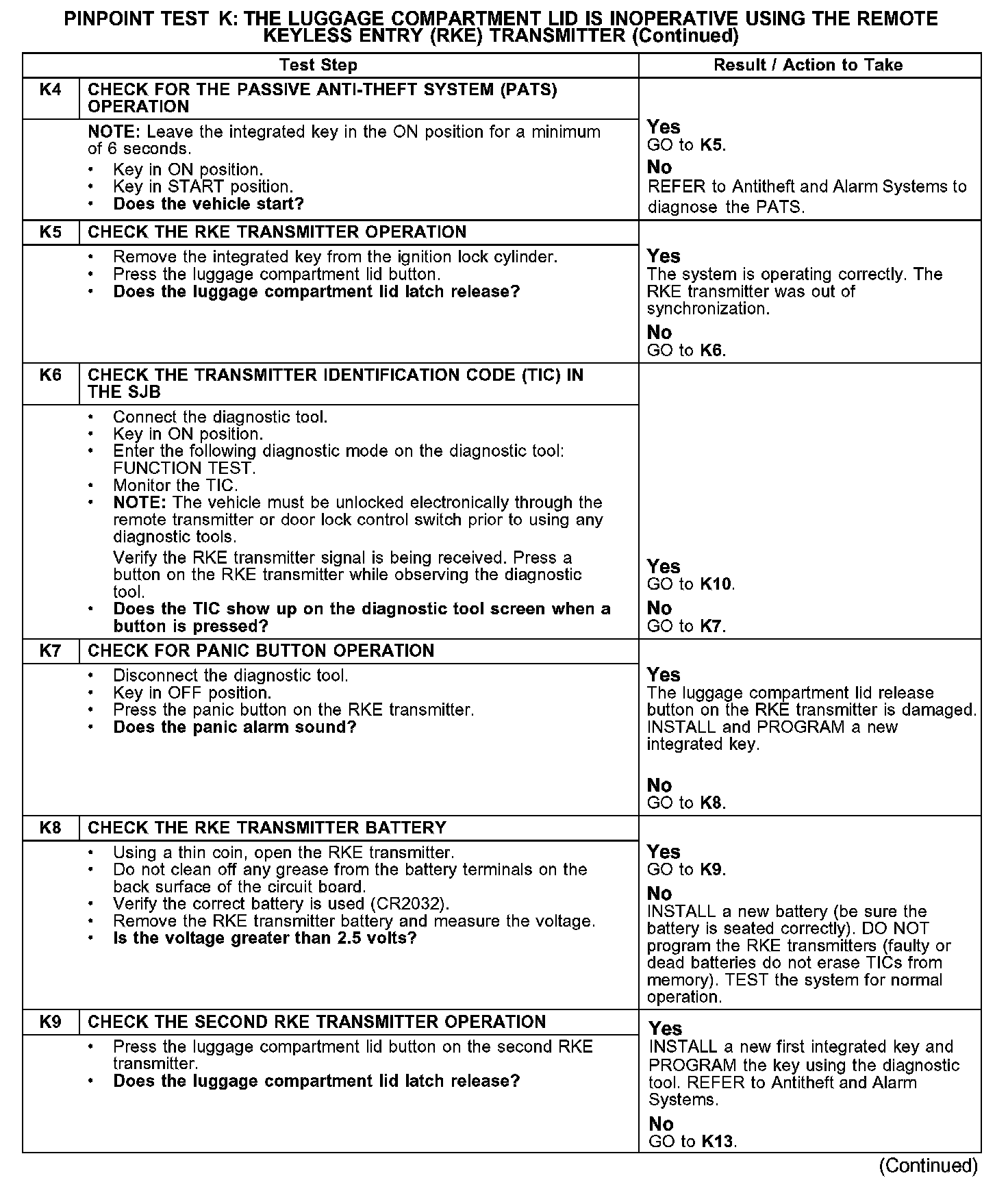

K4-K9:

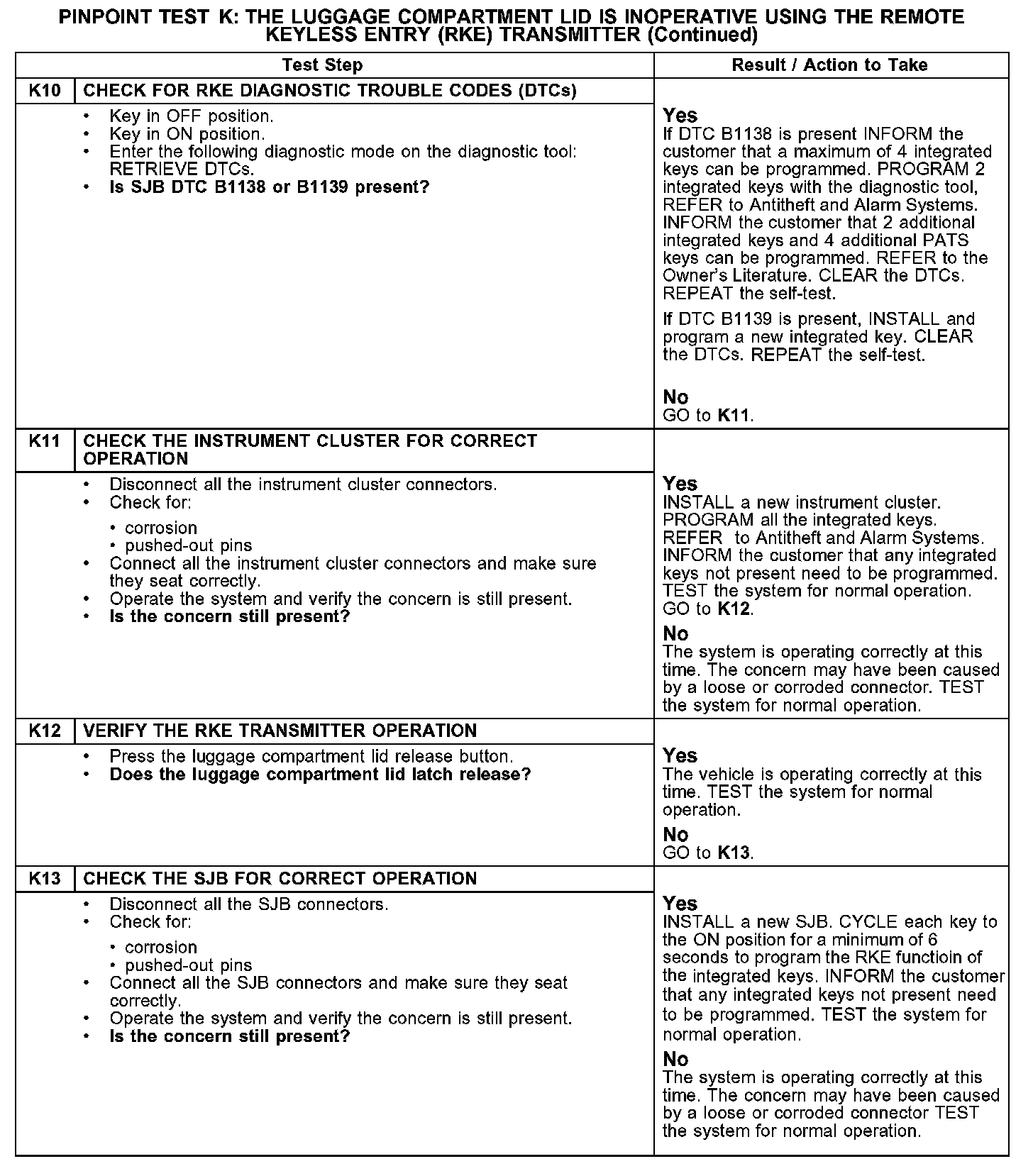

K10-K13:
Normal Operation
Pressing the RKE transmitter's luggage compartment lid release button (located in the integrated key) signals the smart junction box (SJB) to apply a voltage signal to the luggage compartment lid latch.
All RKE transmitters must be present to begin diagnosis of the RKE system.
Aftermarket or dealer-installed systems may adversely affect the RKE operation. These systems should be disconnected before diagnosing the RKE concerns.
Possible Causes
- RKE transmitter
- SJB
