Alarm System Transponder: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER







Removal and Installation

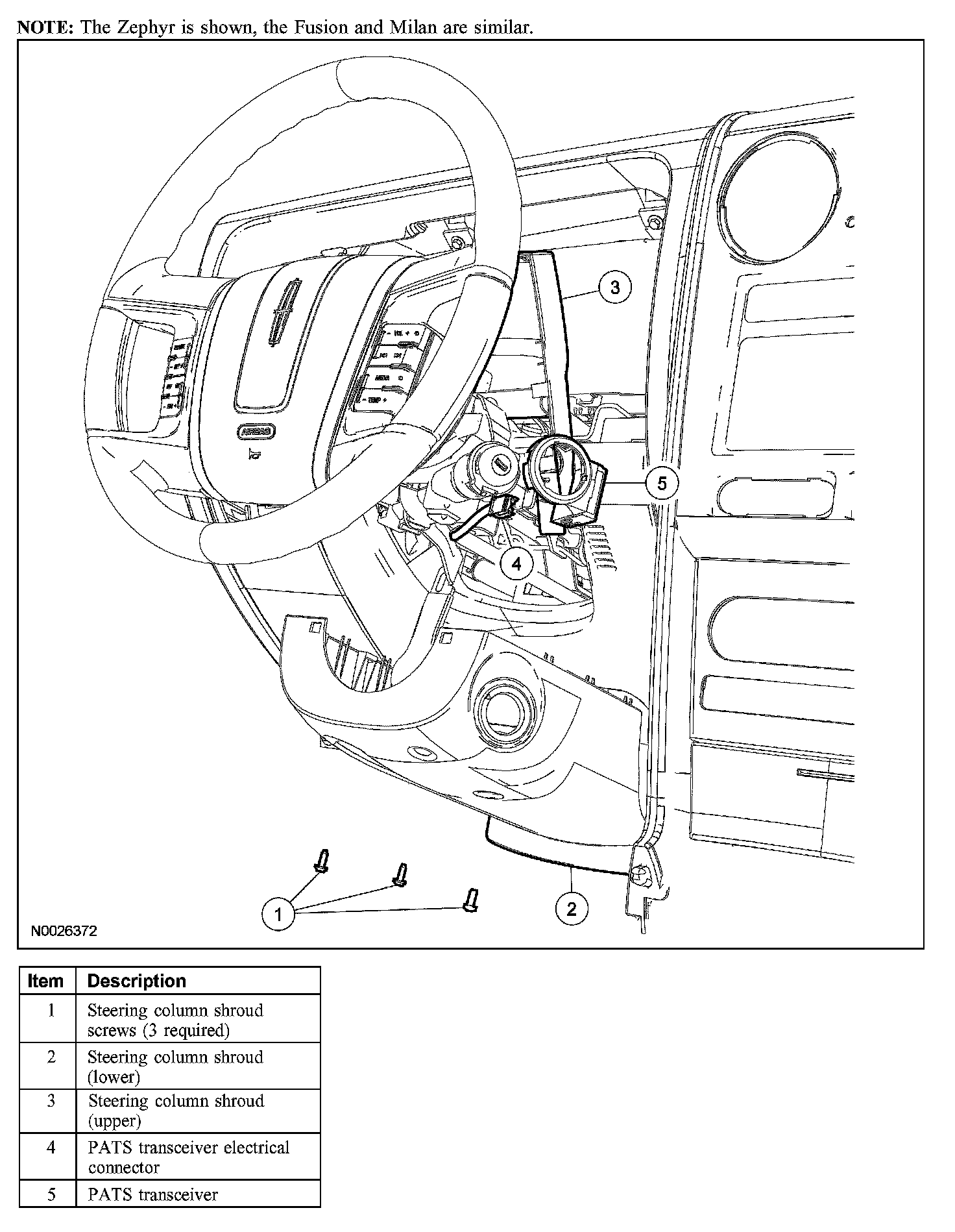

1. Remove the 3 screws and the lower steering column shroud.
2. Position the upper steering column shroud aside.
3. Disconnect the electrical connector and remove the PATS transceiver.

4. NOTE: No key replacement or re-initialization needs to occur with the removal or installation of a new PATS transceiver.

To install, reverse the removal procedure.
