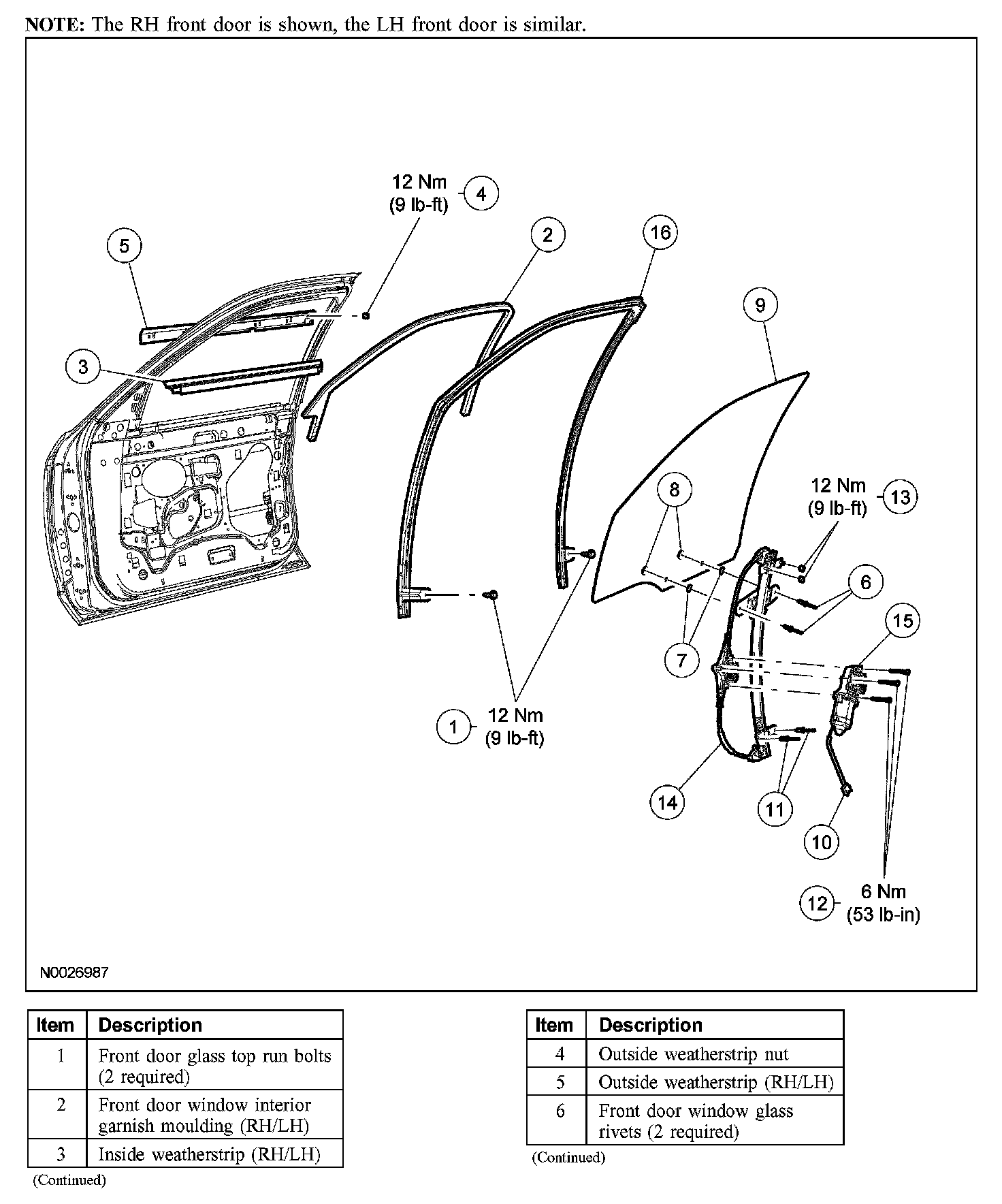

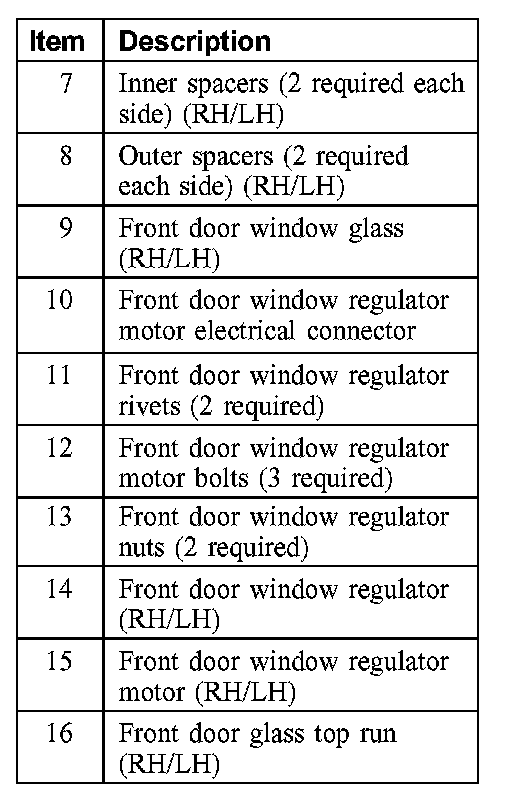

Front Door Glass, Frames and Mechanisms - Exploded View

FRONT DOOR GLASS, FRAMES AND MECHANISMS - EXPLODED VIEW

Part 1:

Part 2:

Removal and Installation
1. For additional information, refer to the procedures.
