Home >> Mercury >> 2006 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection >> Driveline System >> Diagnosis By Symptom

Diagnosis By Symptom

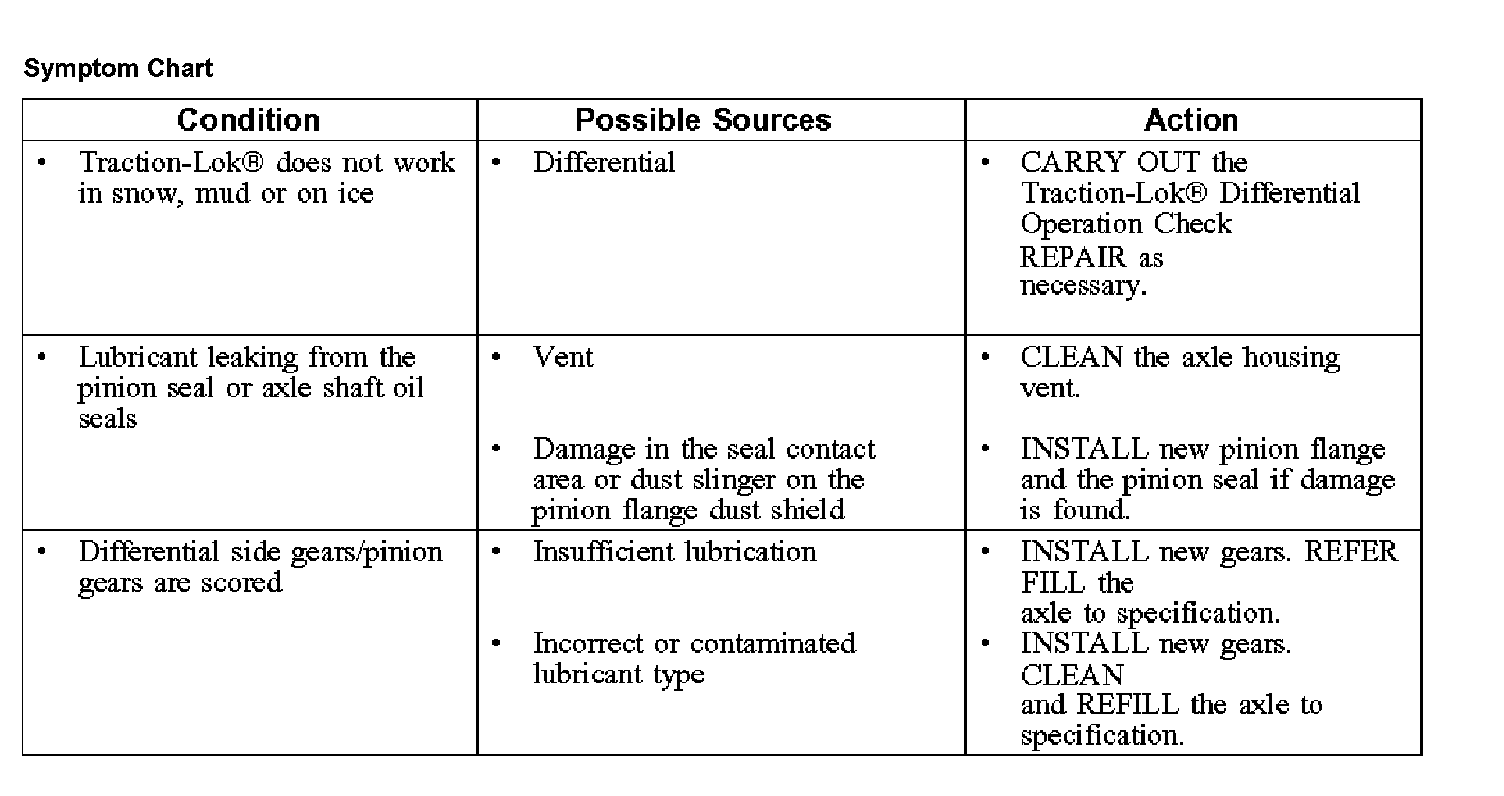

Symptom Chart (Part 1):

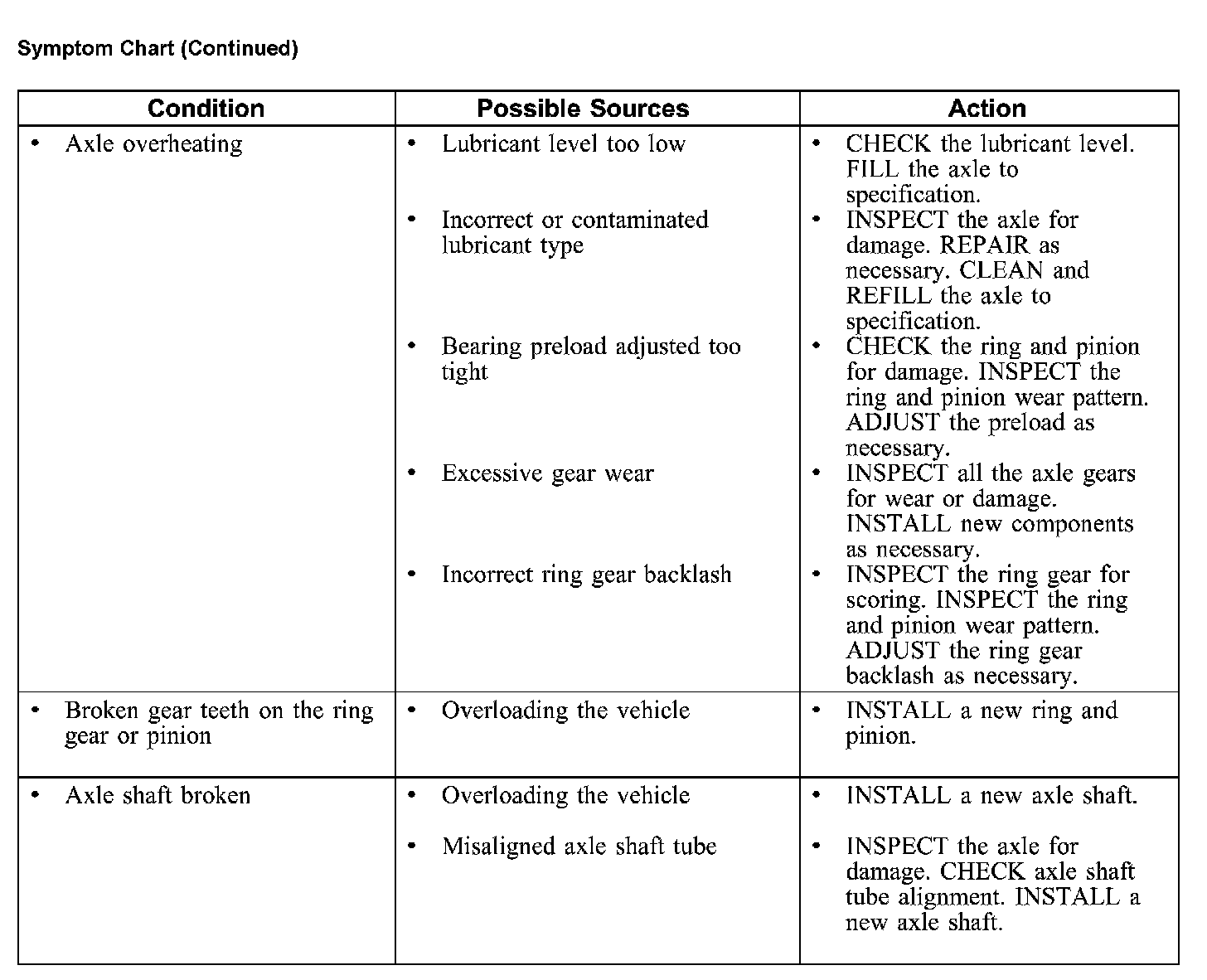

Symptom Chart (Part 2):
