Transmission Insulator and Retainer

Transmission Insulator and Retainer





Removal

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

Remove the transmission support crossmember.

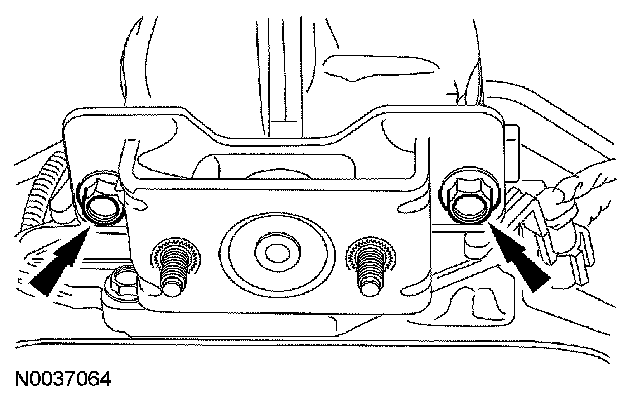

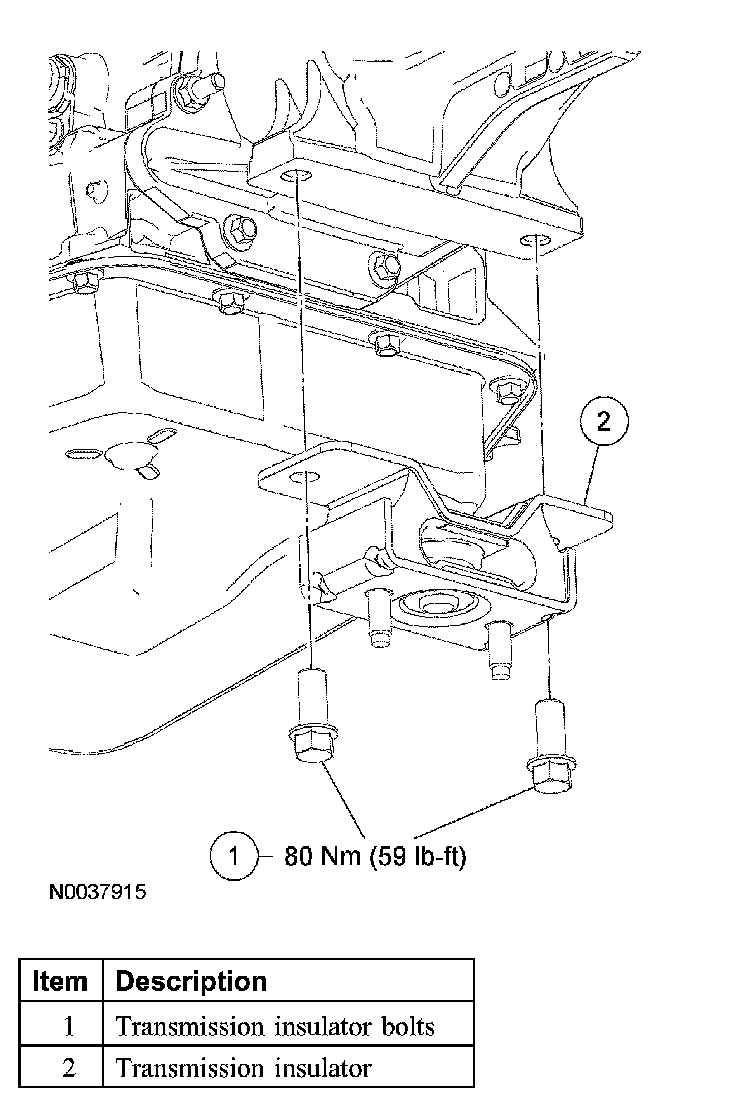

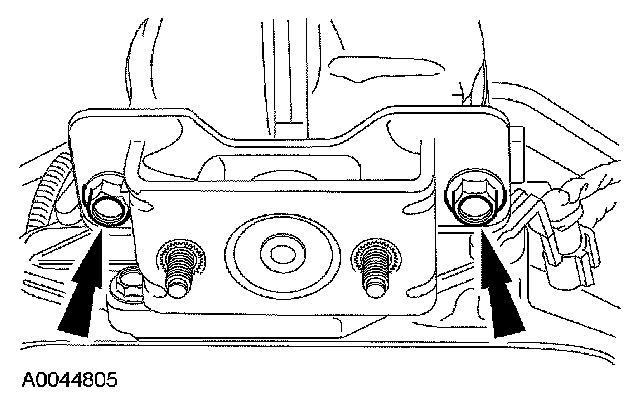

2. Remove the transmission support insulator.





3. To install, reverse the removal procedure.
^ Tighten to 80 Nm (59 ft. lbs.).

4. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

If equipped with fire suppression system, repower the system.
