Test H: The Transmission Control (TC) Switch Does Not Operate Correctly - Floor Shift
Test H: The Transmission Control (TC) Switch Does Not Operate Correctly - Floor Shift
Pinpoint Test H: The Transmission Control (TC) Switch Does Not Operate Correctly - Floor Shift

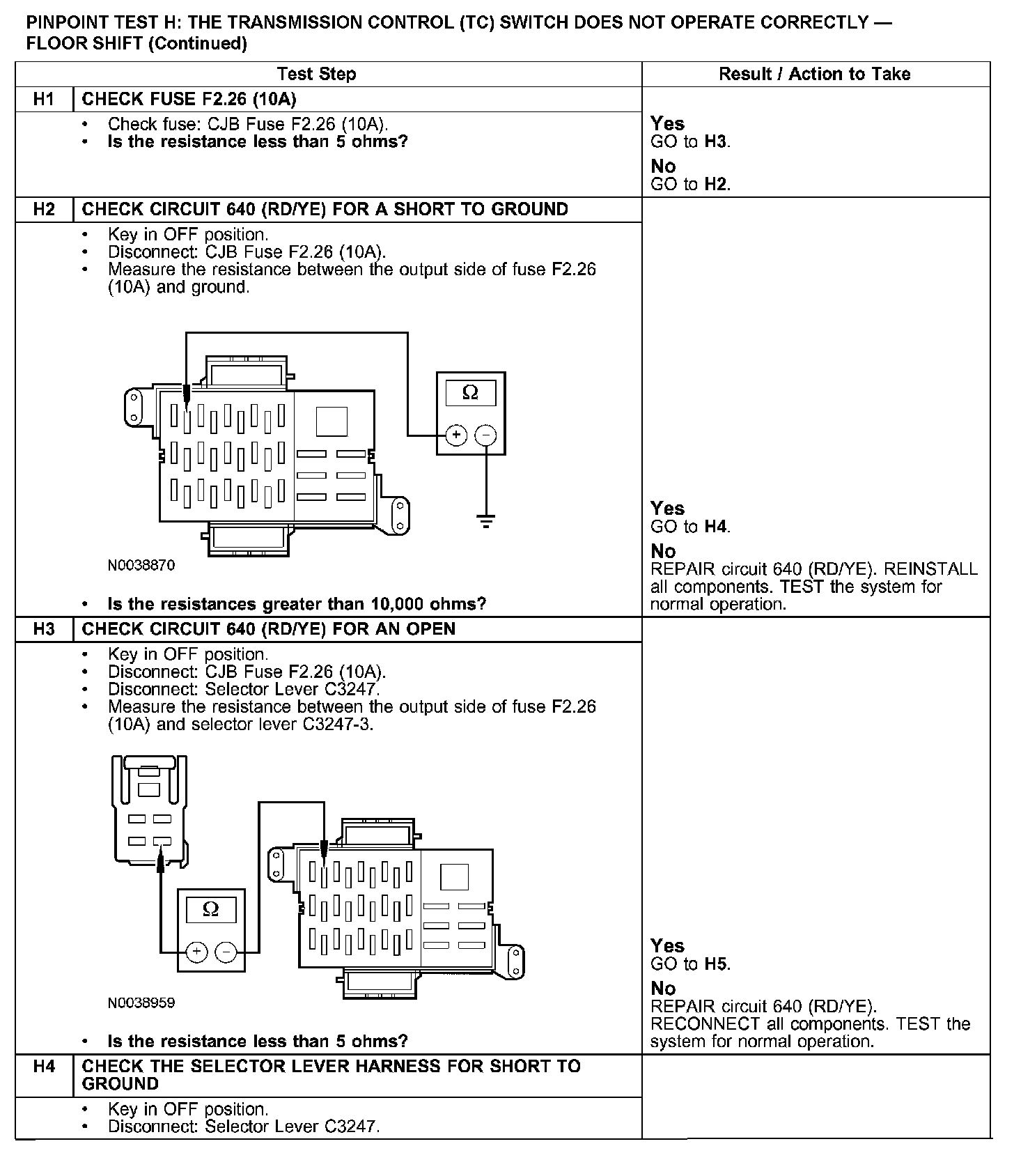

H1-H4:

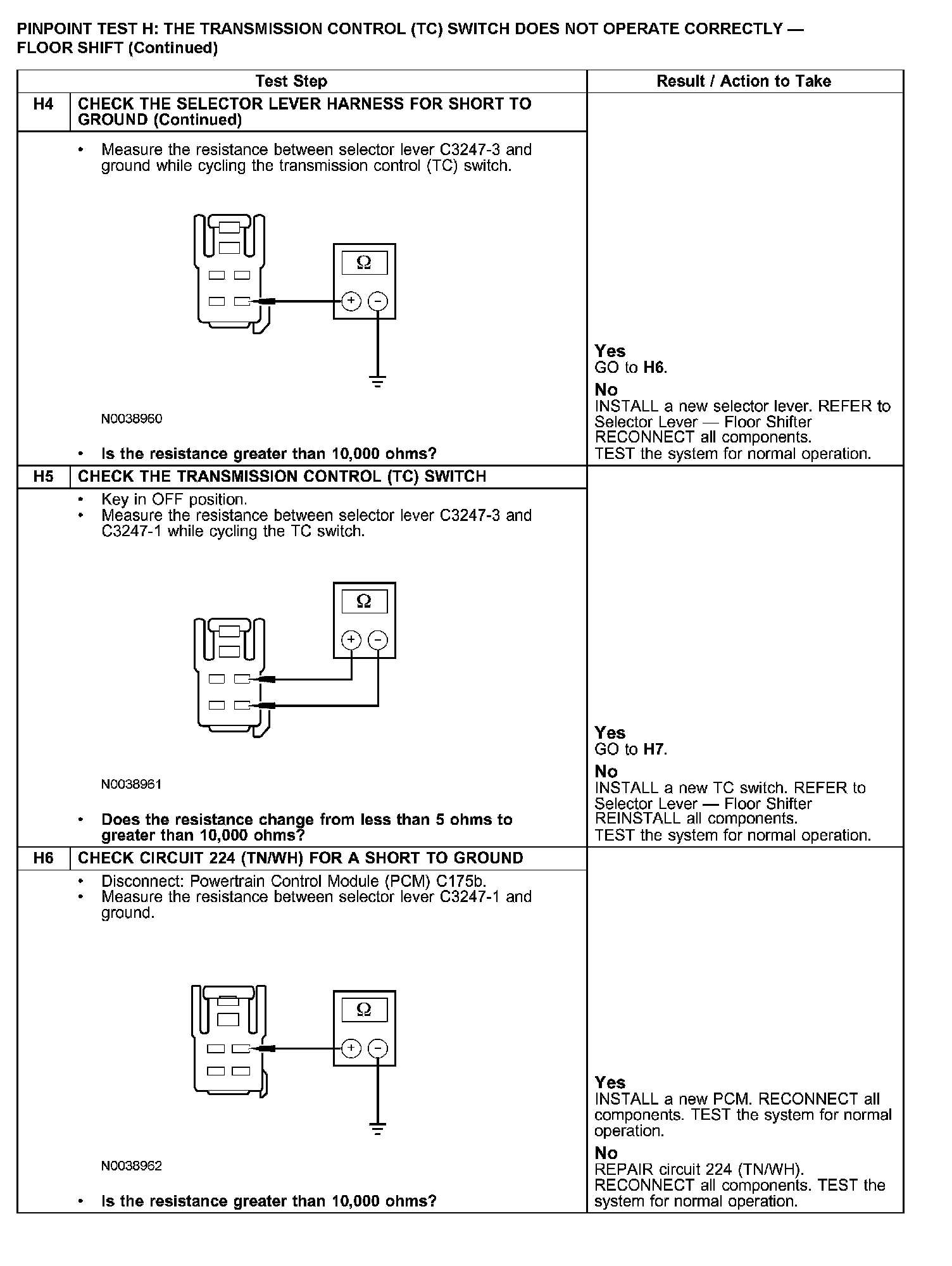

H4-H6:

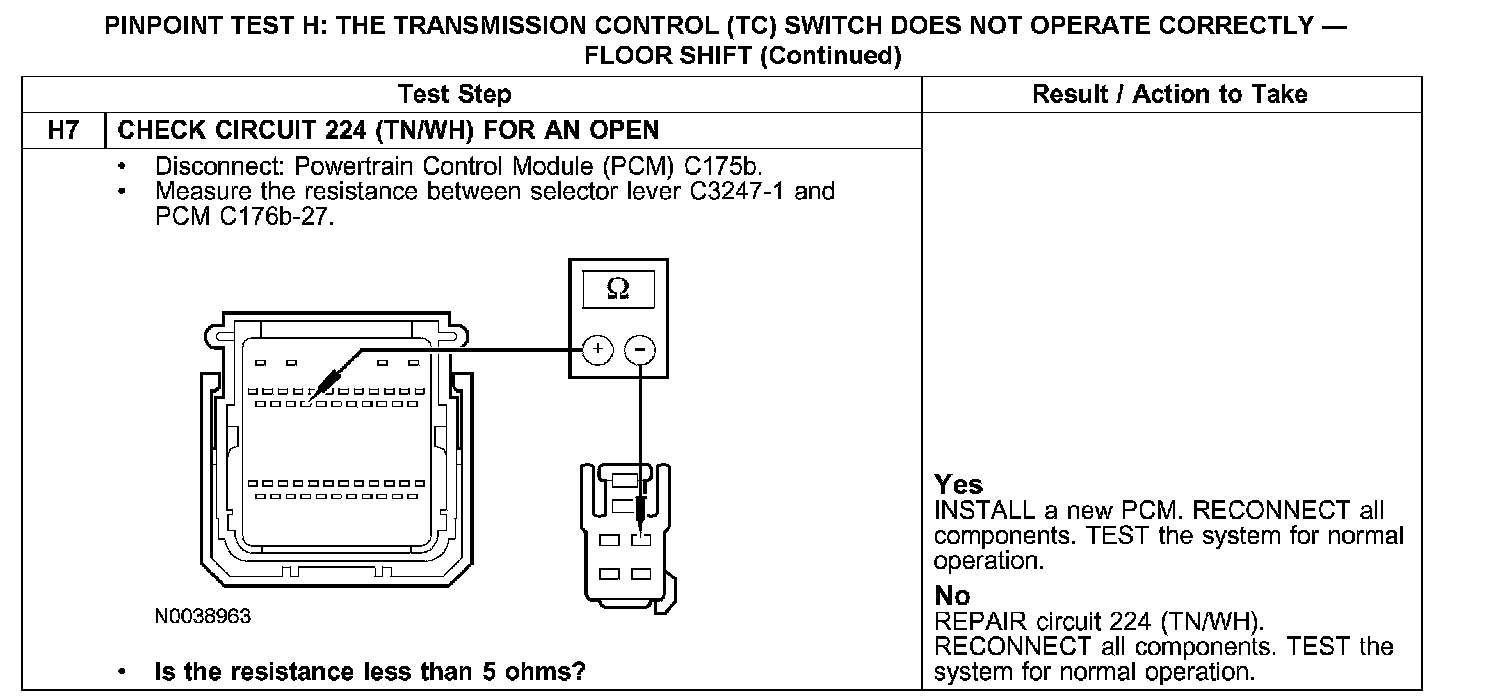

H7:
