FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2006
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - External Controls
>>
Test A: The Shift Interlock System Does Not Release/Lock Correctly - Column Shift
Test A: The Shift Interlock System Does Not Release/Lock Correctly - Column Shift
Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly - Column Shift

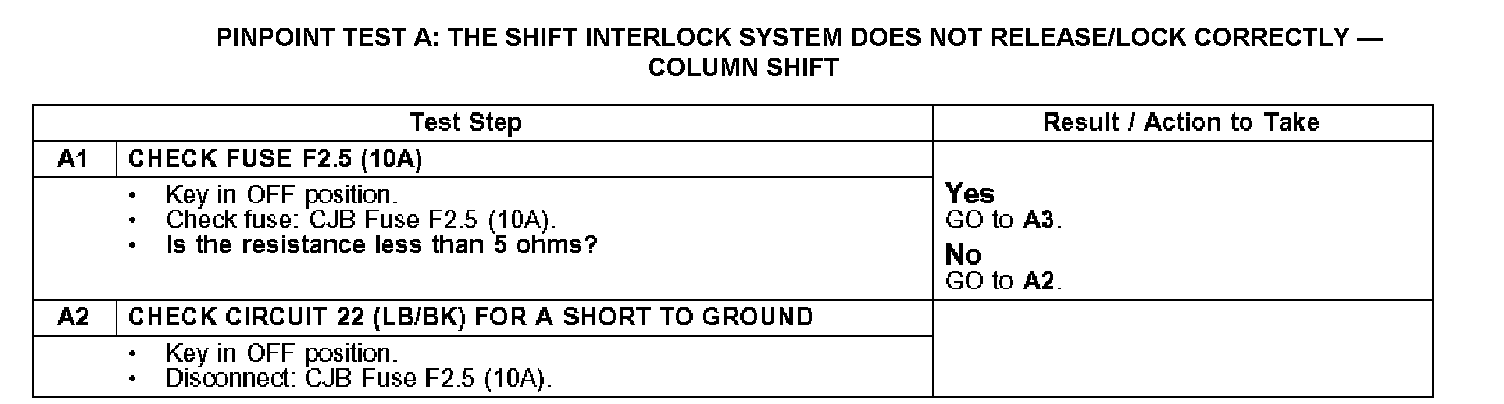

A1-A2:

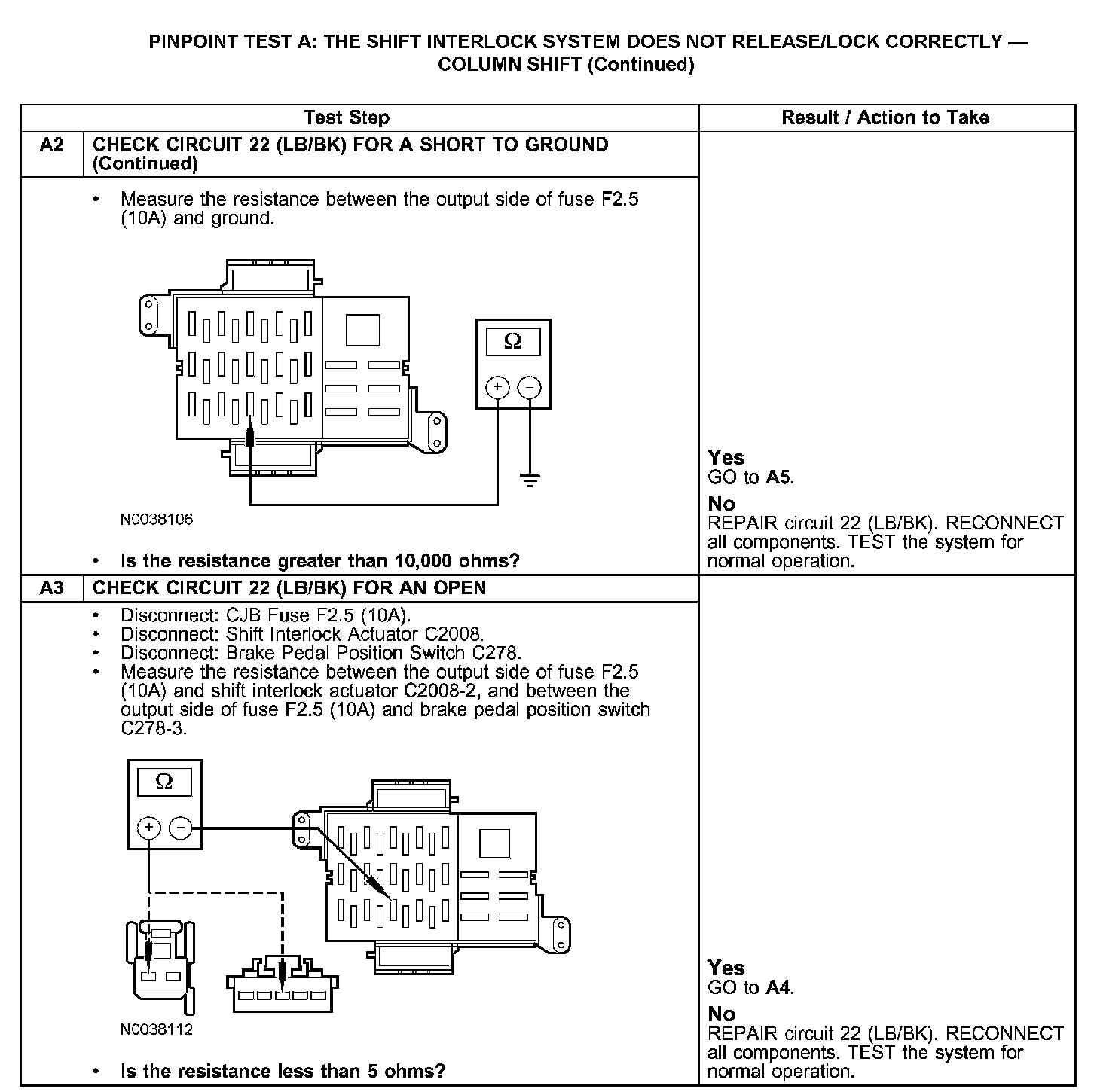

A2-A3:
A4-A6:

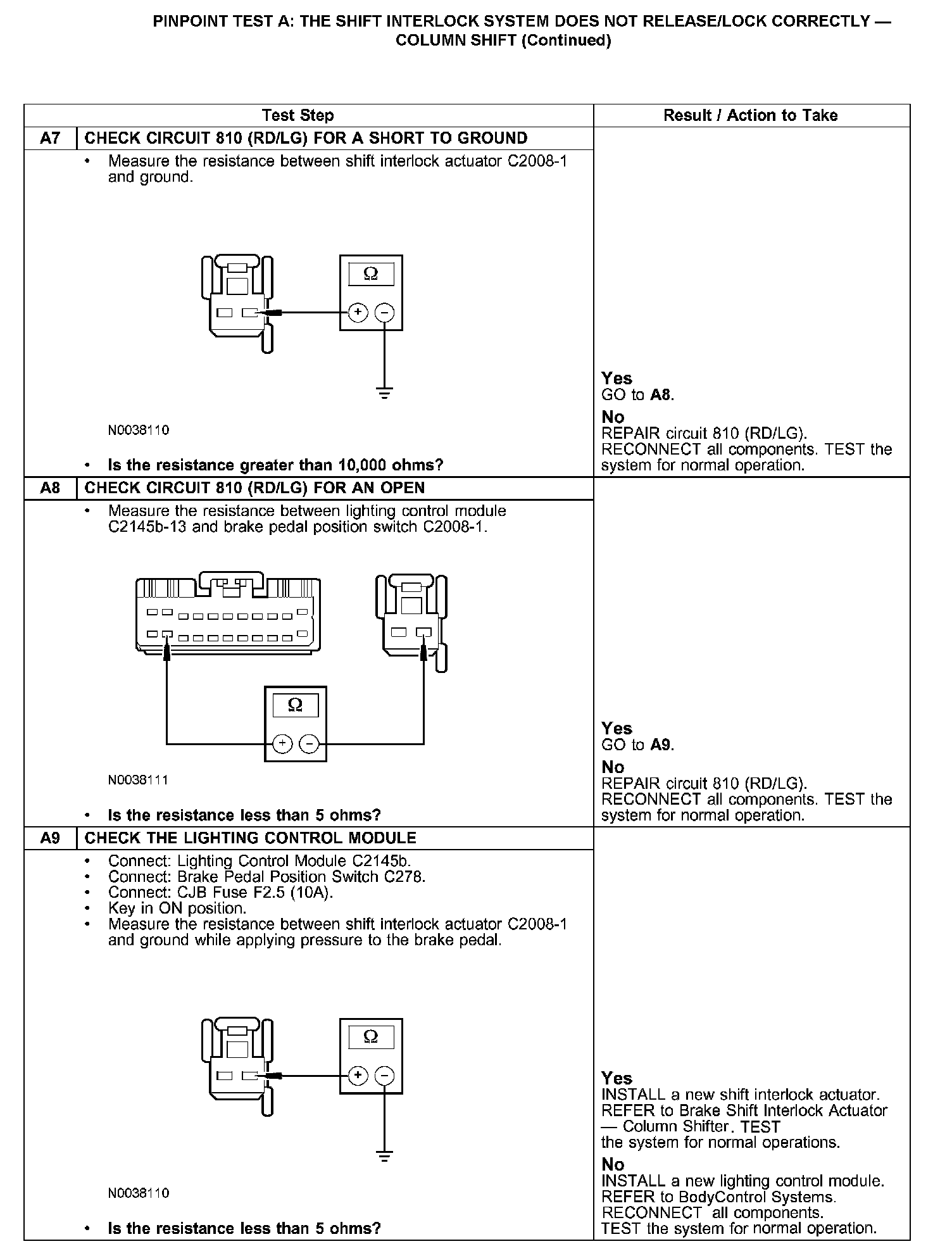

A7-A9:
