Lower Arm
Lower ArmRemoval and Installation
CAUTION: Suspension fasteners are critical parts because they effect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
1. WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations. Failure to follow these instructions may result in personal injury.
If equipped, turn the air suspension service switch to the OFF position.
2. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
3. NOTE: Use the holding feature to prevent the stud from turning while removing the nut.

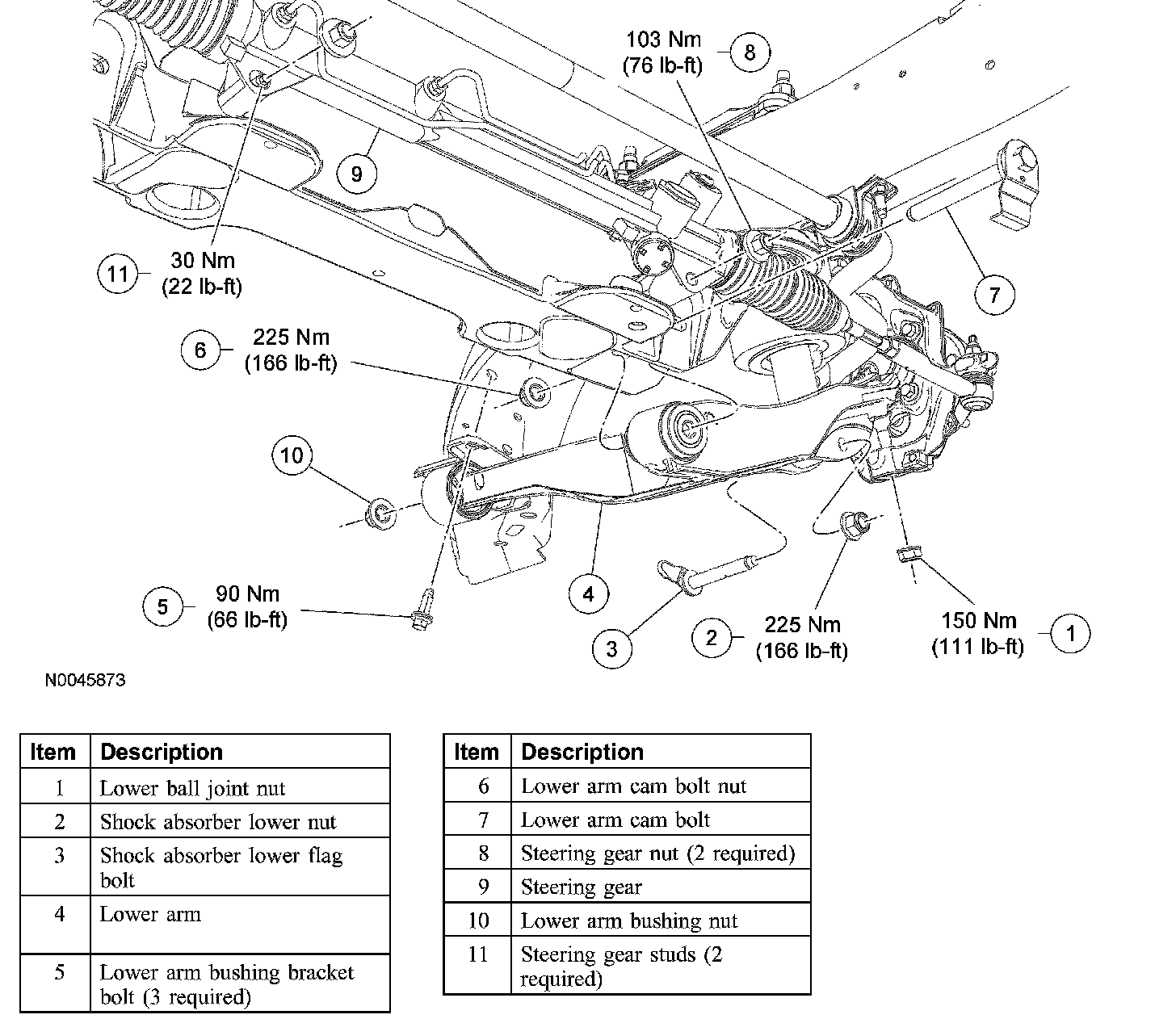

Remove and discard the lower ball joint nut.
^ To install, tighten to 150 Nm (111 ft. lbs.).
4. Remove the shock absorber lower nut and the flag bolt.
^ Discard the nut and bolt.
^ To install, tighten to 225 Nm (166 ft. lbs.).
5. CAUTION: Do not remove the cam bolt at this time or damage to the steering bellows boot w111 result.
Remove the lower control arm cam bolt nut.
^ Discard the nut.
^ To install, tighten to 225 Nm (166 ft. lbs.).
6. Remove and discard the 3 lower arm bushing bracket bolts.
^ To install, tighten to 90 Nm (66 ft. lbs.).
7. Remove and discard the 2 steering gear nuts.
^ To install, tighten to 103 Nm (76 ft. lbs.).
8. Remove the power steering rack studs and move the steering gear upward to access the cam bolt.
^ To install, tighten to 30 Nm (22 ft. lbs.).
9. Remove the cam bolt and the lower arm.
10. NOTE: Snug the lower arm cam nuts and bolts, rear bushing nut and the shock absorber lower nut and flag bolt. Do not tighten until the installation procedure is complete and the weight of the vehicle is resting on the wheel and tire assemblies.
To install, reverse the removal procedure.

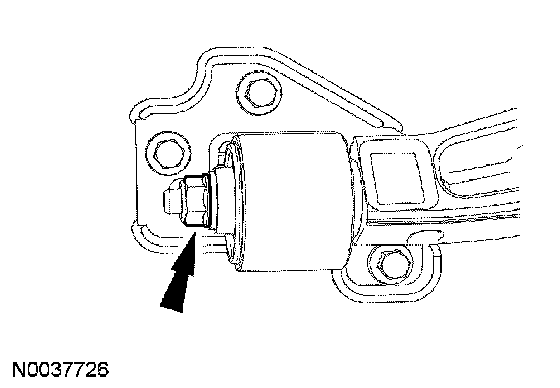

11. If a new lower control arm is being installed, tighten the bushing retaining nut.
^ To install, for vehicles with cast aluminum arm, tighten to 200 Nm (148 ft. lbs.).
^ To install, for vehicles with stamped steel arm, tighten to 175 Nm (128 ft. lbs.).
12. Check and if necessary, align the front end.
13. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.
If equipped with fire suppression system, repower the system.
