Test E: The Ignition Key Is Hard to Turn

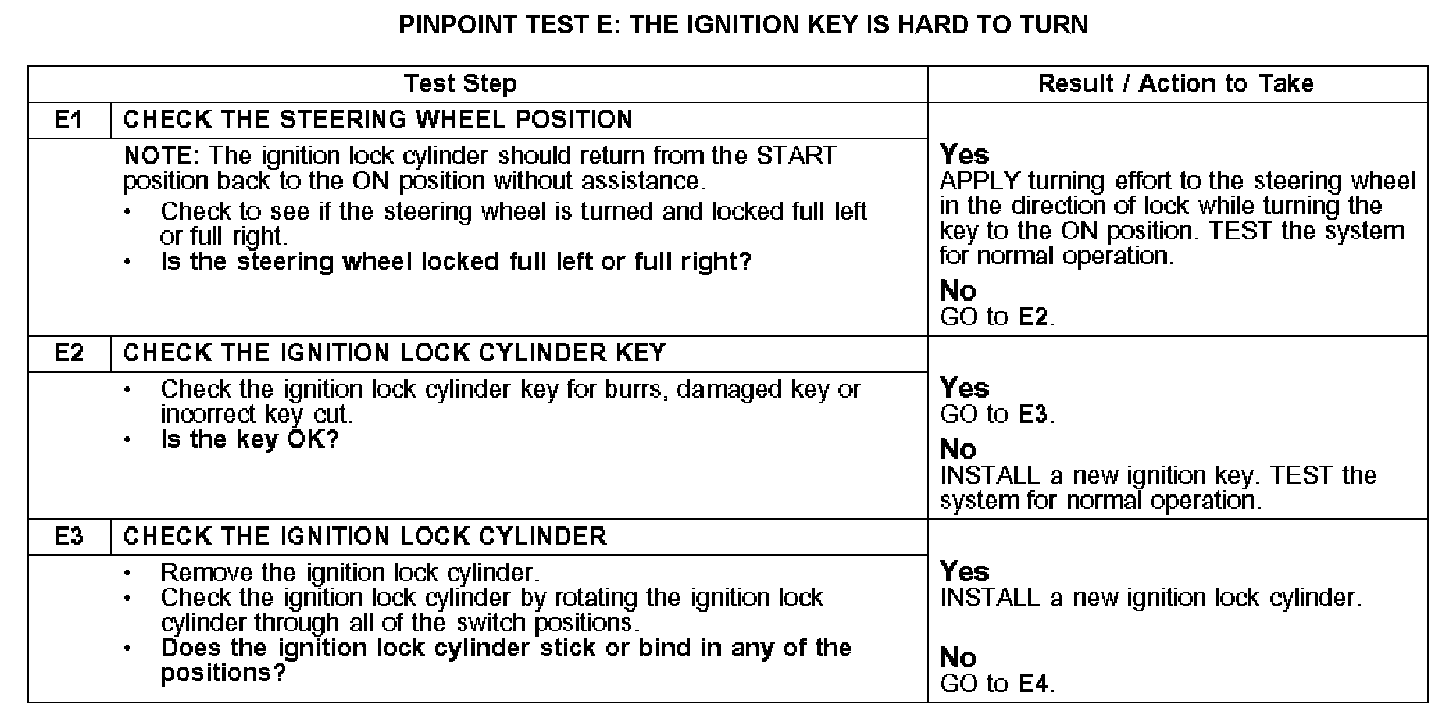

Pinpoint Test E: The Ignition Key Is Hard To Turn

Normal Operation
The ignition lock cylinder is the mechanical link to the ignition switch.

Possible Causes
^ Ignition switch
^ Ignition key
^ Ignition lock cylinder

E1-E3:




E4:
