Test E: The Charging System Warning Indicator is Off With the Ignition Switch in the RUN Position and the Engine Off

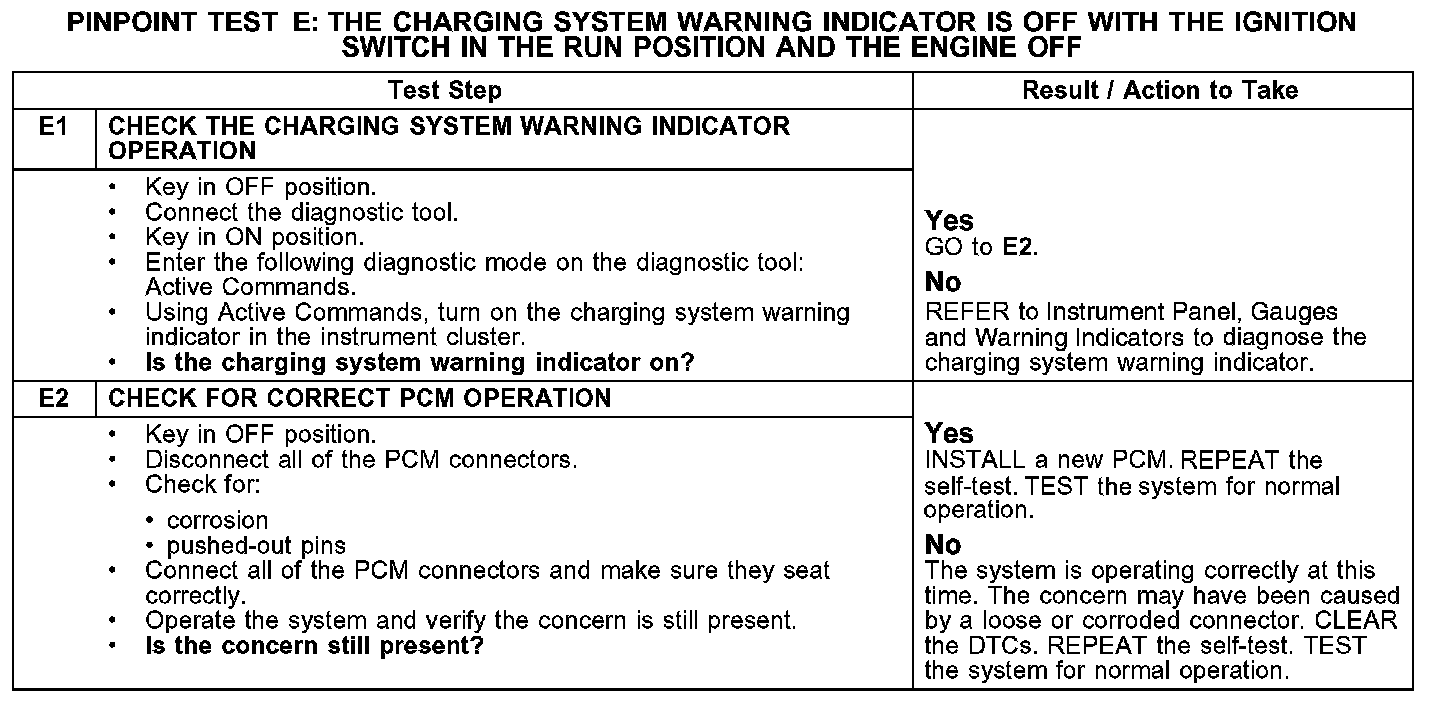

PINPOINT TEST E: THE CHARGING SYSTEM WARNING INDICATOR IS OFF WITH THE IGNITION SWITCH IN THE RUN POSITION AND THE ENGINE OFF

E1-E2:

Normal Operation
Under normal operation, the charging system warning indicator is on with the key ON and the engine off.

Possible Causes
- instrument cluster
- powertrain control module (PCM)
