Turn Signal Switch: Service and Repair

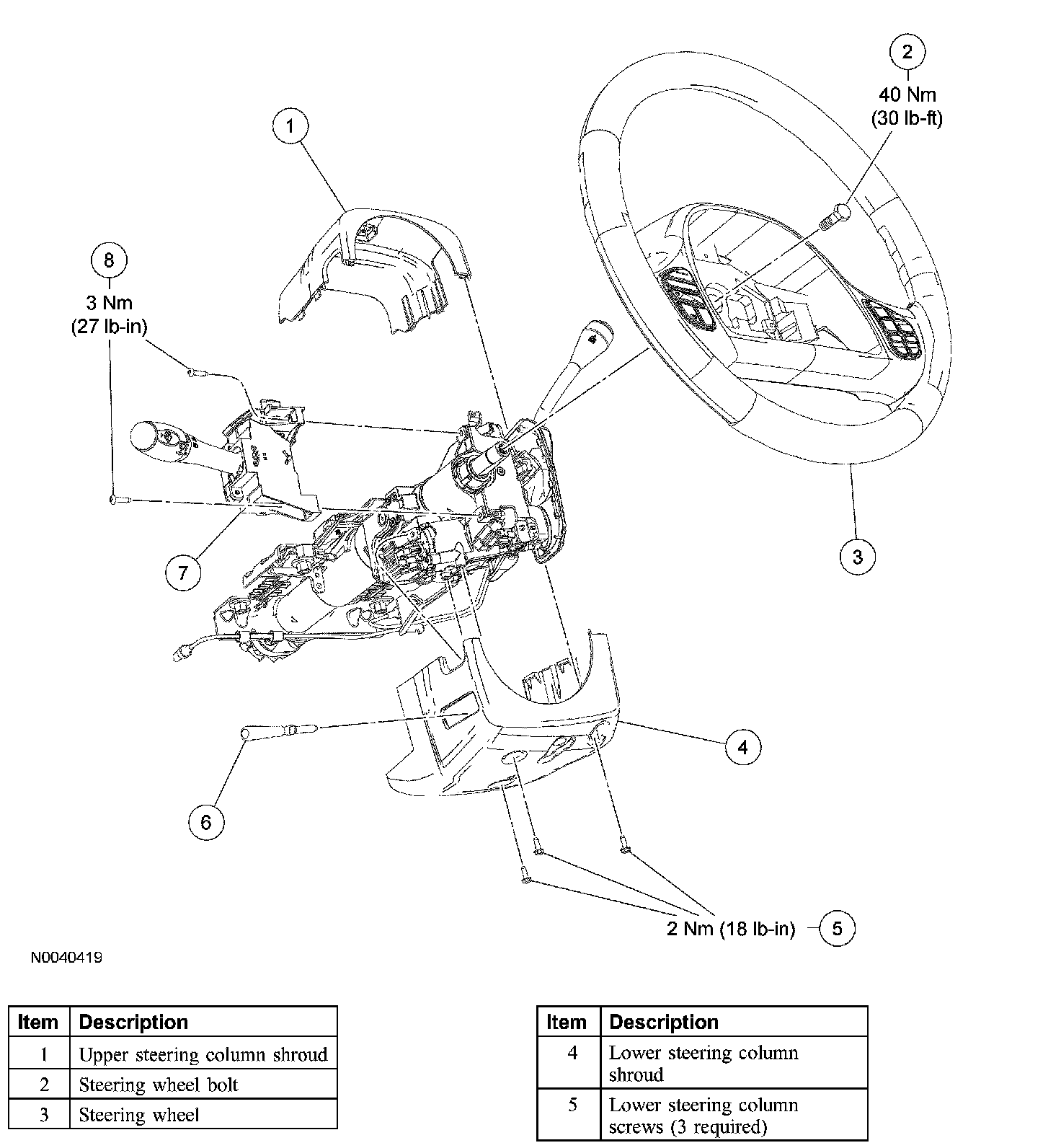

Steering Column Multifunction Switch








Removal and Installation
1. Depower the supplemental restraint system (SRS). For additional information, refer to Air Bag Systems.

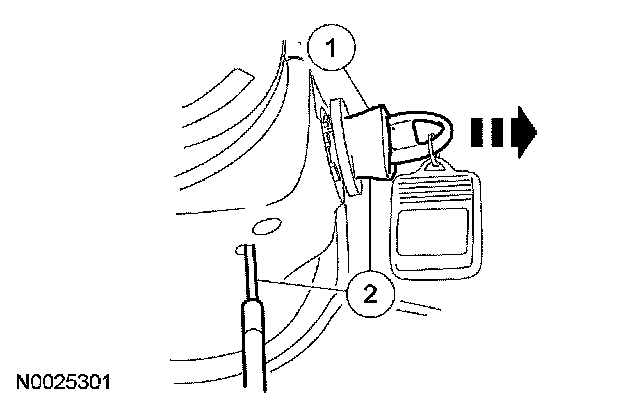

2. Remove the ignition switch lock cylinder.
1 Position the ignition switch lock cylinder to the RUN position.
2 Using a suitable tool, push upward on the cylinder release tab while pulling the ignition switch lock cylinder outward.

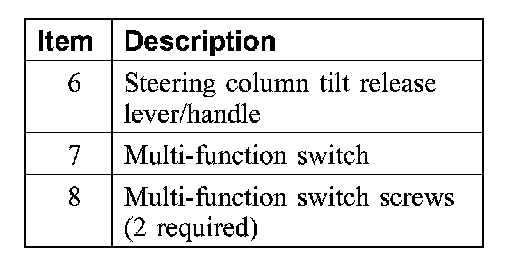

3. Remove the tilt release lever/handle.

4. NOTE: Release the upper steering column shroud by pressing the sides inward.

Remove the 3 screws and the upper and lower steering column shrouds.
^ To install, tighten to 2 Nm (18 inch lbs.).

5. Disconnect the 3 multi-function switch electrical connectors.
6. Remove the 2 screws and the multi-function switch.
^ To install, tighten to 3 Nm (27 inch lbs.).

7. To install, reverse the removal procedure.
^ Repower the SRS. For additional information, refer to Air Bag Systems.
