Brake Light Switch: Service and Repair

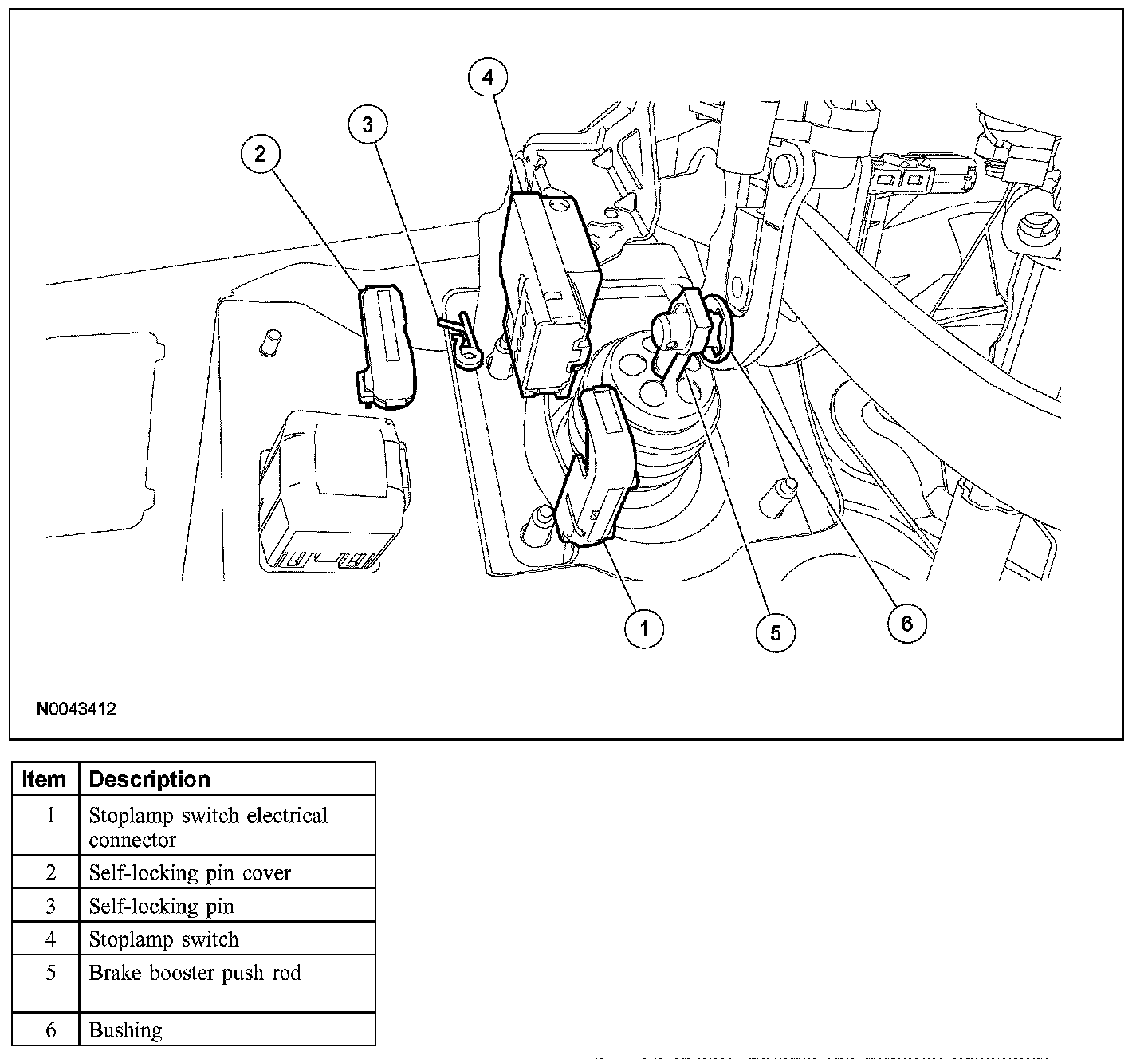

STOPLAMP SWITCH







Removal and Installation
1. Disconnect the stoplamp switch electrical connector.
2. Remove the cover and the self-locking pin.
3. Remove the stoplamp switch from the brake booster push rod and brake pedal.
4. To install, reverse the removal procedure.
