Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE TEMPERATURE SENSOR

Removal and Installation

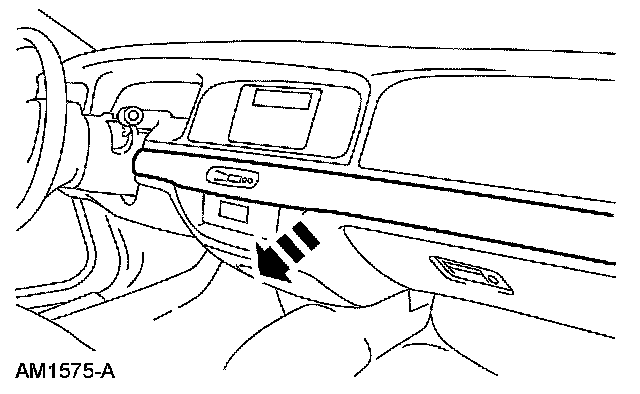

1. Detach the finish panel.

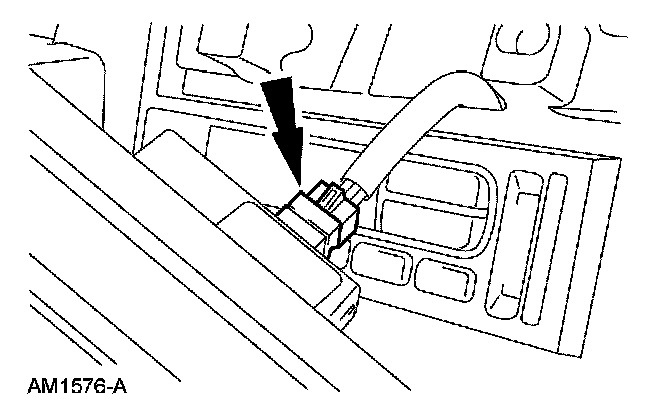

2. Disconnect the electrical connector.

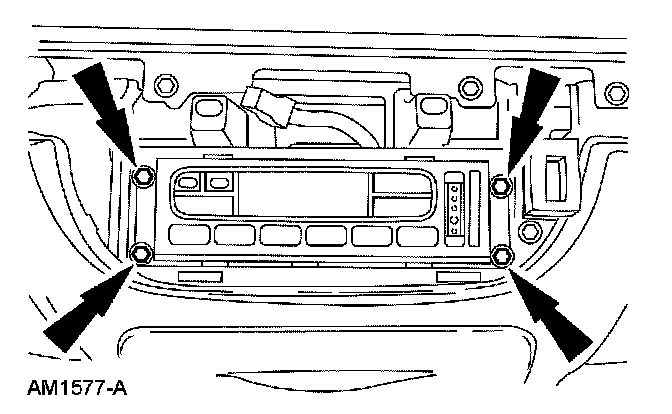

3. Remove the 4 climate control assembly screws and pull the control assembly away from the instrument panel.

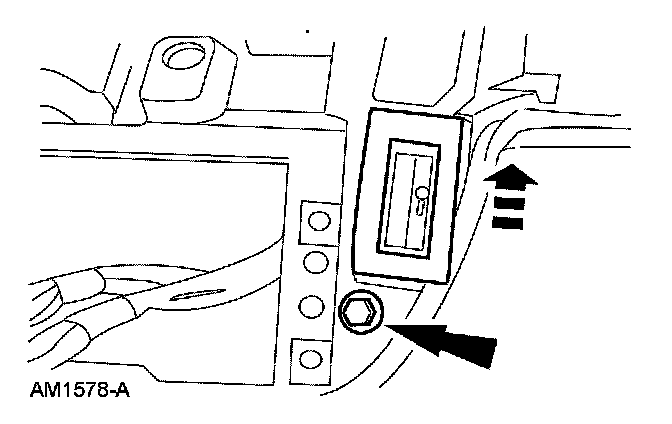

4. Remove the screw and position the in-vehicle temperature sensor to access the electrical connector.

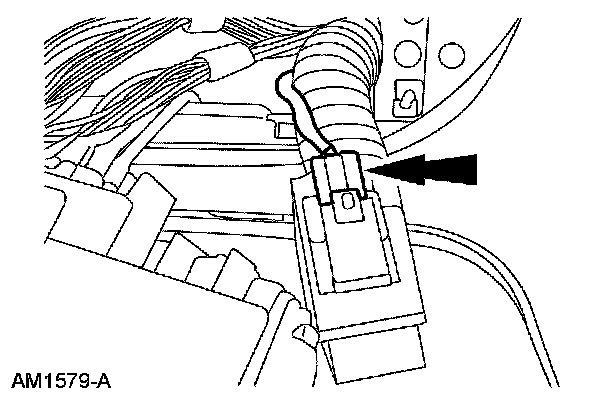

5. Disconnect the connector.

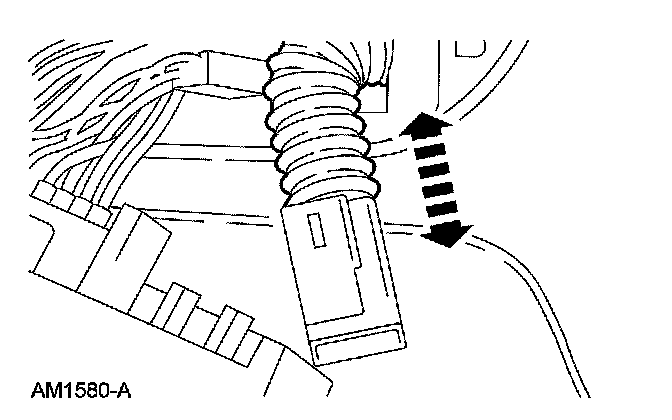

6. Disconnect the aspirator hose and remove the in-vehicle temperature sensor.
7. To install, reverse the removal procedure.
