Blower Motor Speed Control

BLOWER MOTOR SPEED CONTROL

Removal and Installation

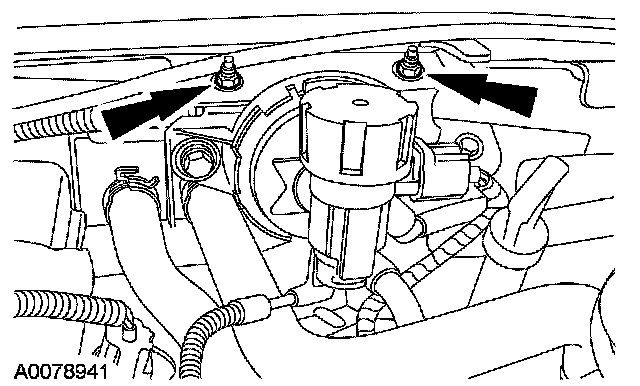

1. Remove the nuts and position the vapor management valve (VMV) aside.







2. Remove the blower motor speed control.
1 Disconnect the blower motor speed control electrical connector.
2 Remove the 2 blower motor speed control screws.
3 Remove the blower motor speed control.

3. To install, reverse the removal procedure.
