Home >> Mercury >> 2006 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Cruise Control Switch >> Diagrams

Cruise Control Switch: Diagrams

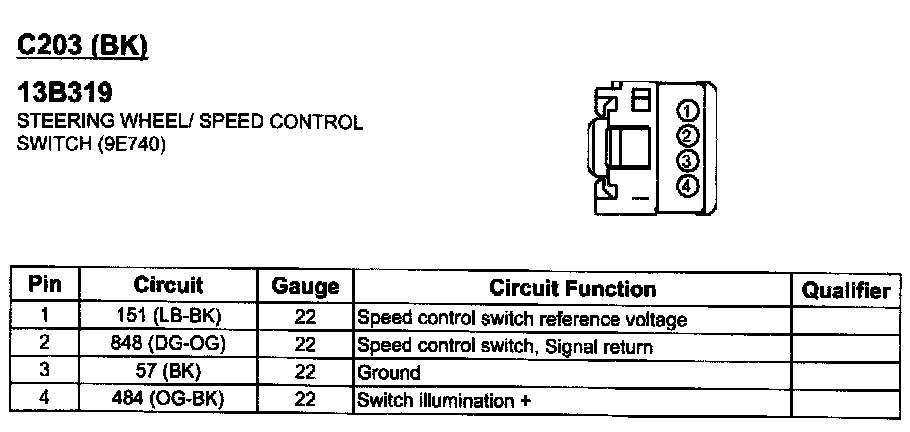

C203:

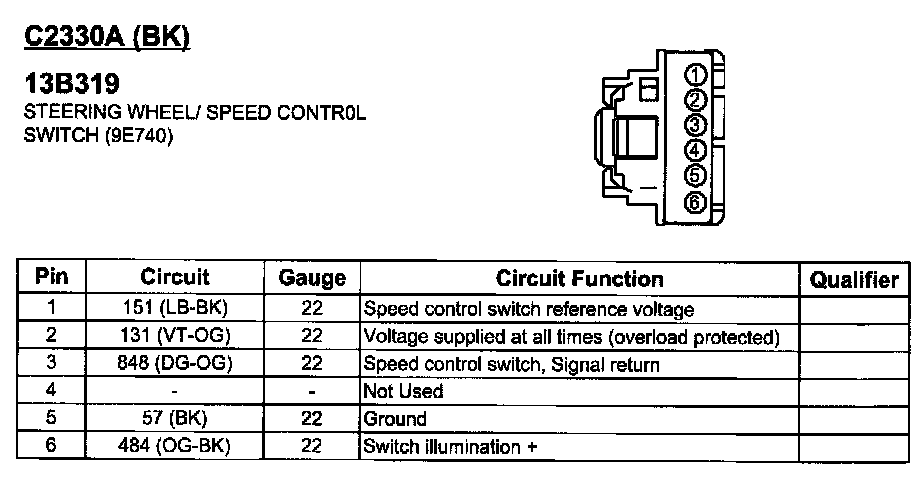

C2330A:

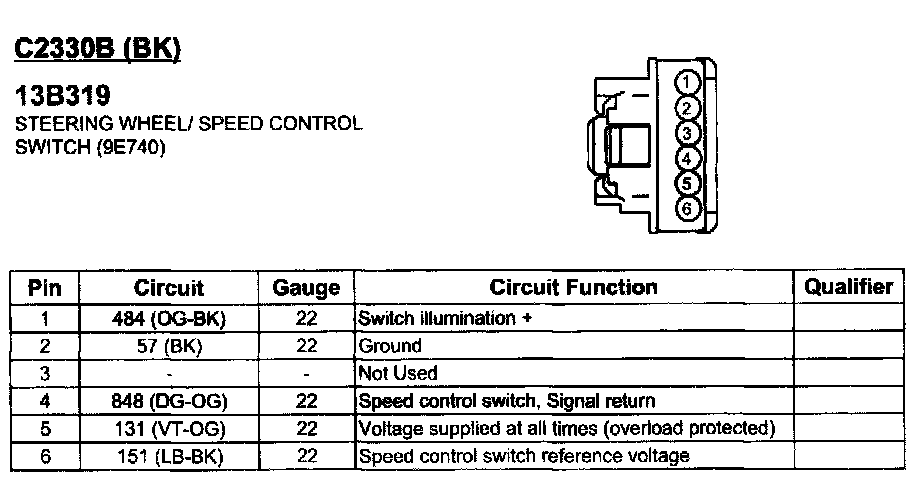

C2330B:
