Brake Switch (Cruise Control): Service and Repair

SPEED CONTROL DEACTIVATOR SWITCH







Removal

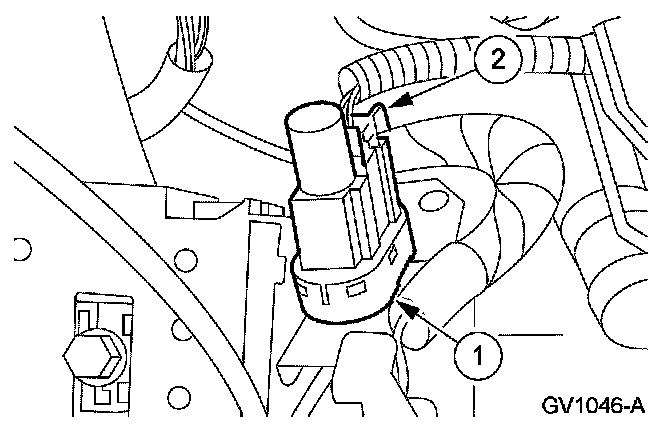

1. Remove the speed control deactivator switch.
1 Rotate counterclockwise and remove the speed control deactivator switch.
2 Disconnect the electrical connector.

Installation
1. Fully apply the brake pedal.

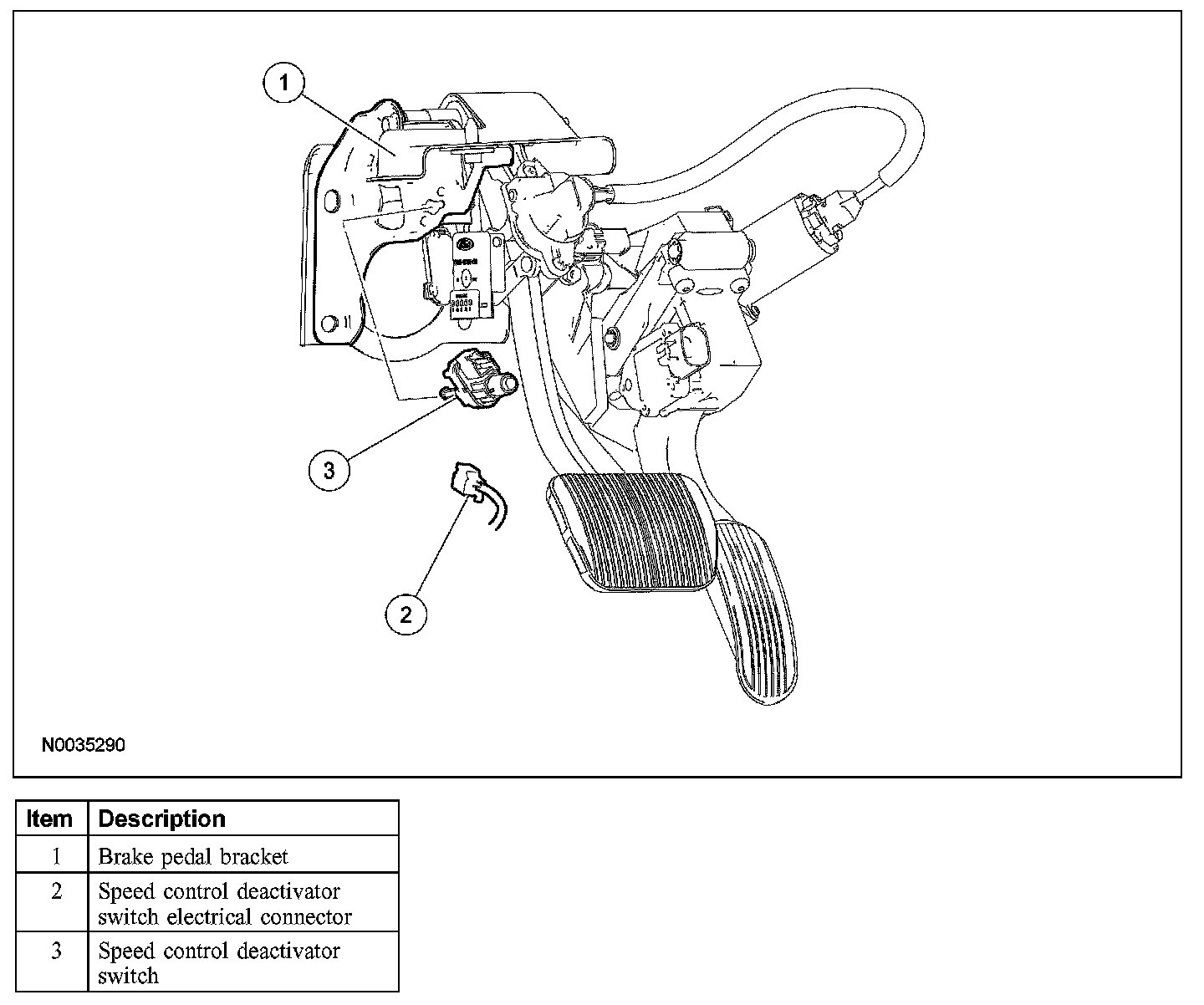

2. Install the speed control deactivator switch.
1 Position the speed control deactivator switch in the bracket and rotate clockwise.
2 Connect the electrical connector.

3. Slowly release the brake pedal.
