Safety Belt Retractor - Rear

SAFETY BELT RETRACTOR - REAR







Removal and Installation

WARNING: All safety belt assemblies (including retractors, belt tension sensors [BTS] if equipped, buckles, shoulder belt height adjusters [if so equipped], child safety seat tether attachments and attaching hardware) should be inspected after any collision. All new belt assemblies should be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.

The automatic locking retractor (ALR) feature of the safety belt retractor must be checked by a qualified technician to verify that the ALR feature for a child safety seat is functioning correctly, in addition to other checks for correct safety belt system function. A new belt and retractor assembly must be installed if the safety belt assembly's "automatic locking retractor" feature or any other safety belt function is not operating correctly when inspected according to the functional inspection procedures. Failure to install a new belt and retractor assembly could increase the risk of injury in collisions.

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

For police vehicles equipped with fire suppression, depower the fire suppression system.

2. Remove the parcel shelf trim

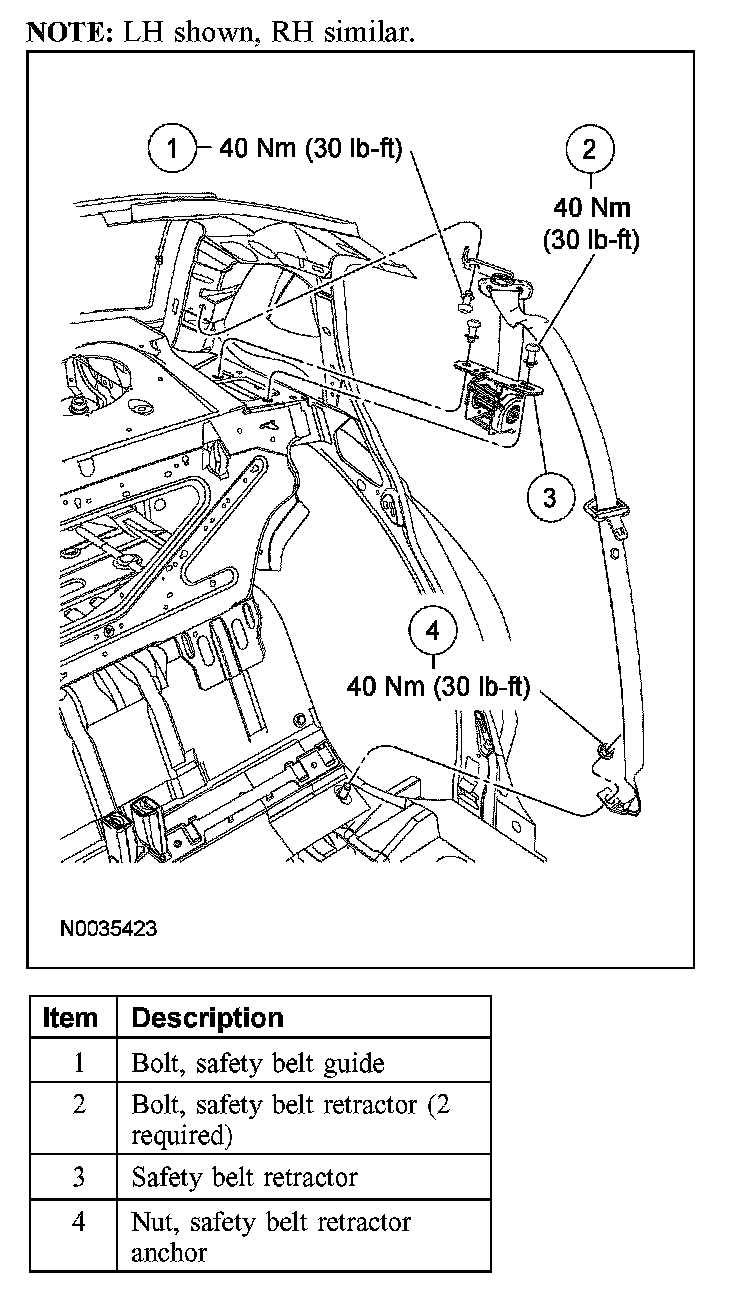

3. Remove the 2 safety belt retractor bolts.
- To install, tighten to 40 Nm (30 lb-ft).

4. Remove the bolt and safety belt guide.
- To install, tighten to 40 Nm (30 lb-ft).

5. Remove the bolt and safety belt anchor.
- To install, tighten to 40 Nm (30 lb-ft).

6. Remove the safety belt retractor.
7. To install, reverse the removal procedure.

8. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

For police vehicles equipped with fire suppression, repower the fire suppression system.

9. Check the active restraints for correct operation.
