Antenna Control Module: Service and Repair

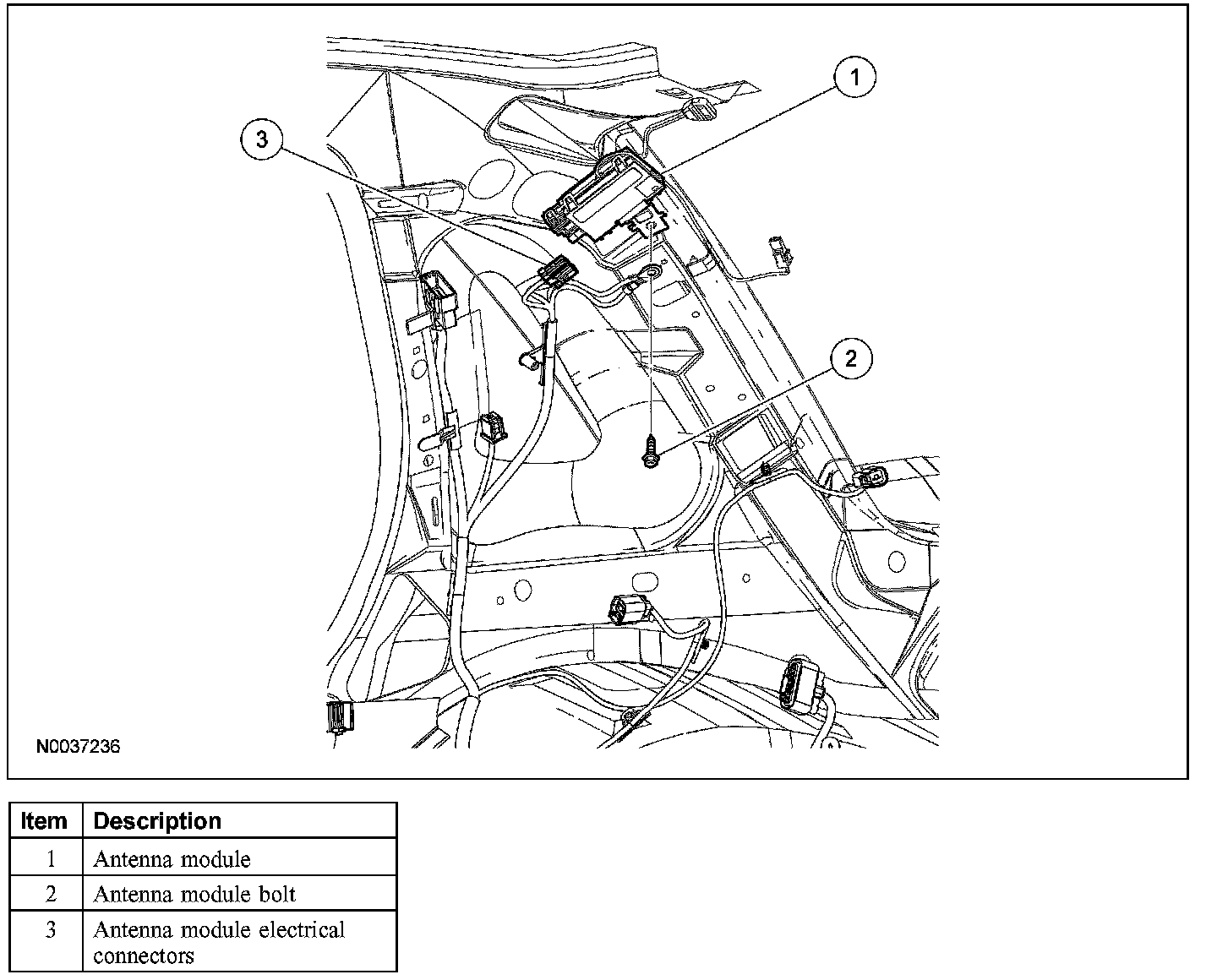

ANTENNA MODULE







Removal and Installation
1. Remove the rear quarter trim panel.
2. Remove the bolt and the antenna module.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
