Spring Lock Couplings

SPRING LOCK COUPLINGS

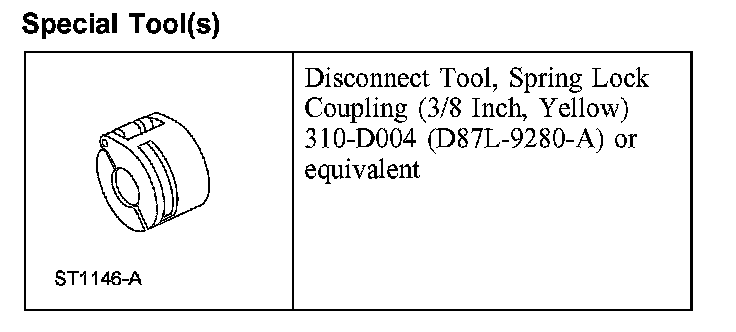

Special Tool(s):

Special Tool(s)

Disconnect and Connect

WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are present and may be ignited. Failure to follow these instructions can result in personal injury.
- Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

1. Release the fuel system pressure.

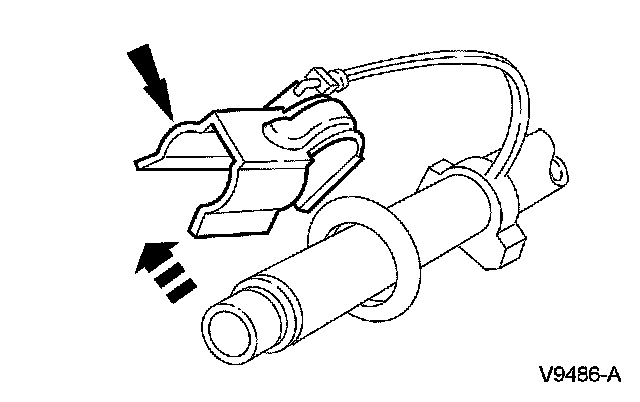

2. Remove the fuel tube clip.

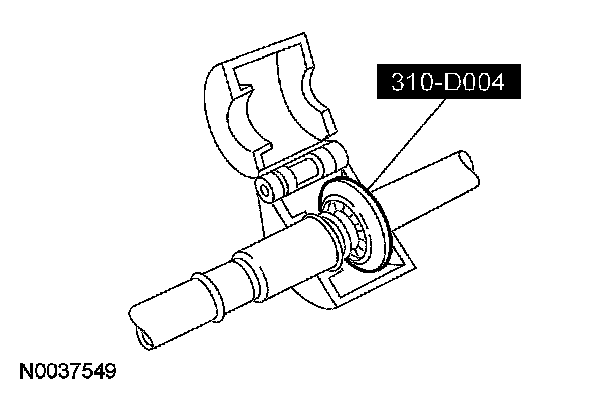

3. Install the disconnect tool.

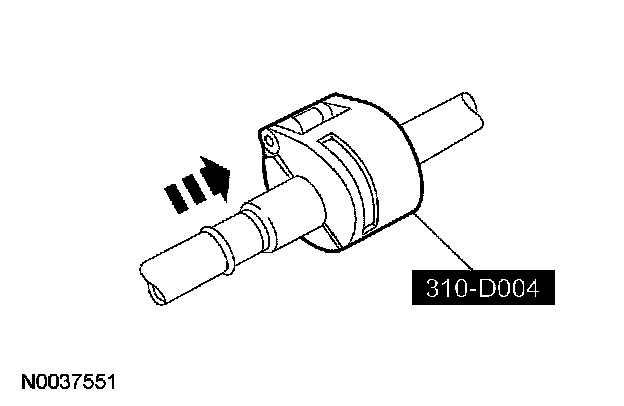

4. Close and push the disconnect tool into the open side of the cage.

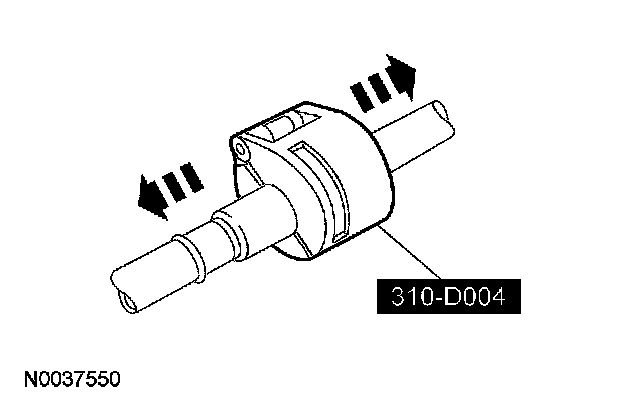

5. Separate the fitting.







6. To connect, reverse the disconnect procedure.

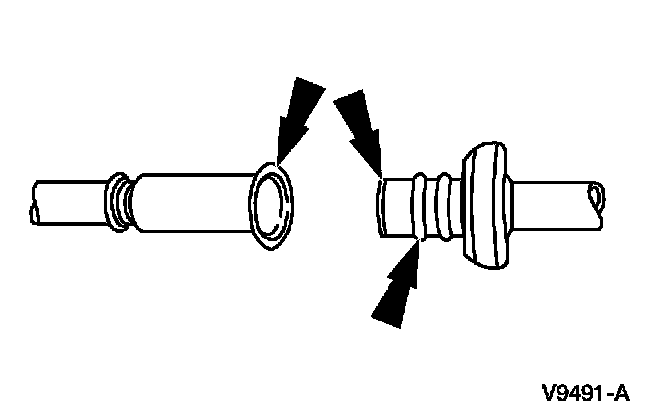

- Inspect and clean both the coupling ends.
- Lubricate the O-ring seals with clean engine oil.
