PCV Valve Hose: Service and Repair

CRANKCASE VENTILATION TUBE

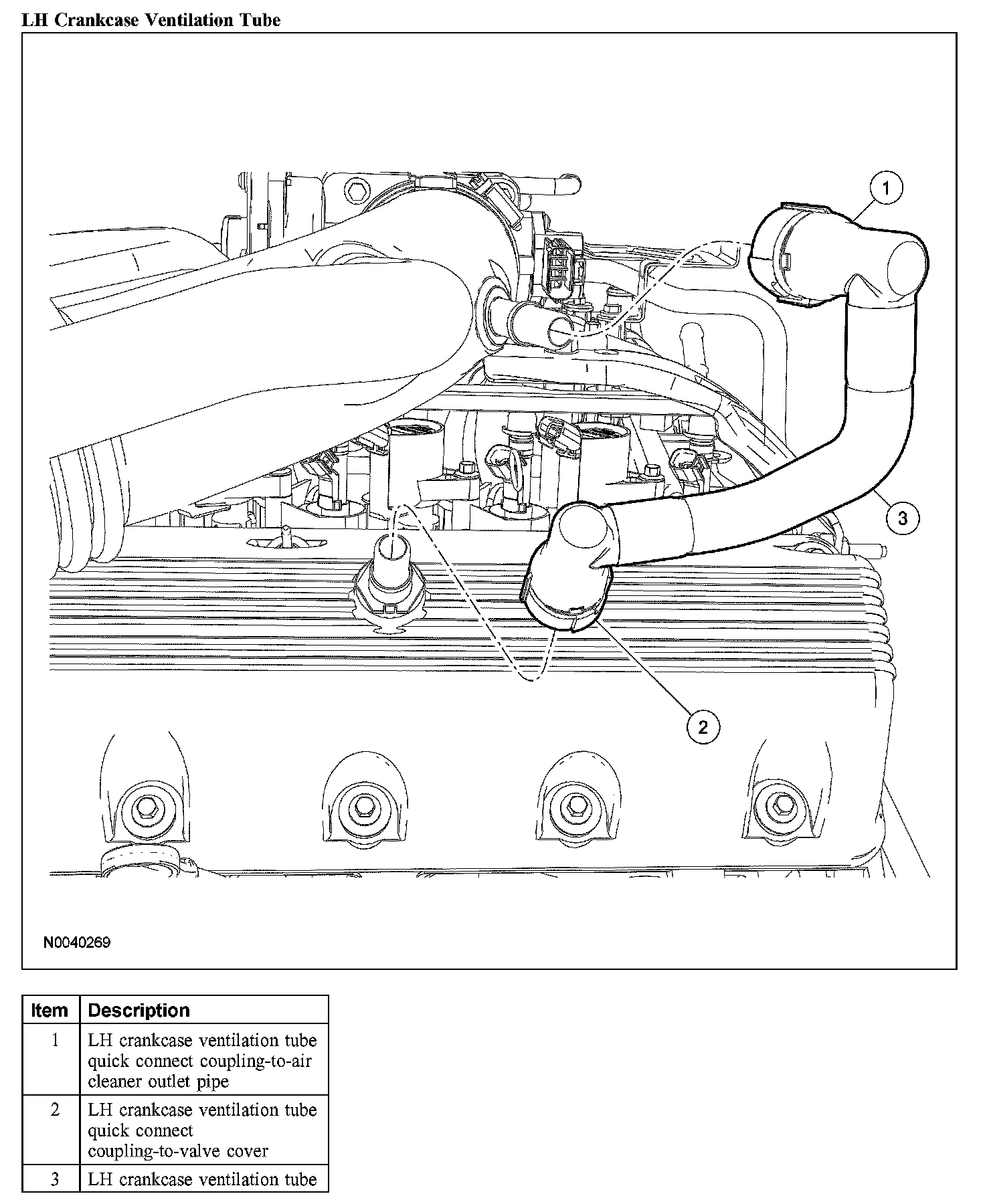

LH Crankcase Ventilation Tube:

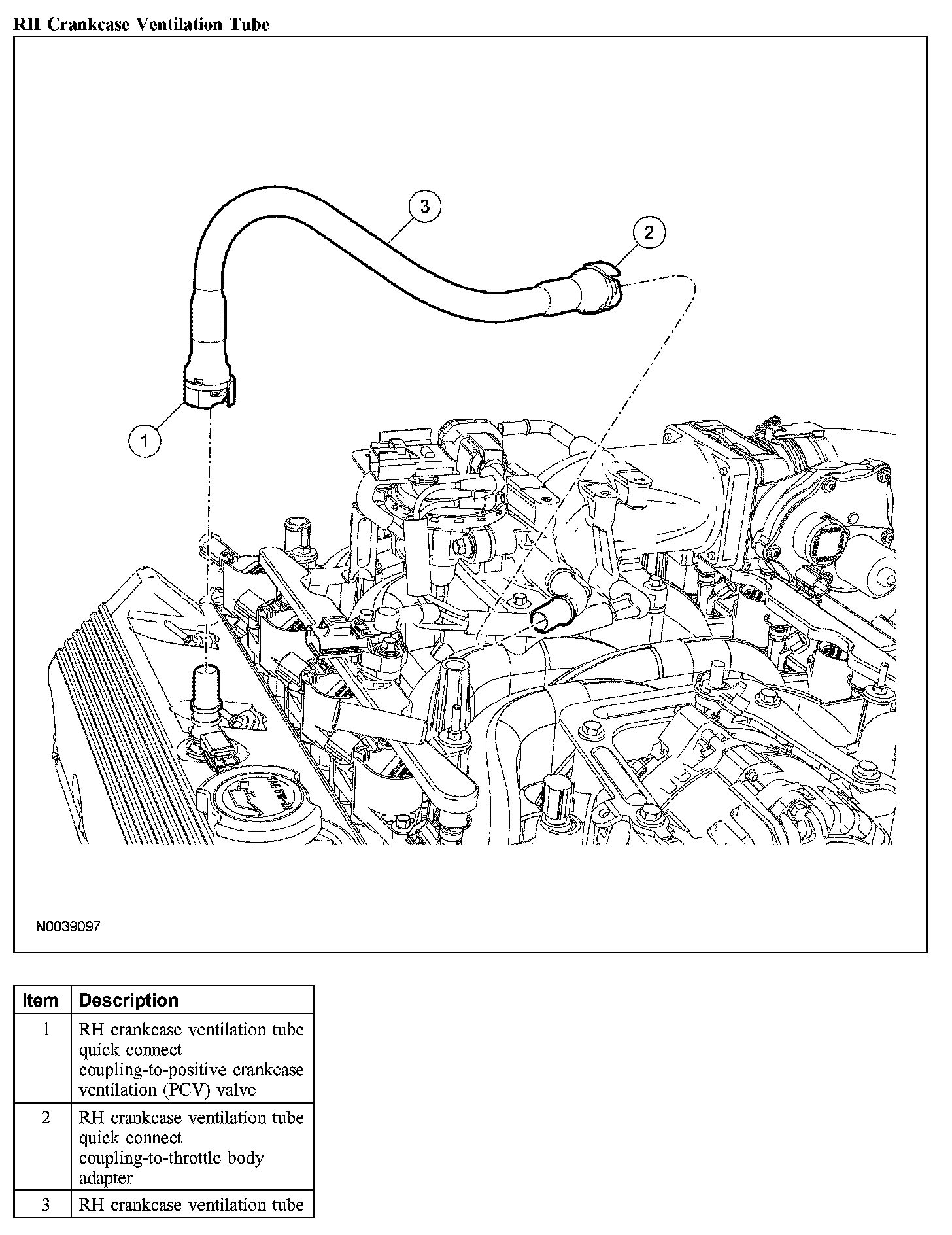

RH Crankcase Ventilation Tube:

Removal and Installation

LH crankcase ventilation tube
1. Release the LH crankcase ventilation tube quick connect coupling from the throttle body (TB) inlet tube.
2. Release the LH crankcase ventilation tube quick connect coupling from the LH valve cover crankcase vent tube nipple and remove the tube.

RH crankcase ventilation tube
3. Release the RH crankcase ventilation tube quick connect coupling from the TB adapter.
4. Release the RH crankcase ventilation tube quick connect coupling from the positive crankcase ventilation (PCV) valve and remove the tube.

RH and LH crankcase ventilation tubes
5. To install, reverse the removal procedure.
