Test C: The Driver Door Module (DDM) Does Not Respond To The Diagnostic Tool

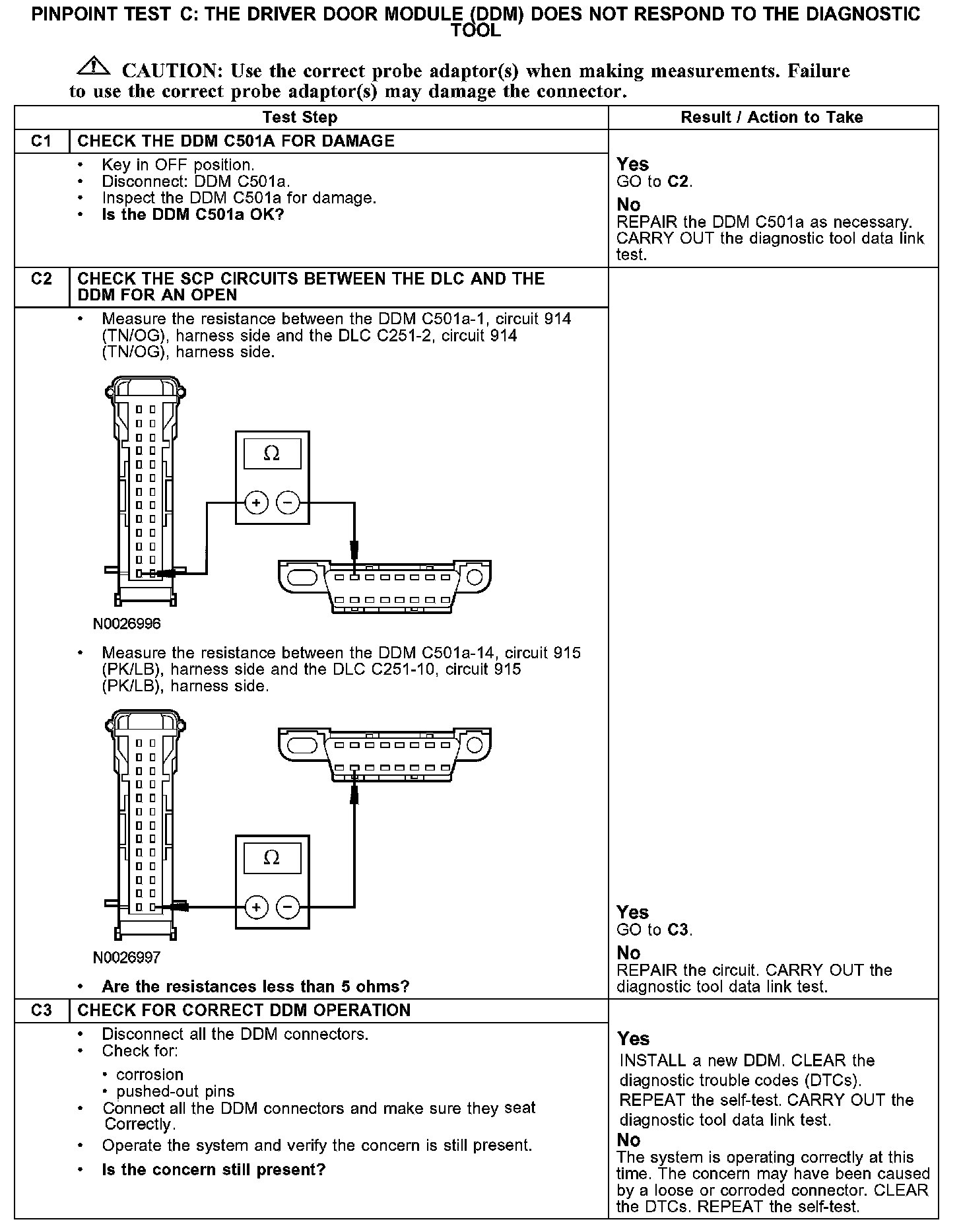

PINPOINT TEST C: THE DRIVER DOOR MODULE (DDM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

C1-C3:

Normal Operation
The DDM communicates with the diagnostic tool through the standard corporate protocol (SCP) communication network, circuits 914 (TN/OG) and 915 (PK/LB). Check the SCP circuits 914 (TN/OG) and 915 (PK/LB) between the DDM C501a and the data link connector (DLC) C251. The total resistance values must not be more than 5 ohms. If the resistance is more than 5 ohms, there is an open in the SCP network circuits, damage to the DLC C251, the DDM C501a, or a problem in the in-line connectors.

Possible Causes
- SCP data plus circuit 914 (TN/OG) open
- SCP data minus circuit 915 (PK/LB) open
- DDM C501a
- DDM
