Test D: The Door Ajar Warning Chime Does Not Operate Correctly

PINPOINT TEST D: THE DOOR AJAR WARNING CHIME DOES NOT OPERATE CORRECTLY

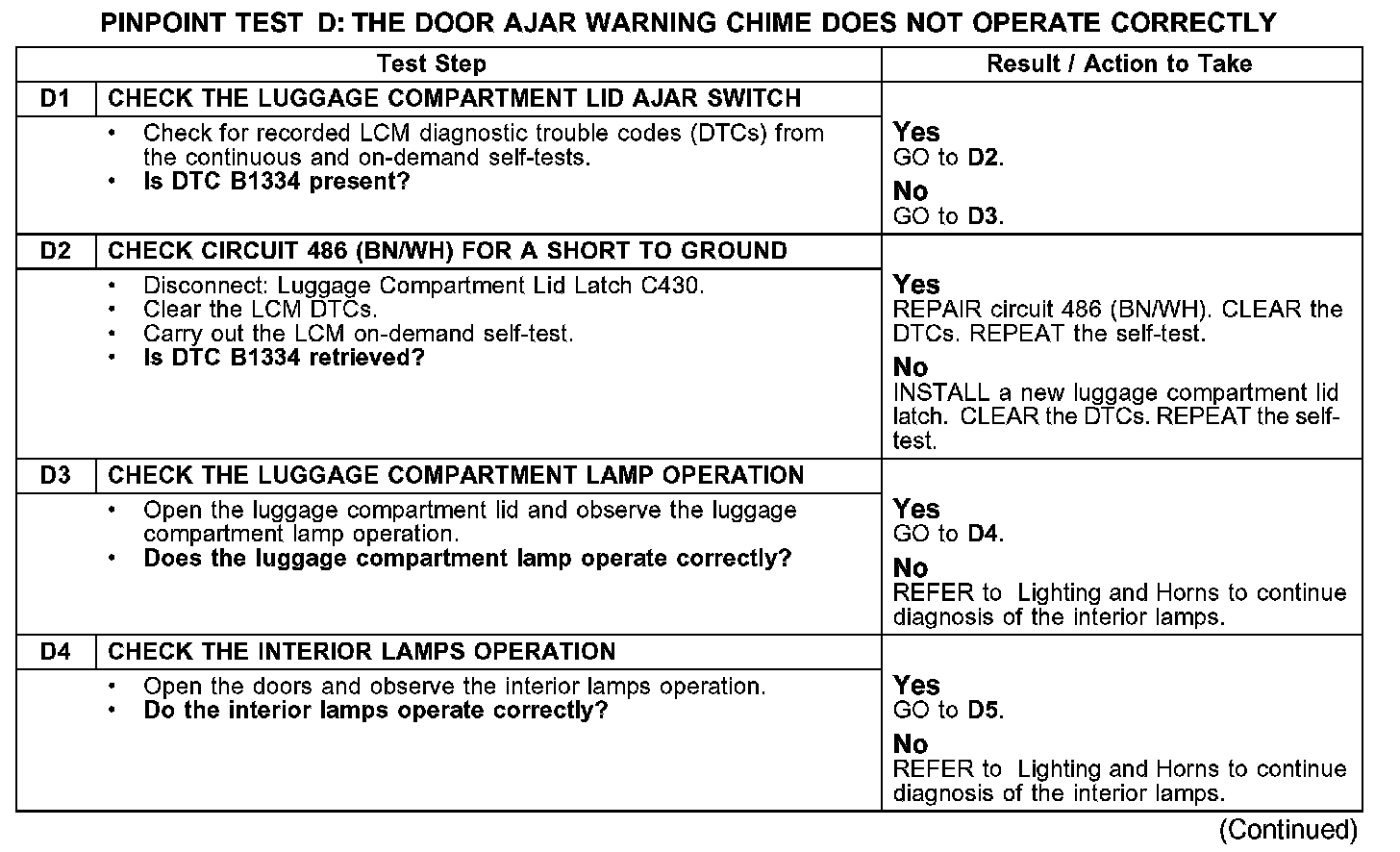

D1-D4:

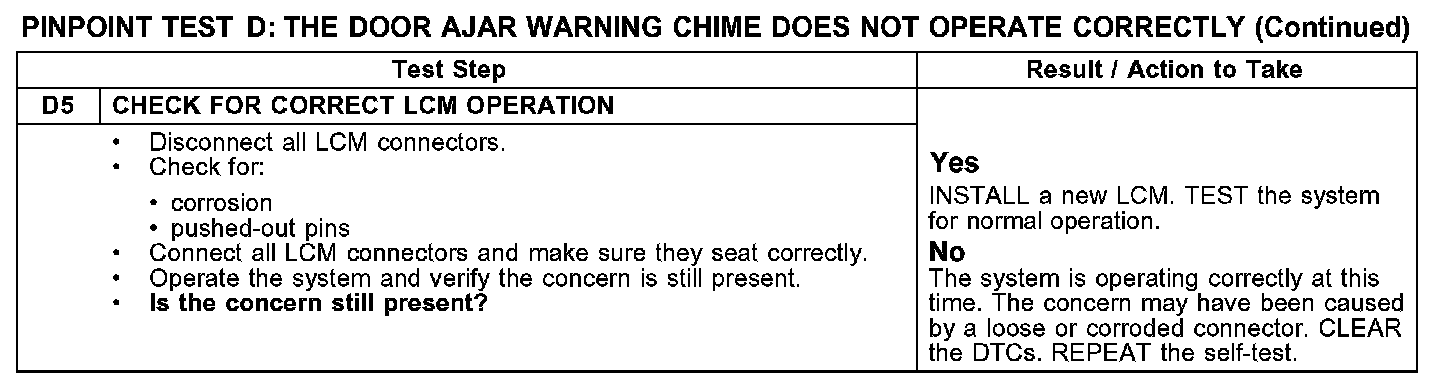

D5:

Normal Operation
The door ajar warning chime sounds when the ignition switch is in the ON position and the luggage compartment lid or a door is ajar.

Possible Causes
- circuit 486 (BN/WH) open or short to ground
- luggage compartment lid latch
- lighting control module (LCM)
