Test E: The Speedometer/Odometer Is Inoperative

PINPOINT TEST E: THE SPEEDOMETER/ODOMETER IS INOPERATIVE

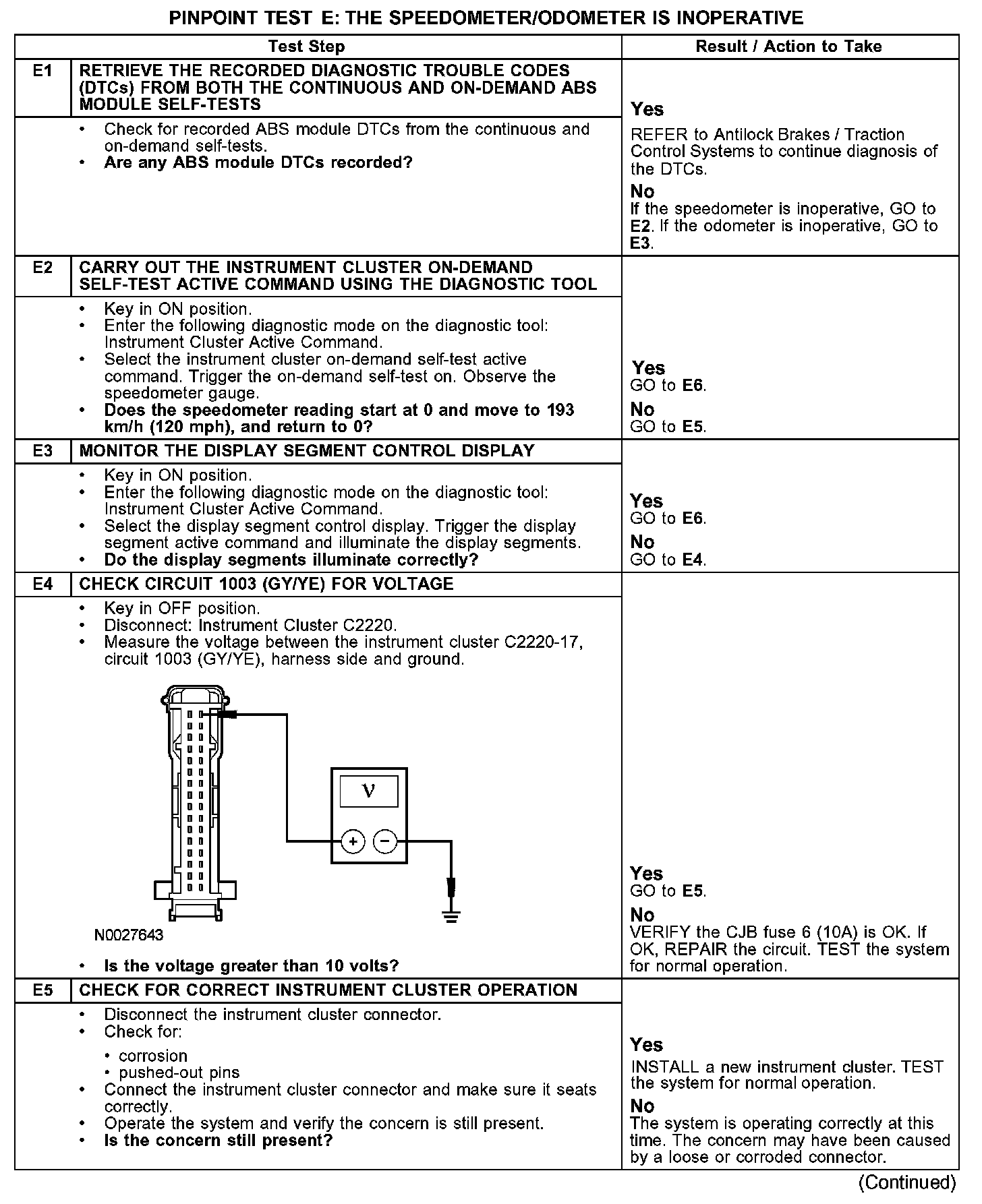

E1-E5:

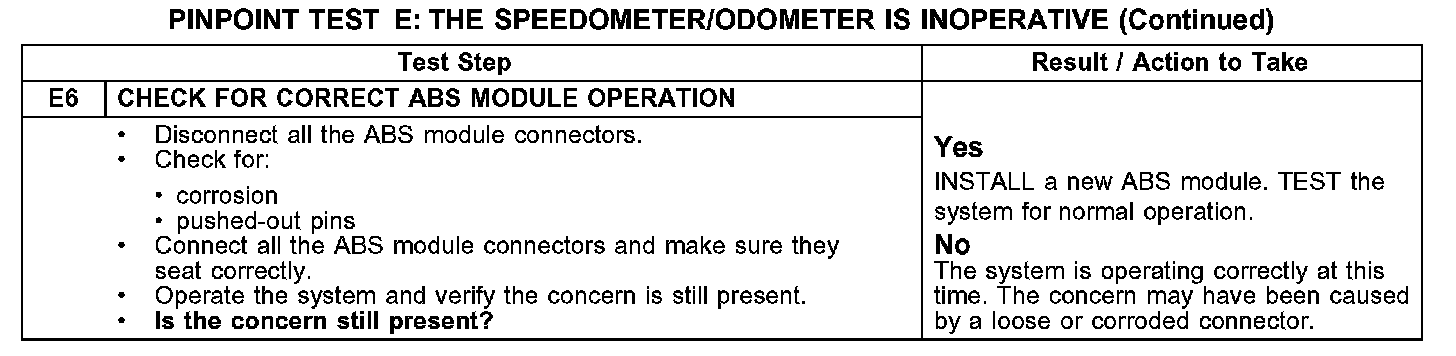

E6:

Normal Operation
The instrument cluster receives voltage from the central junction box (CJB) through circuit 1003 (GY/YE). The instrument cluster receives the vehicle speed sensor (VSS) signal from the anti-lock brake system (ABS) module over the controller area network (CAN). The instrument cluster monitors the VSS input from the ABS module and commands the speedometer with a corresponding movement of the pointer.

Possible Causes
- fuse
- circuit 1003 (GY/YE) open
- ABS module
- instrument cluster
