Instrument Cluster (IC)

INSTRUMENT CLUSTER

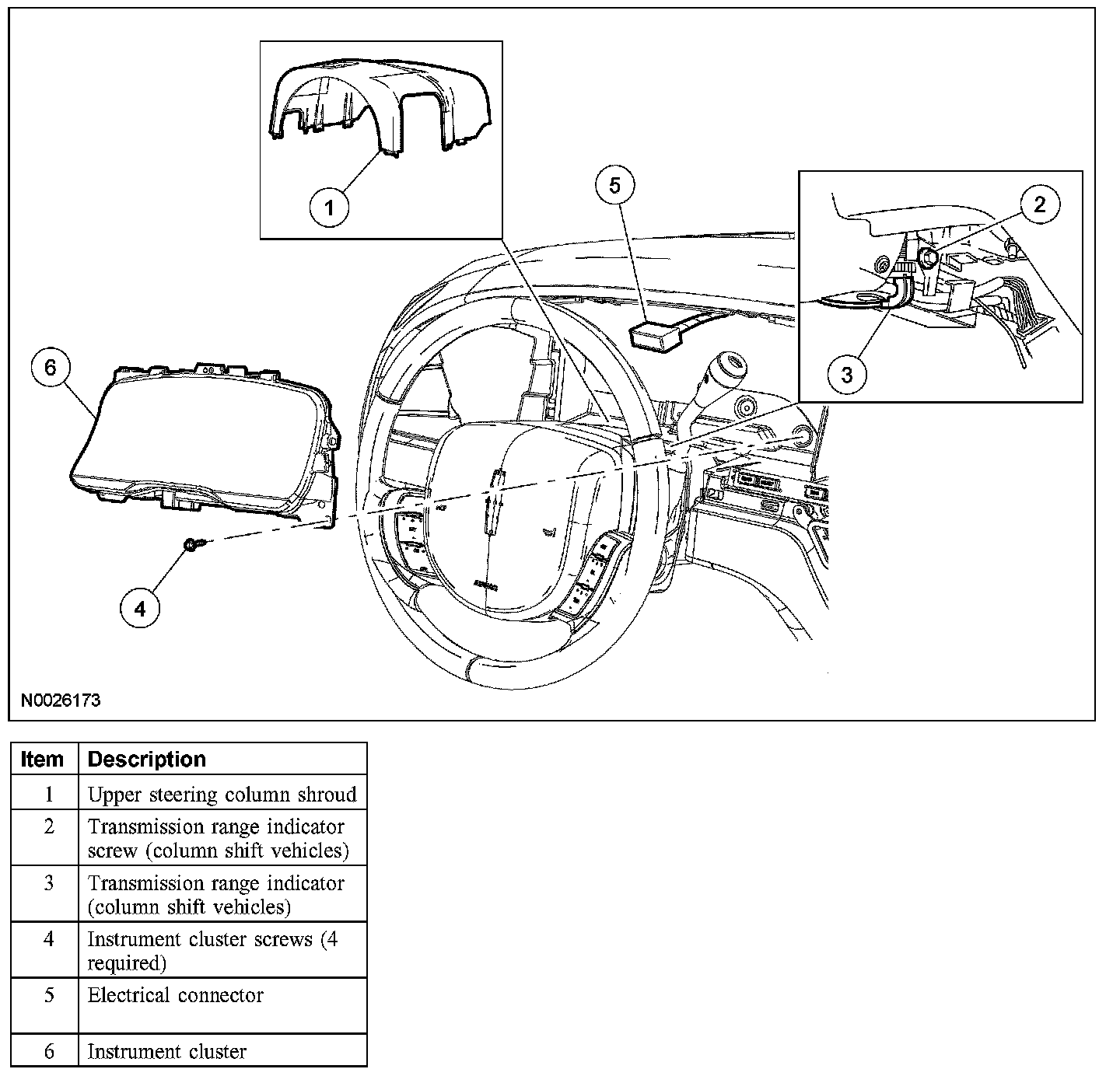

Removal and Installation

1. NOTE: If installing a new instrument cluster, it is necessary to upload the instrument cluster configuration information to the diagnostic tool.

Depower the supplemental restraint system (SRS)

2. Remove the instrument cluster finish panel.

3. NOTE: Release the upper steering column shroud by pressing the sides inward.

Remove the upper steering column shroud.

4. Remove the screw and the transmission range indicator from the steering column.
- Disconnect the transmission range indicator cable from the shift selector arm.

5. Remove the 4 screws and the instrument cluster.
- Disconnect the electrical connector.

6. To install, reverse the removal procedure.
- If a new instrument cluster was installed, download the instrument cluster configuration information from the diagnostic tool into the new instrument cluster.
