Vacuum Schematic - Manual A/C

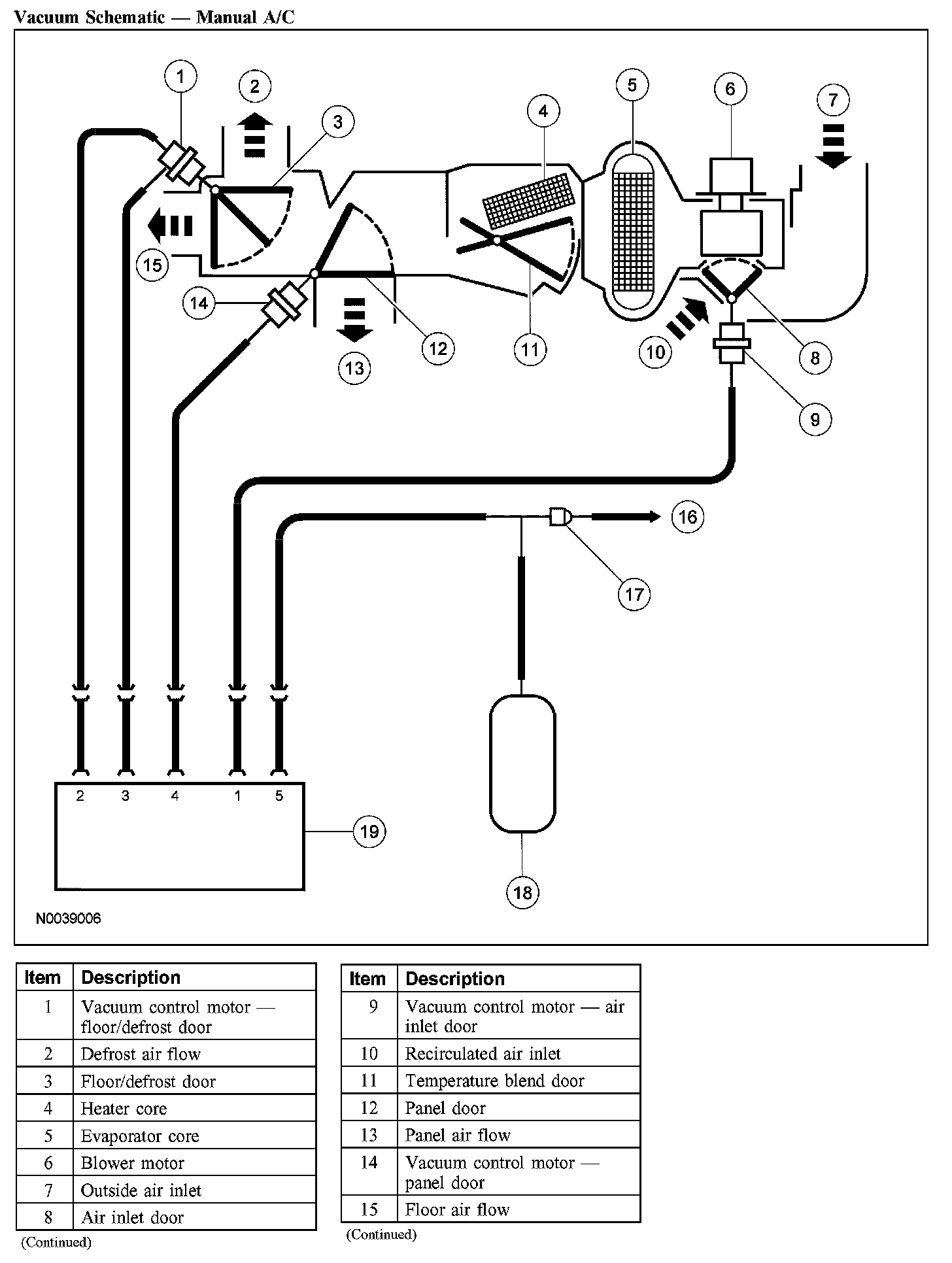

Vacuum Schematic - Manual A/C (Part 1):

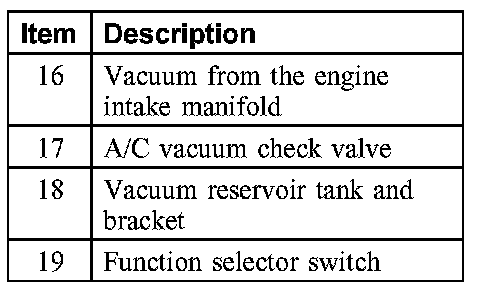

Vacuum Schematic - Manual A/C (Part 2):

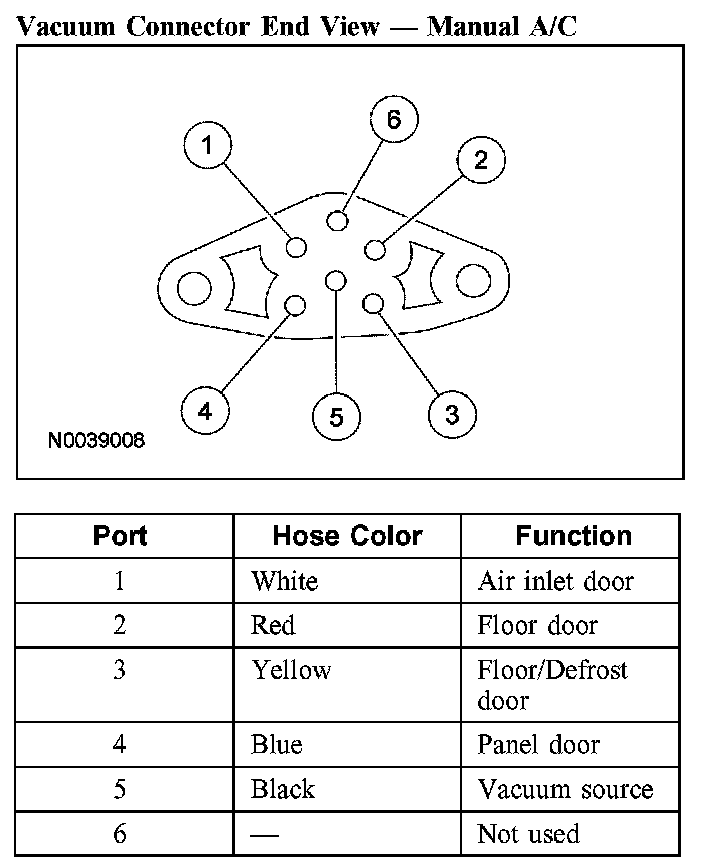

Vacuum Connector End View - Manual A/C:

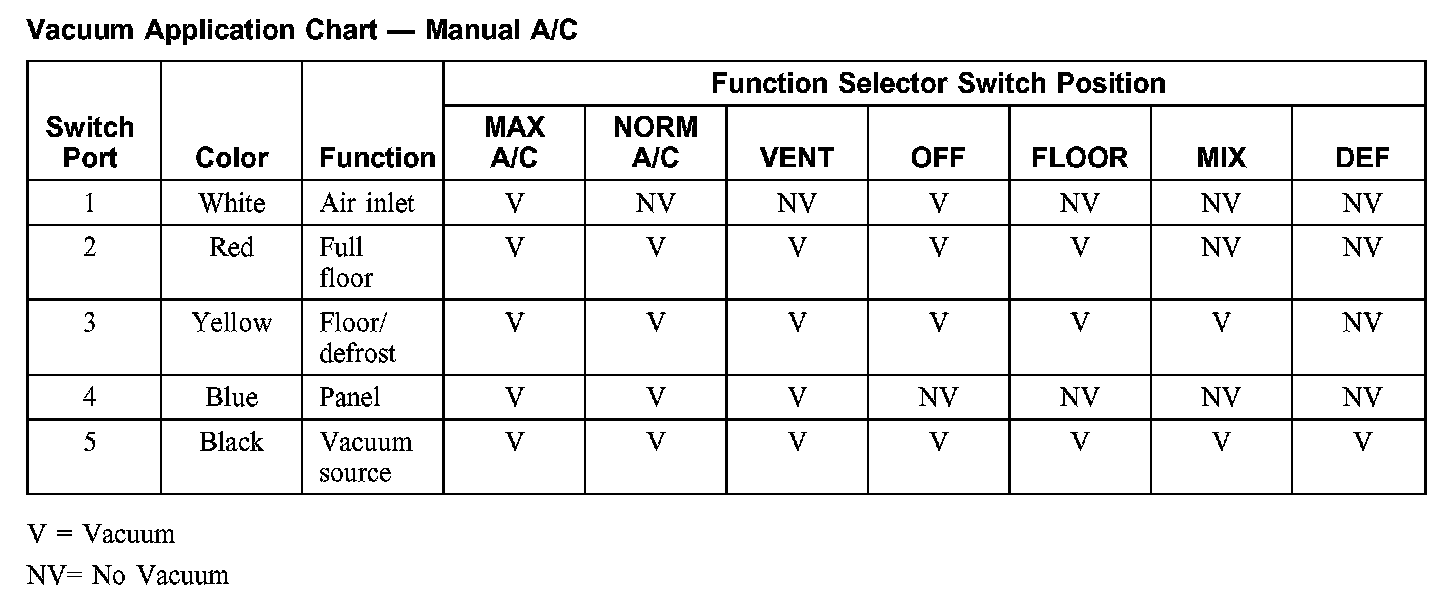

Vacuum Application Chart - Manual A/C:
