Test K: The Air Conditioning (A/C) Is Always On

PINPOINT TEST K: THE AIR CONDITIONING (A/C) IS ALWAYS ON

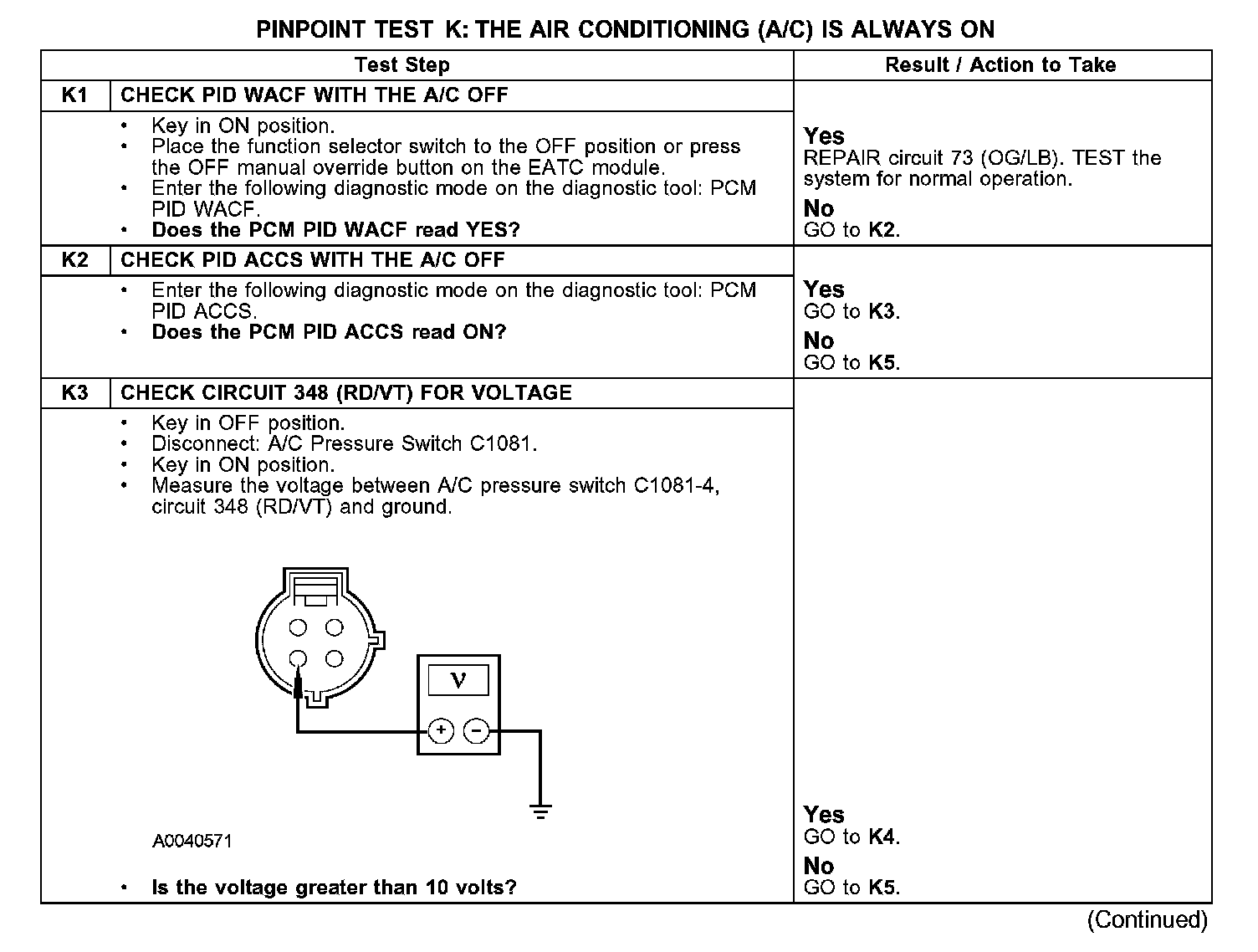

K1-K3:

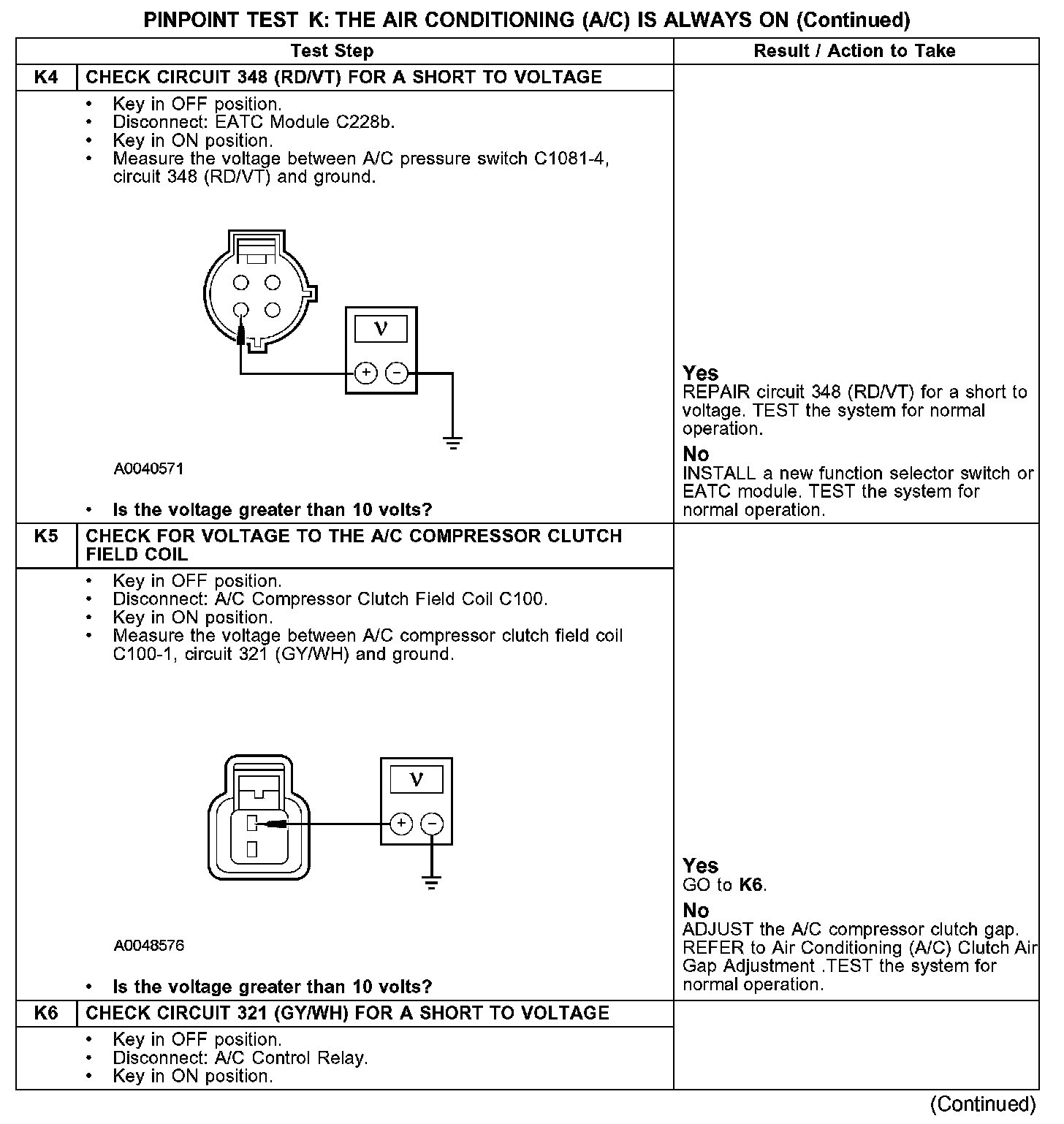

K4-K6:

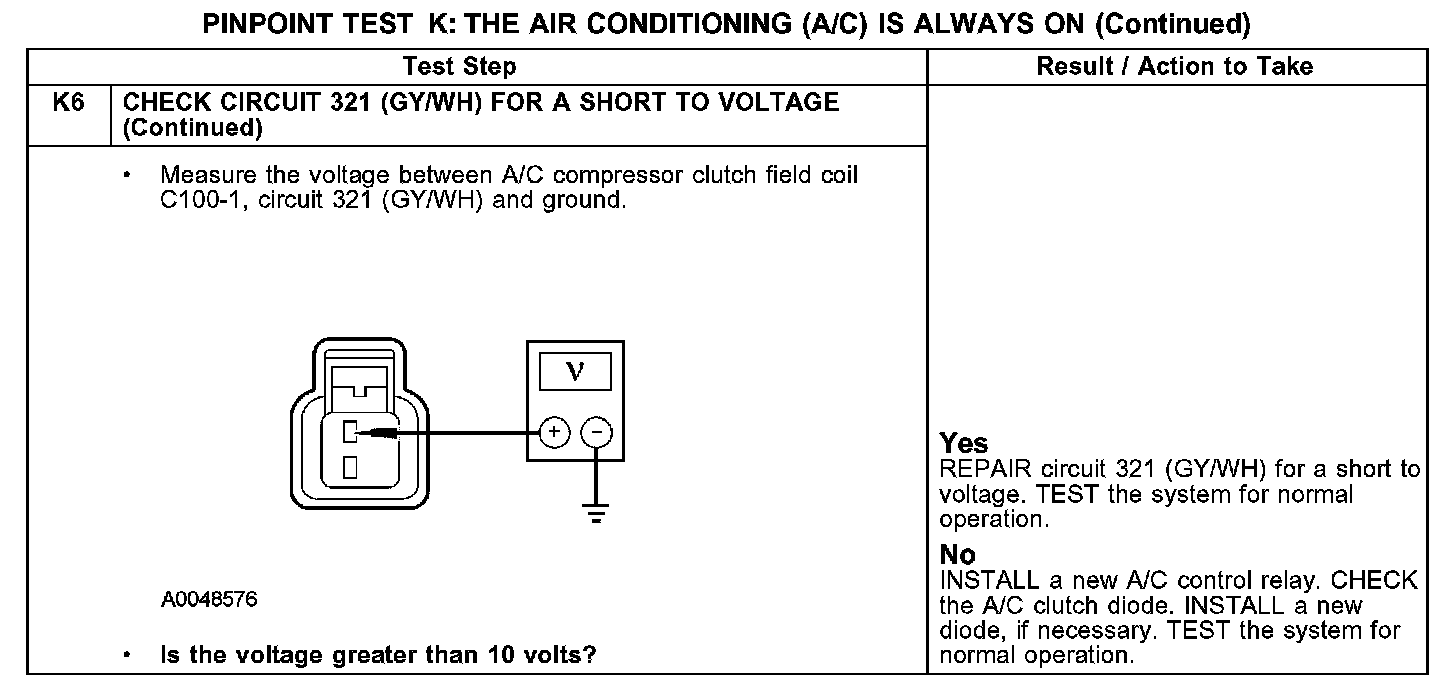

K6 Continued:

Normal Operation
Under normal electronic automatic temperature control (EATC) operation, when A/C is requested, a message is sent over the bus from the EATC module to the powertrain control module (PCM). The PCM receives input from the A/C cycling switch through circuit 883 (PK/LB). Voltage is provided to the A/C cycling switch through circuit 348 (RD/VT).

Under normal manual climate control operation, when A/C is requested the function selector switch sends voltage to the A/C cycling switch through circuit 348 (RD/VT). The PCM receives input from the A/C cycling switch through circuit 883 (PK/LB). Voltage is supplied to the function selector switch through circuit 1040 (RD/BK).

The PCM provides a ground for the A/C clutch relay coil through circuit 73 (OG/LB). The A/C clutch relay coil receives ignition voltage through circuit 391 (RD/YE). Ignition voltage for the A/C clutch relay switch is provided through circuit 1810 (LG/OG). When the relay is activated, ignition voltage is supplied to the A/C clutch solenoid through circuit 321 (GY/WH). Ground is supplied for the A/C clutch through circuit 57 (BK).

Possible Causes
- A short to voltage in circuit 73 (OG/LB), 348 (RD/VT) or 321 (GY/WH)
- PCM
- A/C control relay
- Function selector switch
- Electronic automatic temperature control (EATC) module
- A/C clutch air gap
