Test F: The EATC System Is Inoperative, Intermittent or Incorrect Operation

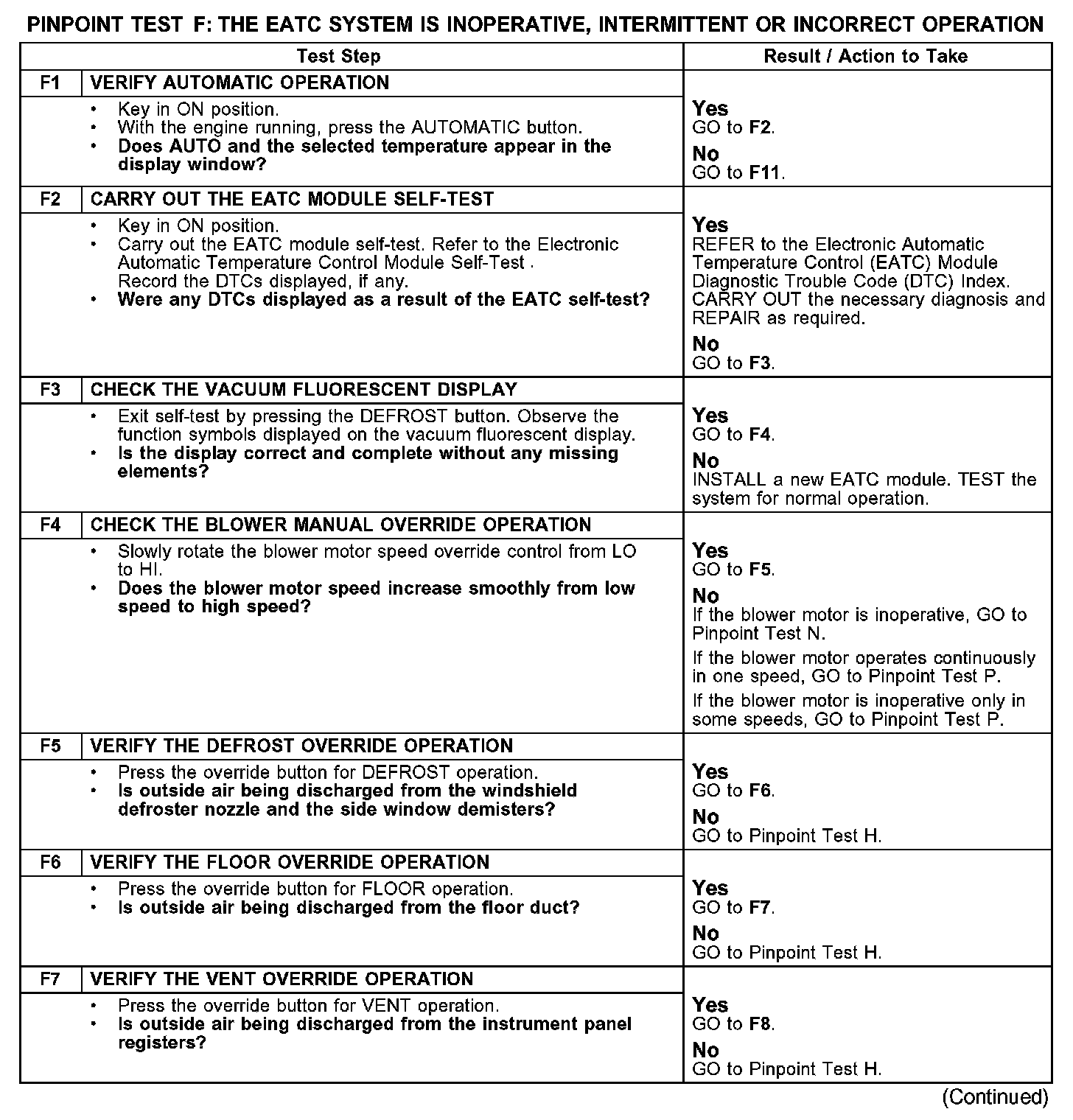

PINPOINT TEST F: THE EATC SYSTEM IS INOPERATIVE, INTERMITTENT OR INCORRECT OPERATION

F1-F7:

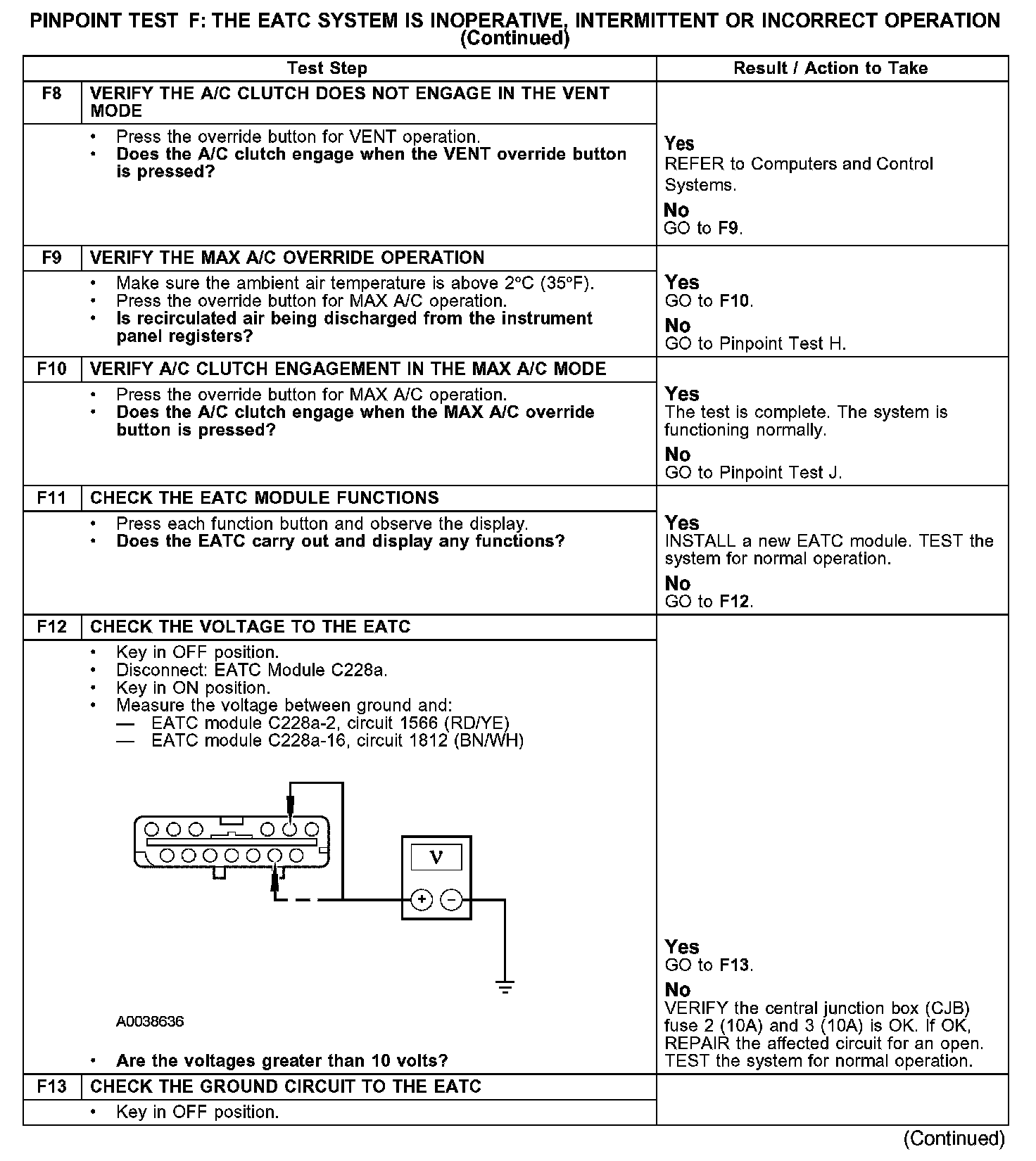

F8-F13:

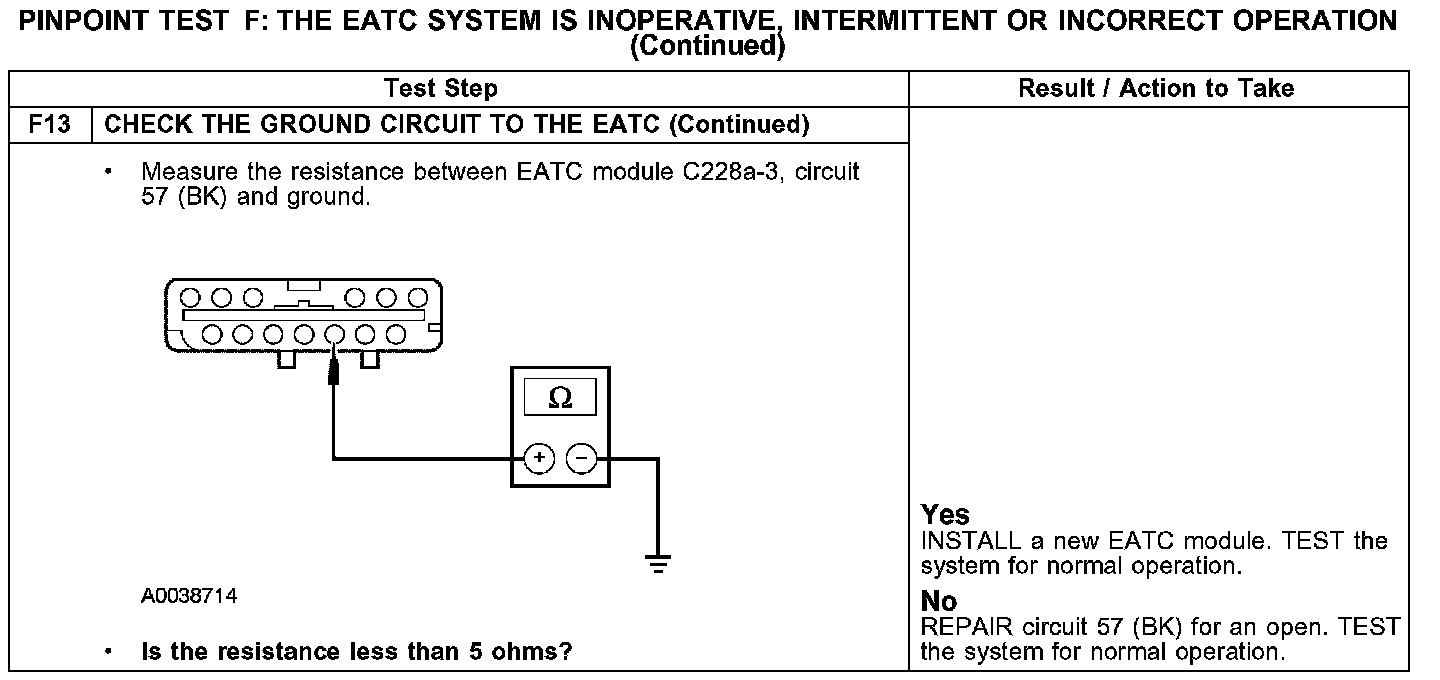

F13 Continued:

Normal Operation
Under normal operation, the electronic automatic temperature control (EATC) module is grounded through circuit 57 (BK). The EATC module receives battery voltage through circuit 1566 (RD/YE) and ignition voltage through circuit 1812 (BN/WH).

Possible Causes
- Fuse(s)
- An open in circuit 57 (BK), 1566 (RD/YE) or 1812 (BN/WH)
