Oil Pick Up/Strainer: Service and Repair

Oil Pump Screen and Pickup Tube

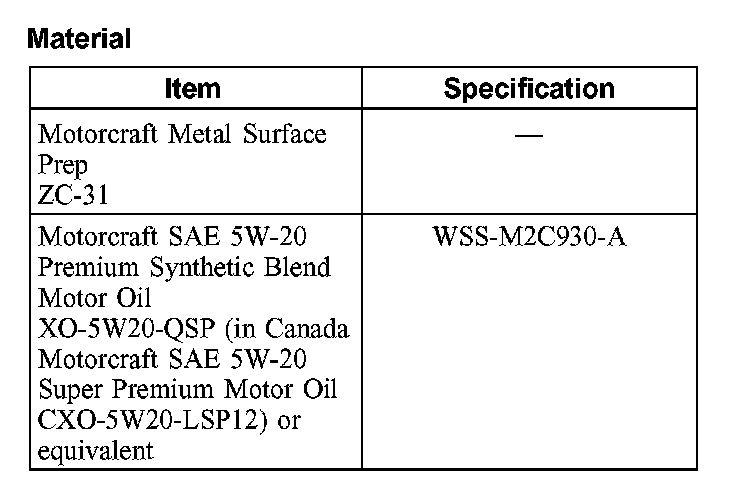

Material:

Removal

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the oil pan.
3. Remove the 3 bolts, the oil pump screen and pickup tube.
^ Discard the O-ring seal.

Installation

1. CAUTION: Make sure the O-ring is in place and not damaged. A missing or damaged O-ring can cause foam in the lubrication system, low oil pressure and severe engine damage.

NOTE: Clean and inspect the mating surfaces and install a new O-ring. Lubricate the O-ring with clean engine oil prior to installation.

Position the oil pump screen and pickup tube and install the bolts.
^ Tighten the oil pump screen and pickup tube-to-oil pump bolts to 10 Nm (89 inch lbs.).
^ Tighten the oil pump screen and pickup tube-to-spacer bolt to 25 Nm (18 ft. lbs.).
2. Install the oil pan.

3. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

If equipped with fire suppression system, repower the system.
