Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

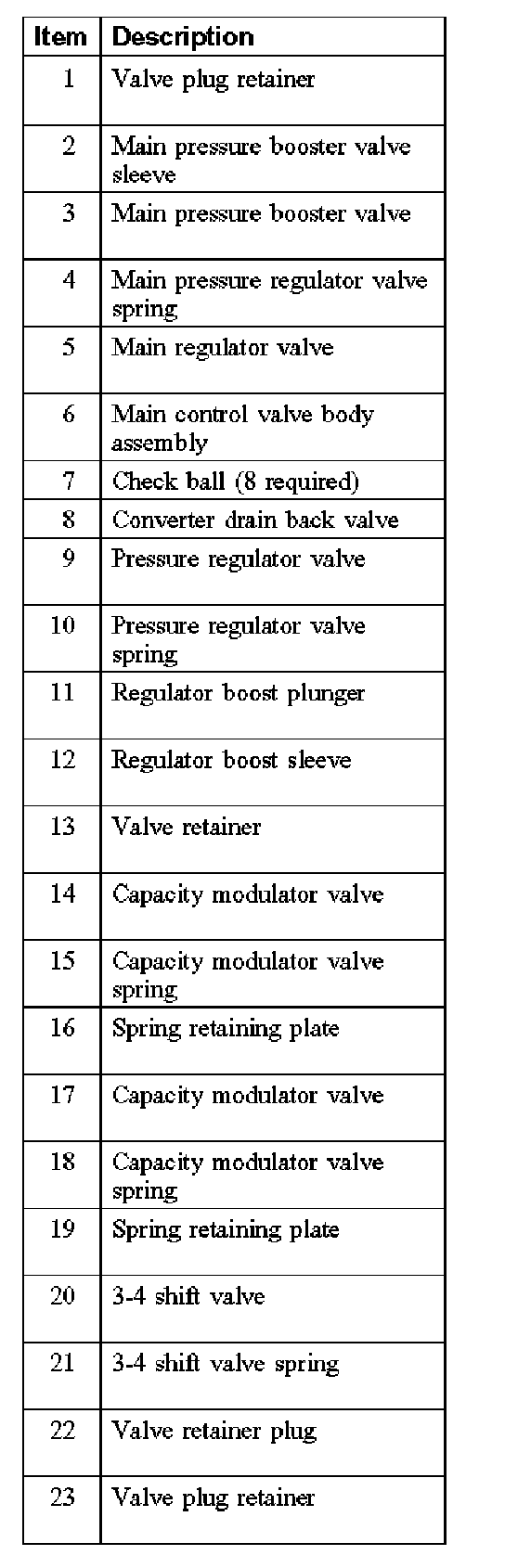

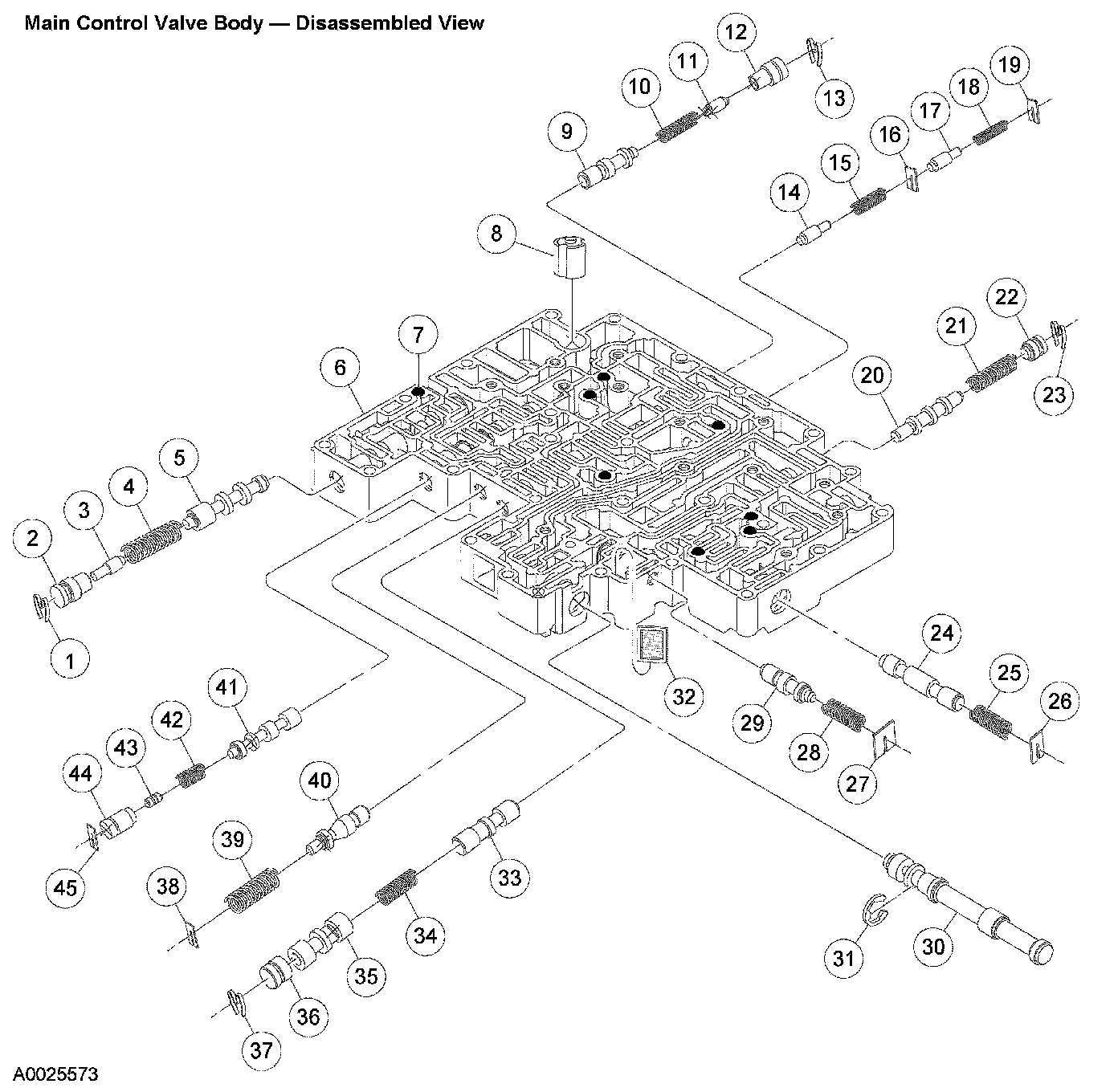

Main Control Valve Body - Disassembled View (Part 1):
Main Control Valve Body - Disassembled View (Part 2):
Main Control Valve Body - Disassembled View (Part 3):
