Test B: Adjustable Brake Pedal Is Inoperative

Pinpoint Test B: Adjustable Brake Pedal Is Inoperative

Normal Operation
Central junction box (CJB) fuse 25 (10A) provides fused battery voltage to the adjustable pedal switch along circuit 1523 (DG). The adjustable pedal switch distributes this voltage to the adjustable pedal motor along circuits 1494 (RD) and 1495 (WH) depending on switch position.

To move the pedals forward (away from the driver), the voltage is sent from the switch to the adjustable pedal motor along circuit 1495 (WH), the voltage returns from the motor to the switch along circuit 1494 (RD) and is grounded through the switch along circuit 57 (BK).

To move the pedals rearward (towards the driver), the voltage is sent from the switch to the adjustable pedal motor along circuit 1494 (RD), the voltage returns from the motor to the switch along circuit 1495 (WH) and is grounded through the switch along circuit 57 (BK).

Possible Sources
^ Fuse
^ Circuit open
^ Circuit shorted
^ Foreign material
^ Adjustable pedal cable(s)
^ Adjustable pedal switch
^ Adjustable pedal motor
^ Adjustable pedal assembly
^ Adjustable accelerator pedal assembly

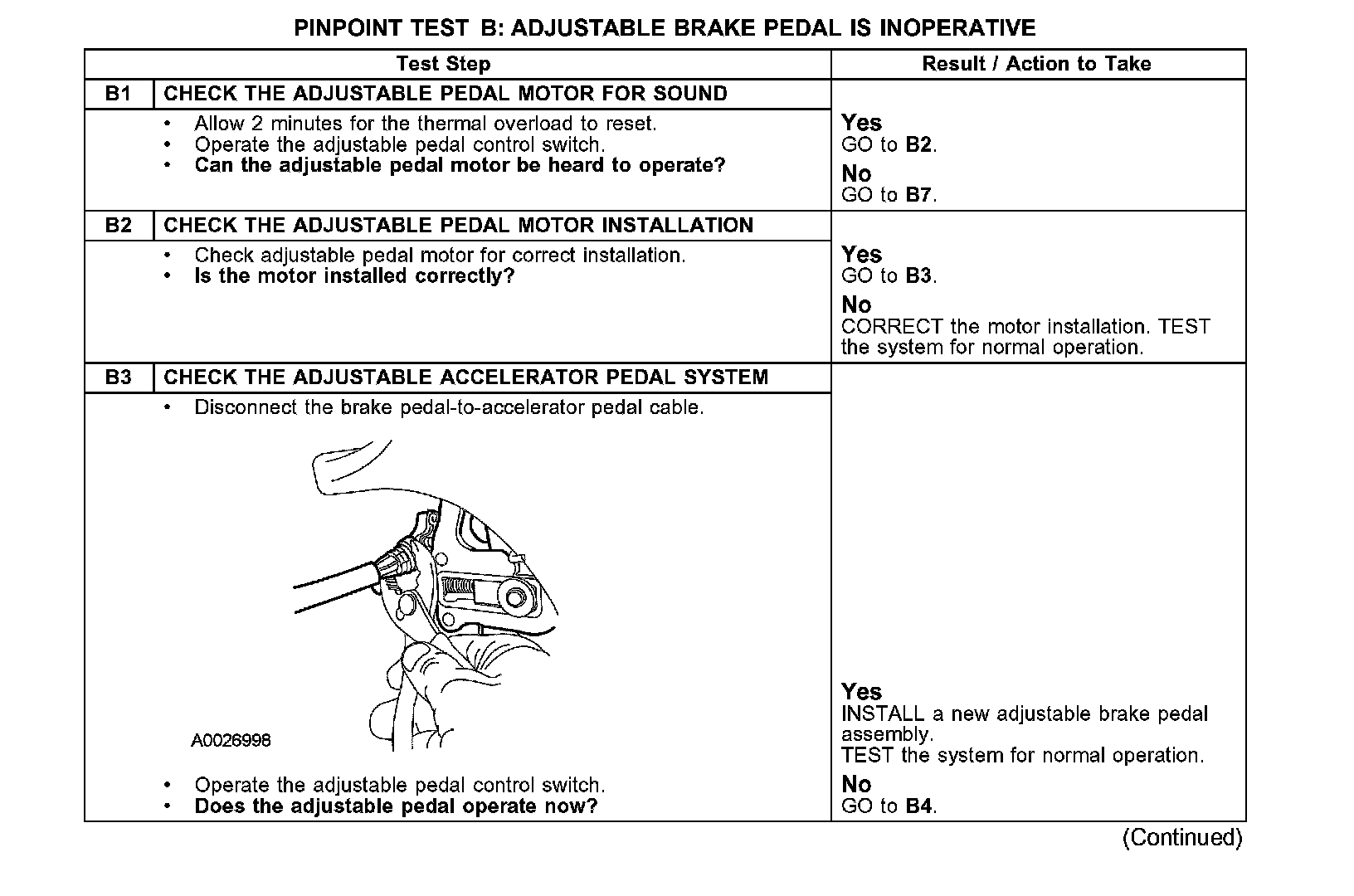

B1-B3:

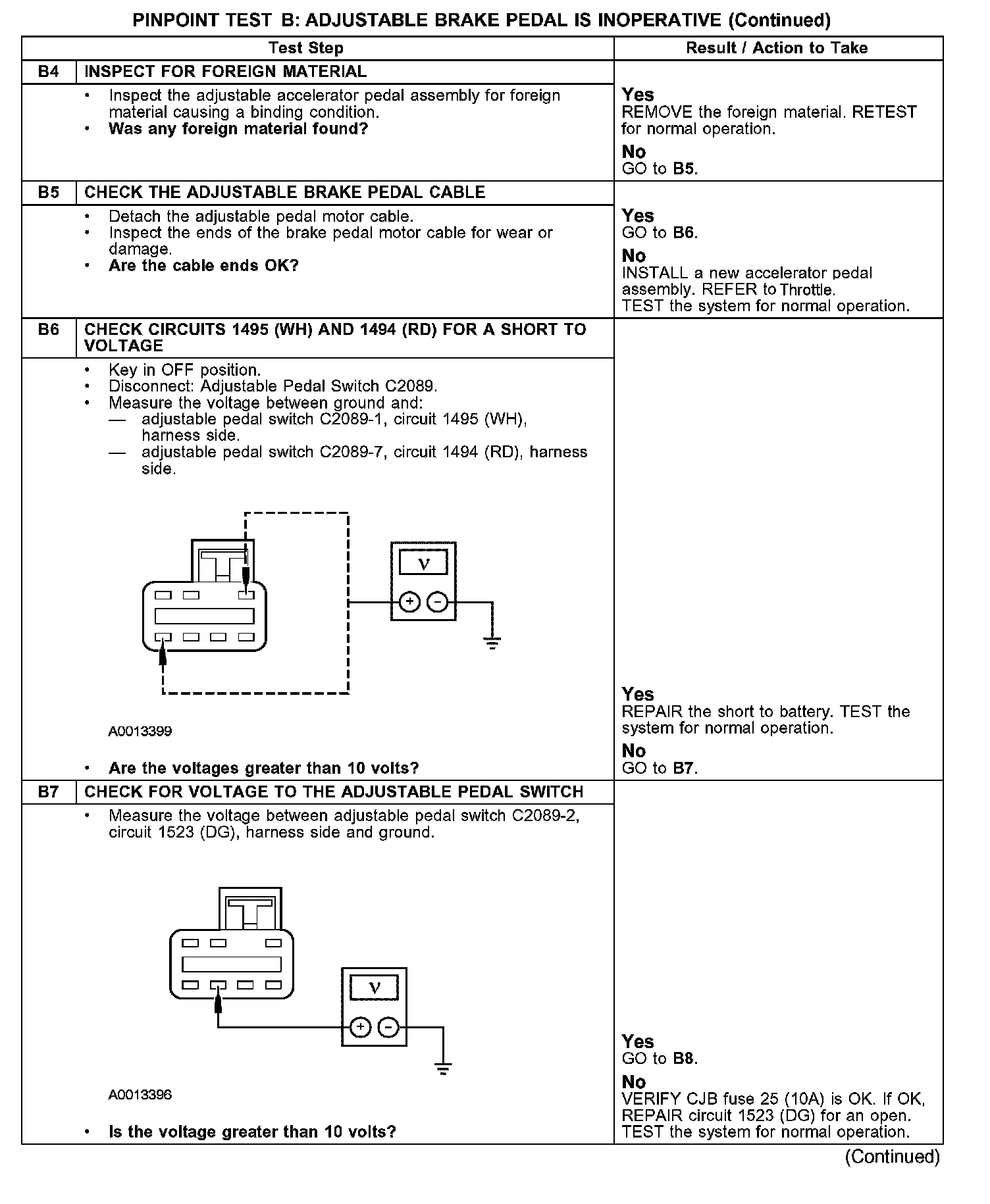

B4-B7:

B8-B10:

B10:
