Test J: The Yellow Anti-Lock Brake System (ABS) Warning Indicator Is Always On

Pinpoint Test J: The Yellow Anti-Lock Brake System (ABS) Warning Indicator Is Always On

Normal Operation
When the ignition switch is turned to the ON or START position, the instrument cluster illuminates the yellow anti-lock brake system (ABS) warning indicator. Once the ABS module has performed a self-check, a message is sent along the CAN bus to the instrument cluster to turn the indicator off. When the ABS module detects a fault in the ABS system, a message is sent to the instrument cluster to illuminate the indicator.

Possible Causes
^ Fuse(s)
^ Circuit open
^ Circuit shorted

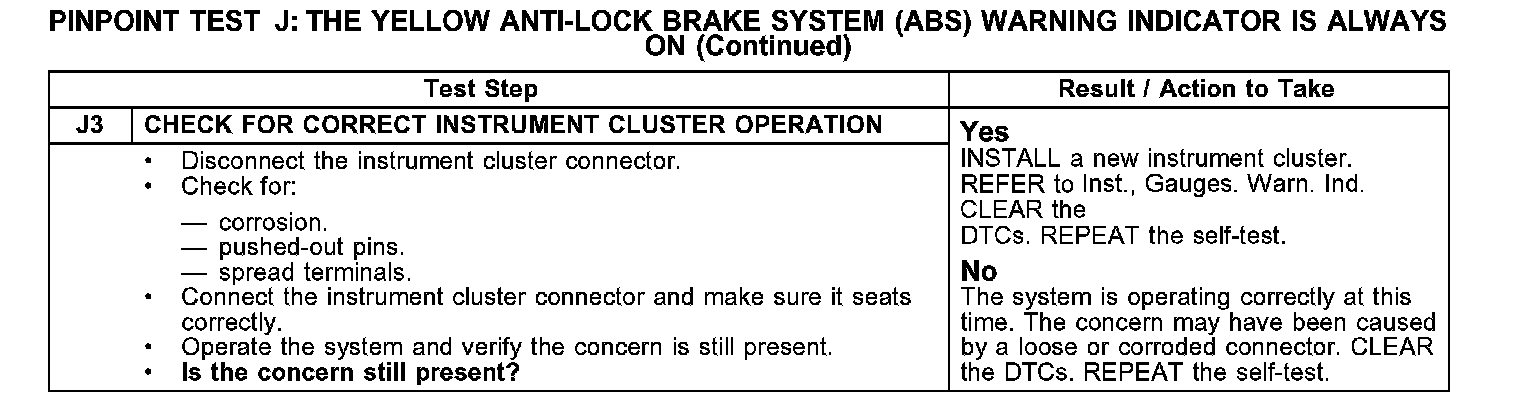

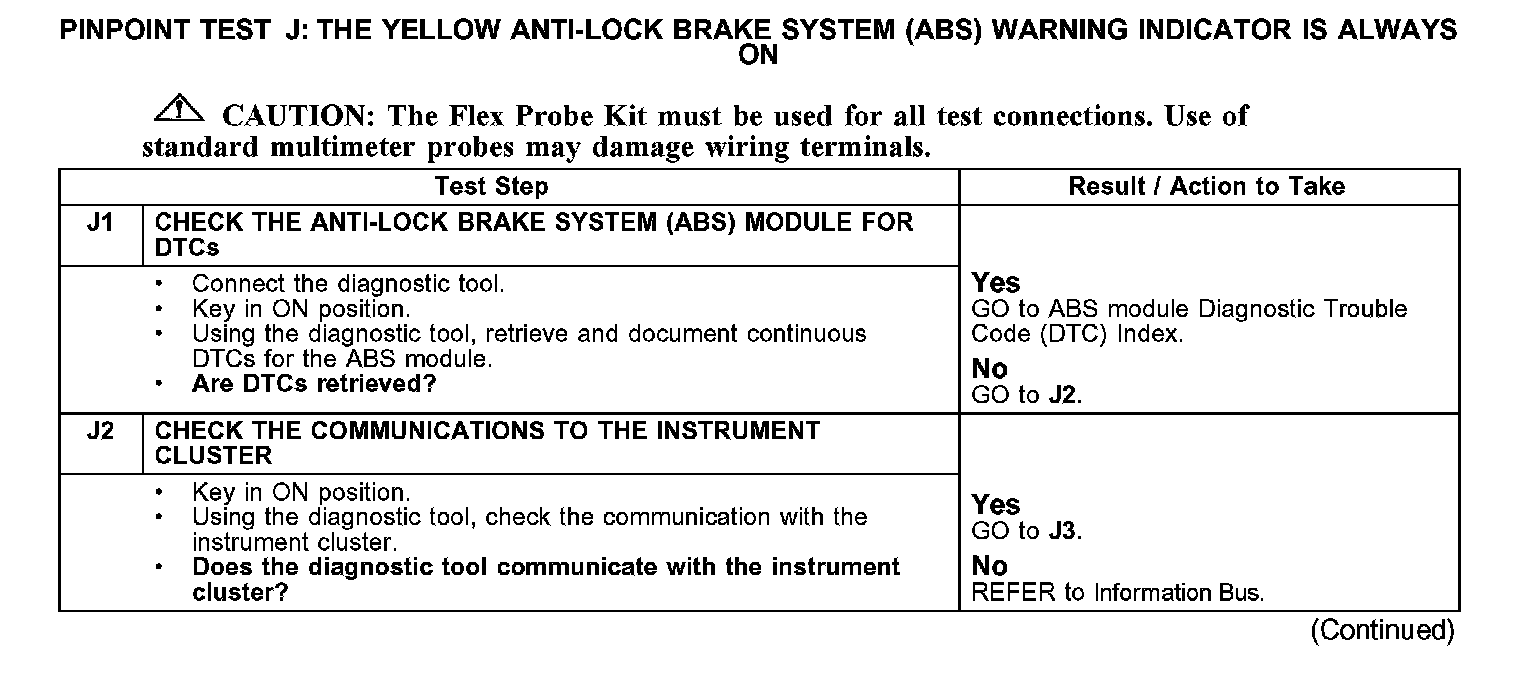

J1-J2:

J3:
