Test F: the Roof Opening Panel Will Not Slide Closed Or Will Not Vent Up

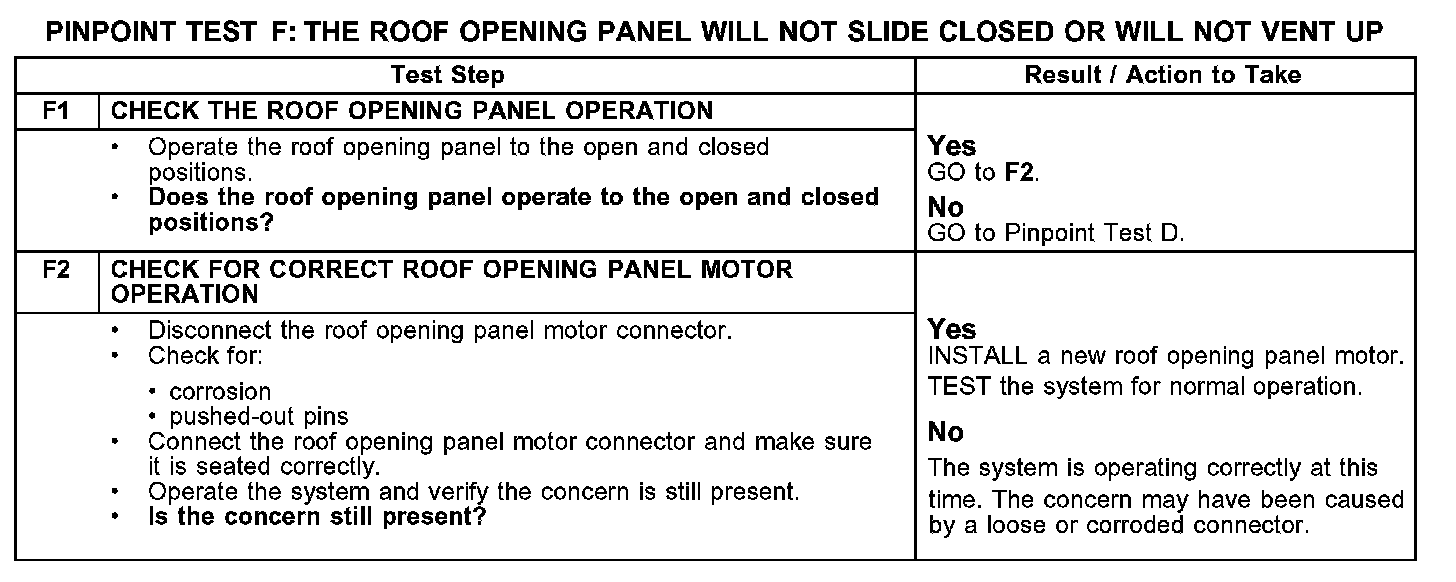

PINPOINT TEST F: THE ROOF OPENING PANEL WILL NOT SLIDE CLOSED OR WILL NOT VENT UP

F1-F2:

Normal Operation
The roof opening panel motor is supplied voltage from the battery junction box (BJB) and the central junction box (CJB). When the roof opening panel control switch operated, voltage is directed to the roof opening panel motor for open or close.

Possible Causes
- roof opening panel control switch (part of the overhead console)
- roof opening panel motor
