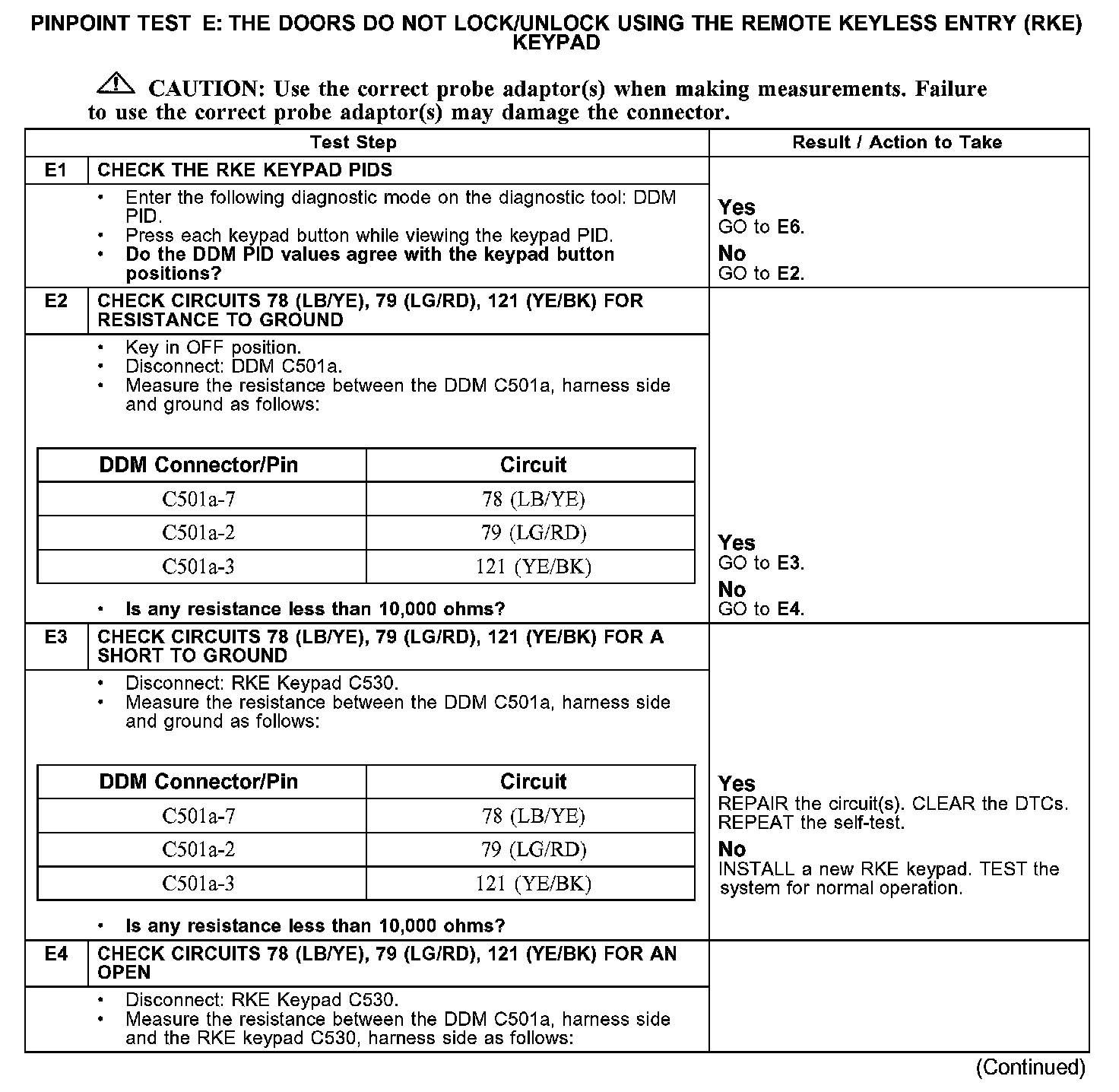

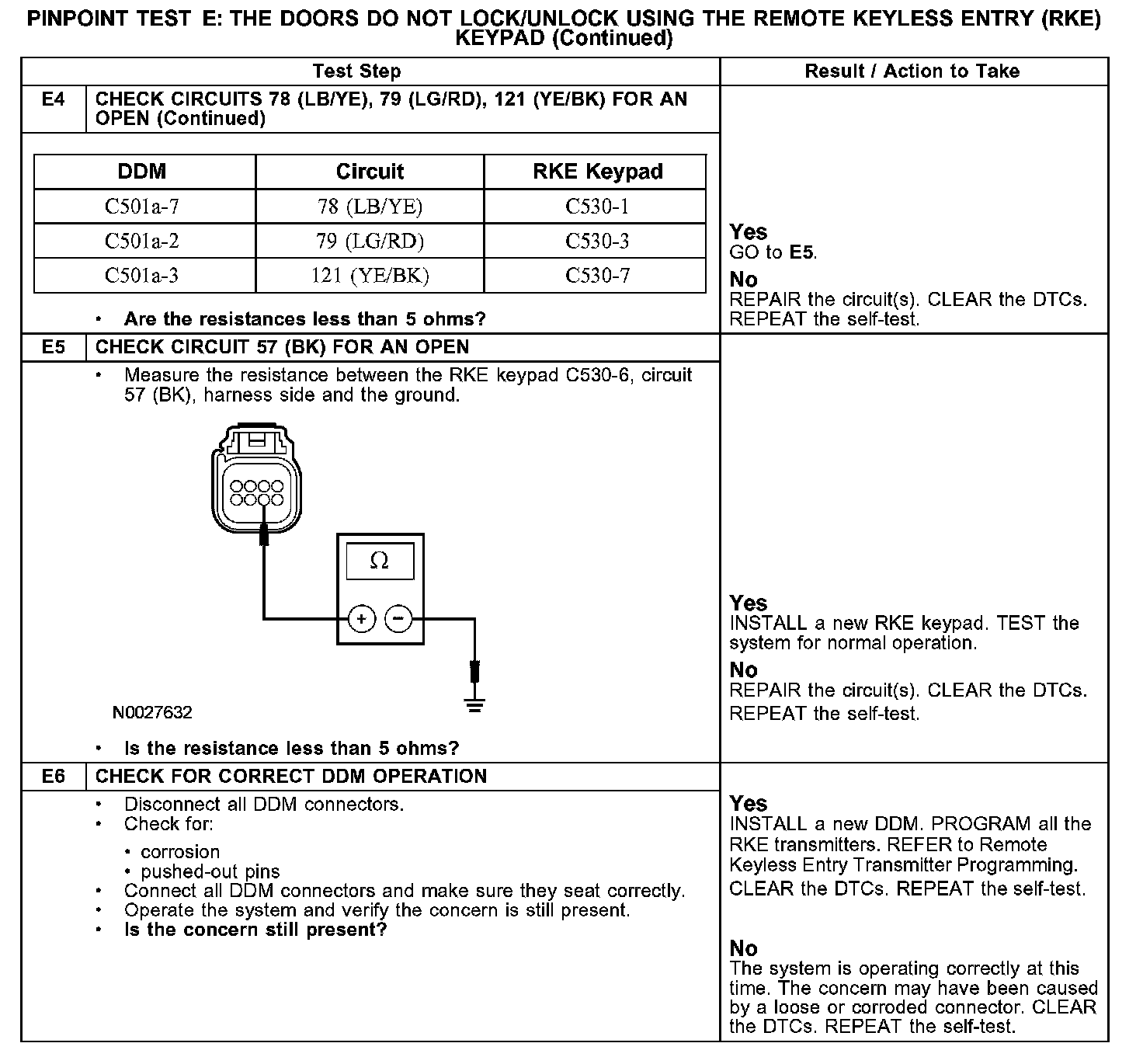

Test E: The Doors Do Not Lock/Unlock Using the Remote Keyless Entry (RKE) Keypad

PINPOINT TEST E: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE KEYLESS ENTRY (RKE) KEYPAD

E1-E4:

E4-E6:

Normal Operation
The driver door module (DDM) monitors the RKE keypad through circuits 78 (LB/YE), 79 (LG/RD) and 121 (YE/BK). As each button is pressed a connection to ground through individual resistors occurs. The DDM receives the ground signals from the RKE keypad and operates the locks accordingly.

Possible Causes
- circuit 57 (BK) open
- circuit 78 (LB/YE) open or short to ground
- circuit 79 (LG/RD) open or short to ground
- circuit 121 (YE/BK) open or short to ground
- RKE keypad
- DDM
