Test H: The Vehicle Does Not Start - the Passive Anti-Theft System (PATS) Indicator Proves Out Normally

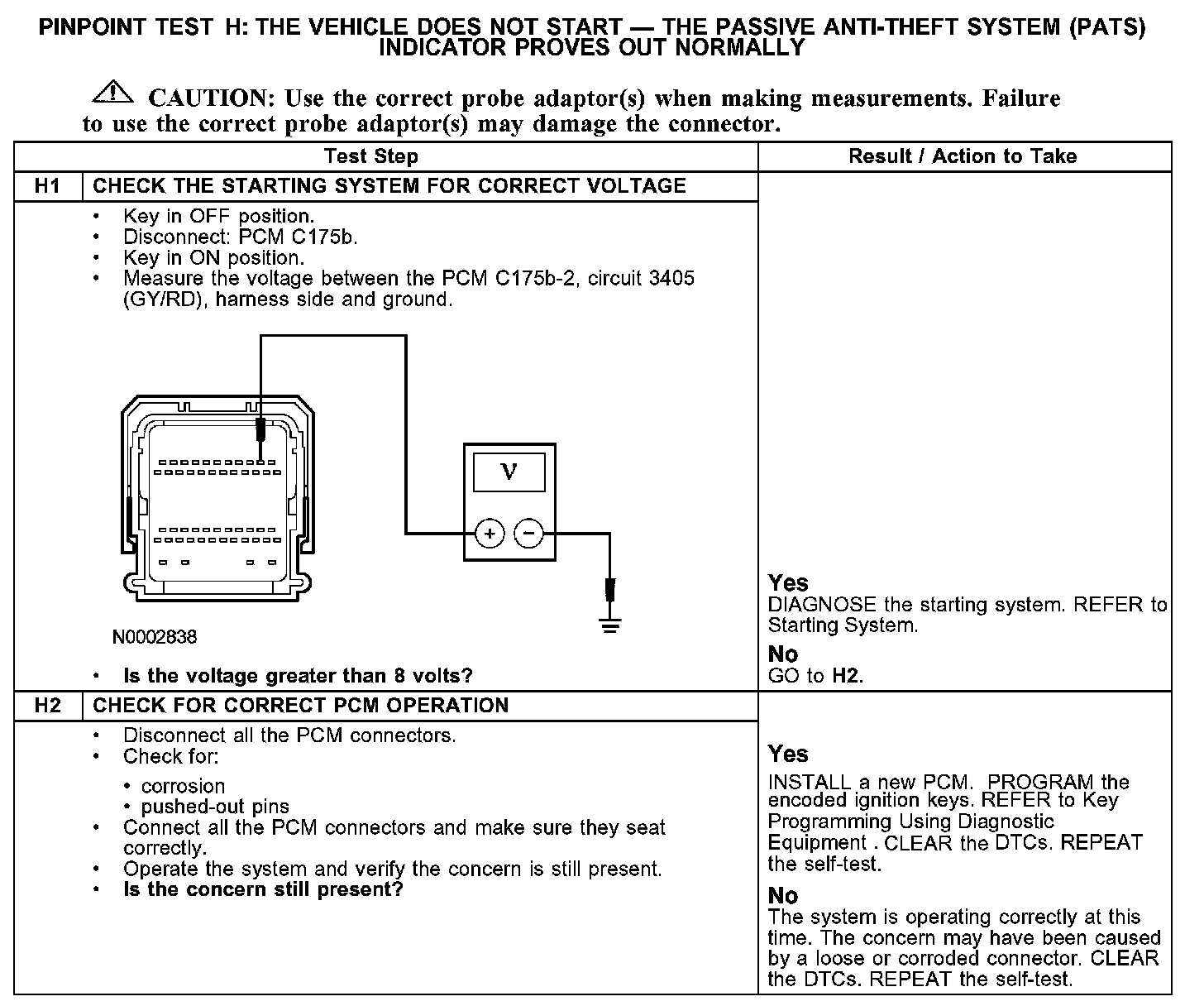

PINPOINT TEST H: THE VEHICLE DOES NOT START - THE PASSIVE ANTI-THEFT SYSTEM (PATS) INDICATOR PROVES OUT NORMALLY

H1-H2:

Normal Operation
During each vehicle start sequence, the PATS transceiver reads the PATS key identification code and sends the data to the powertrain control module (PCM). The PCM supplies voltage to the starter on circuit 3405 (GY/RD).

Possible Causes
- PCM
