Keyless Entry Key-Pad: Service and Repair

REMOTE KEYLESS ENTRY KEYPAD

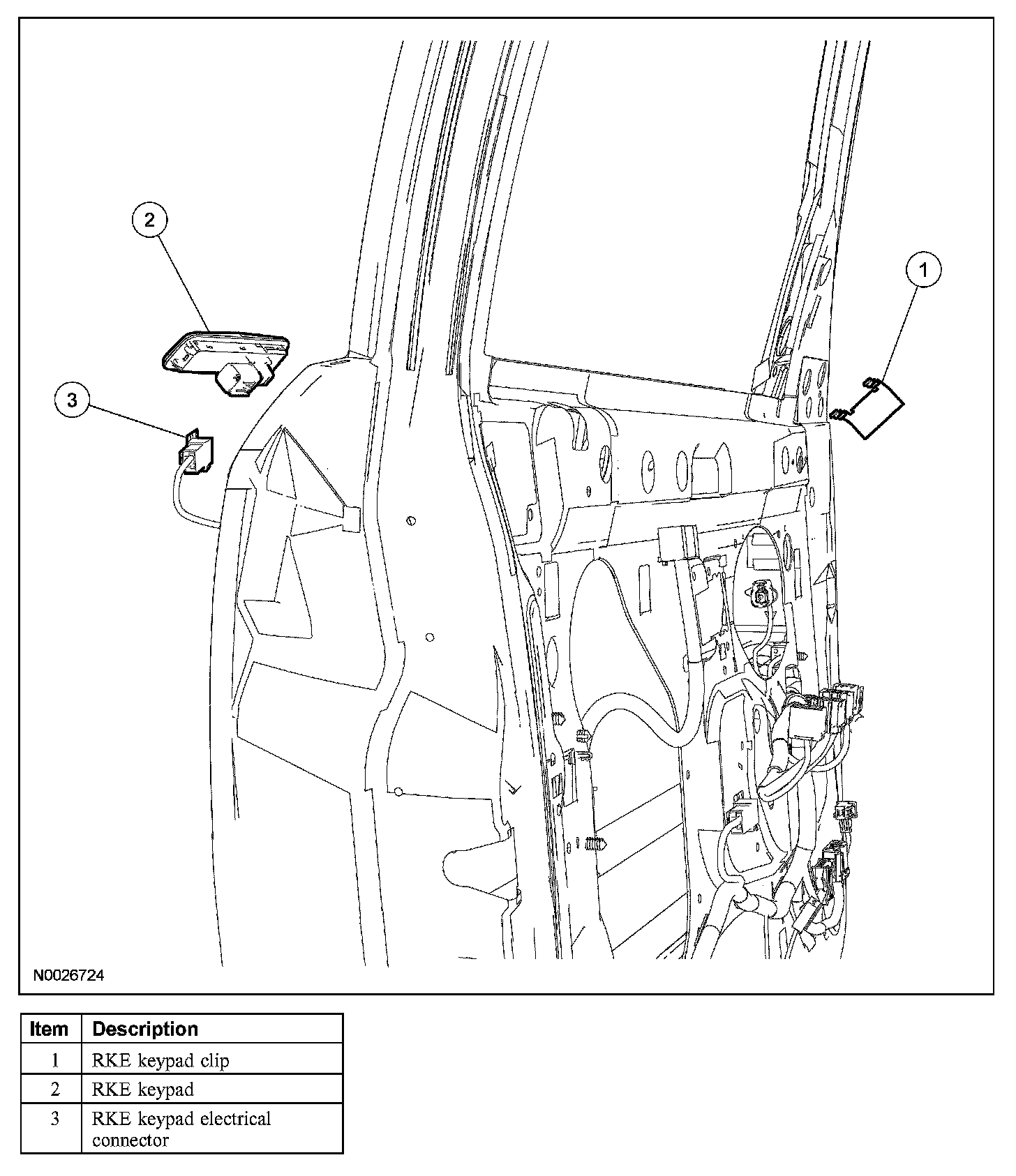

Removal and Installation
1. Remove the LH front door trim panel.
2. Position the watershield aside.
3. Remove the clip and the RKE keypad.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
