FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2006
>>
Grand Marquis V8-4.6L VIN V Flex Fuel
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - External Controls
>>
Test D: The Transmission Control (TC) Switch Does Not Operate Correctly
Test D: The Transmission Control (TC) Switch Does Not Operate Correctly
Pinpoint Test D: The Transmission Control (TC) Switch Does Not Operate Correctly

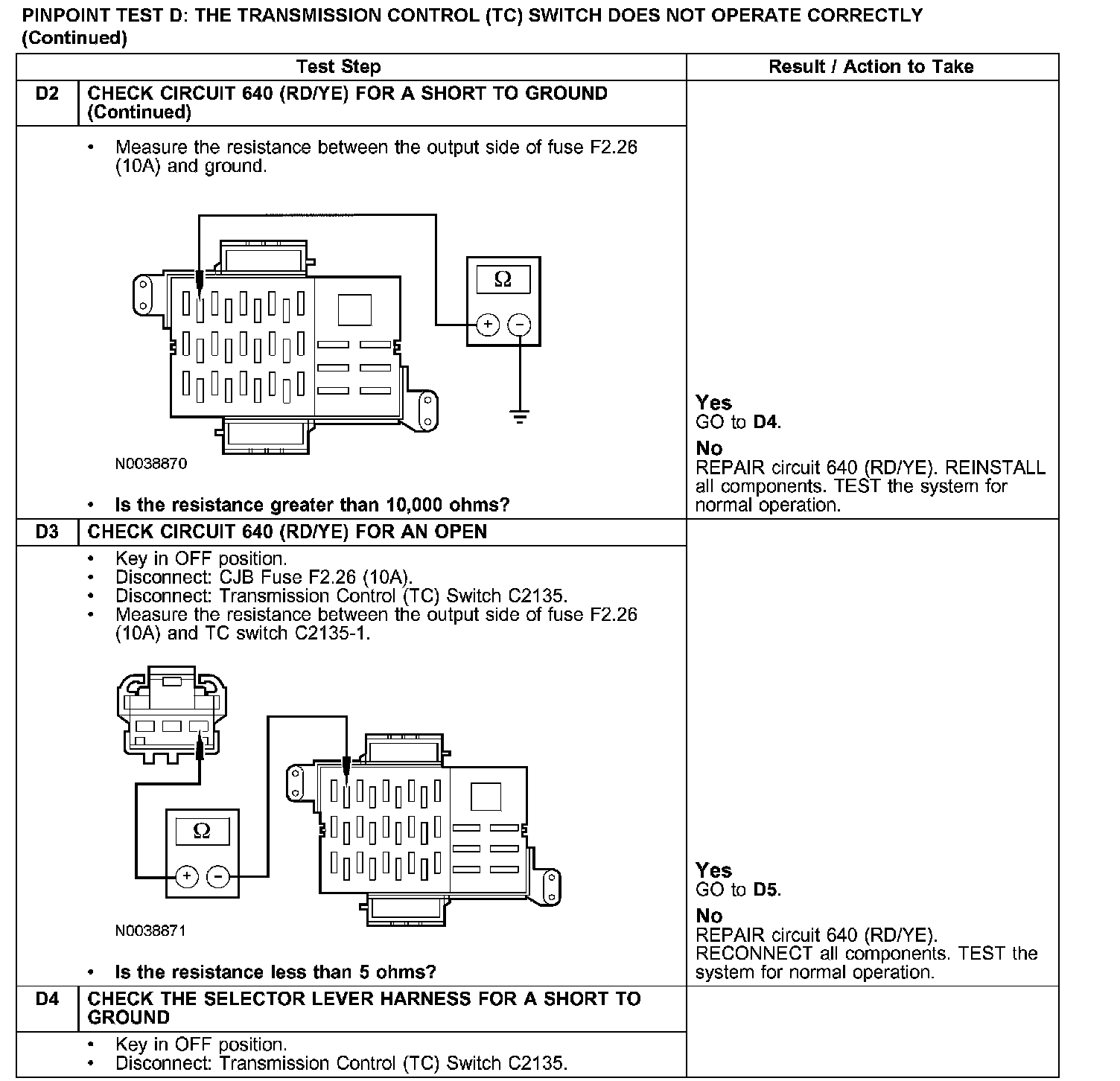

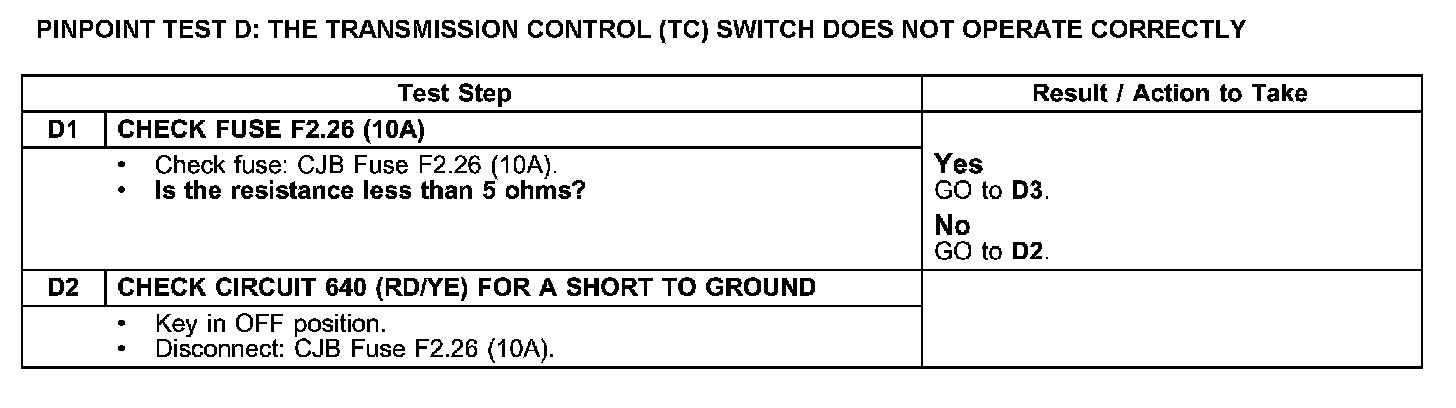

D1-D2:

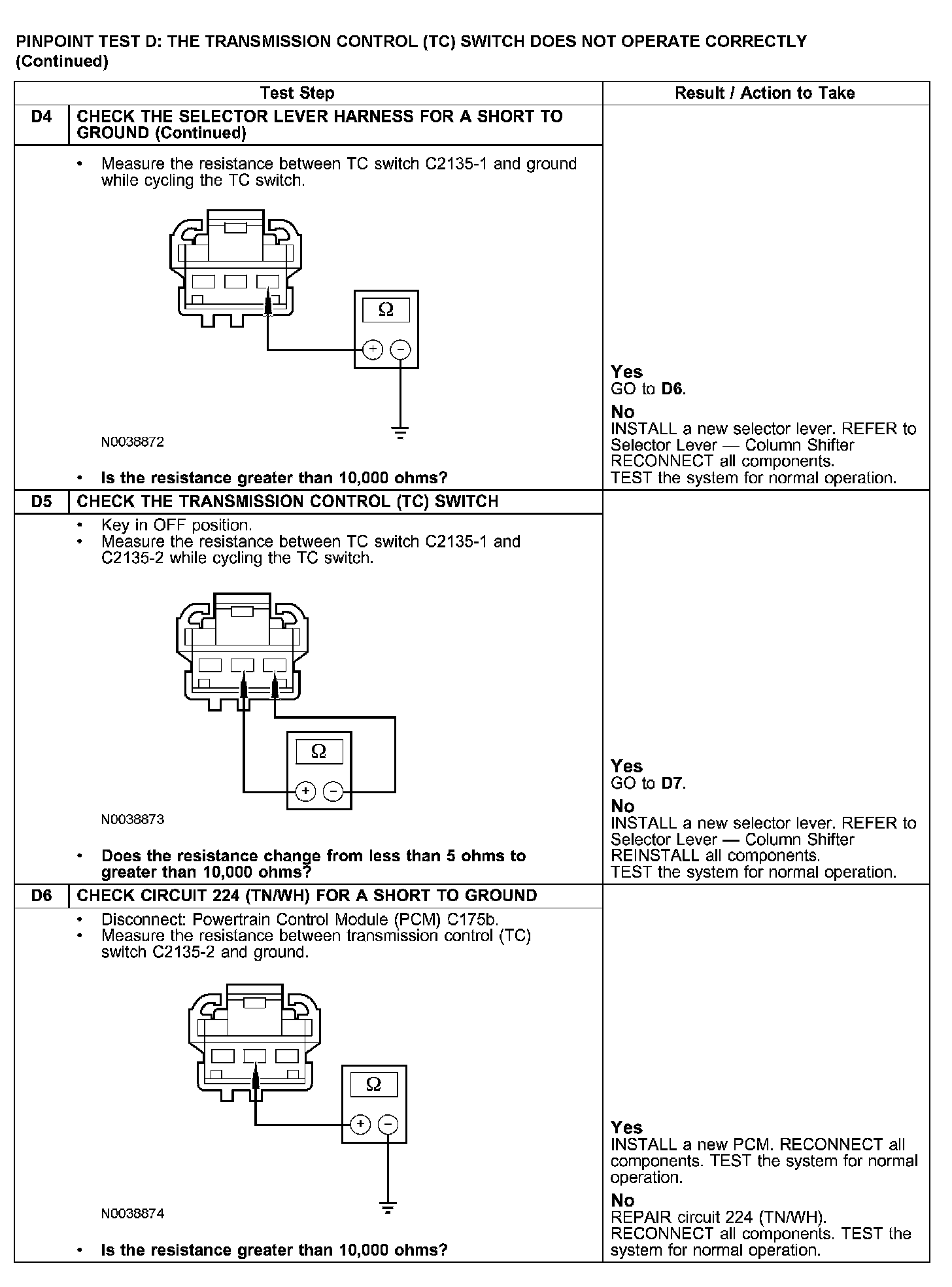

D2-D4:
D4-D6:

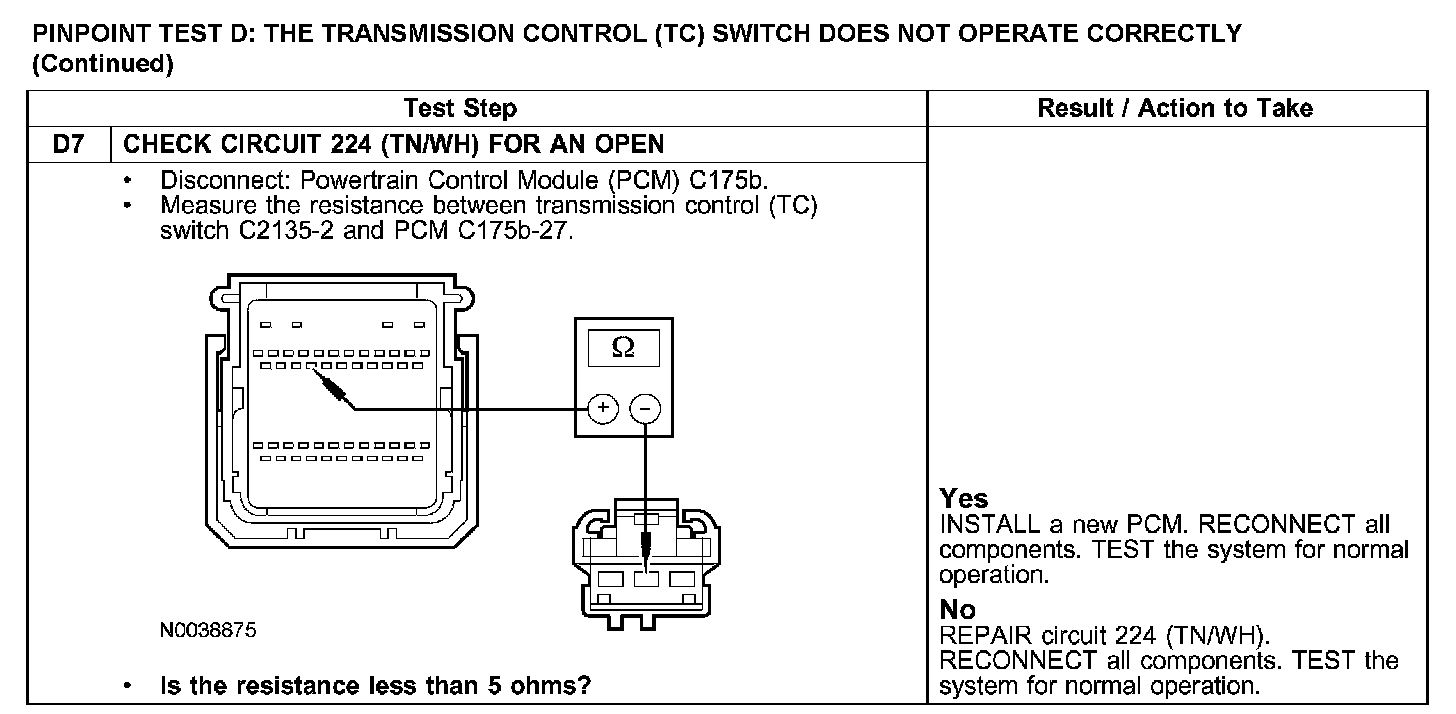

D7:
