Diagnostic Trouble Code Tests and Associated Procedures

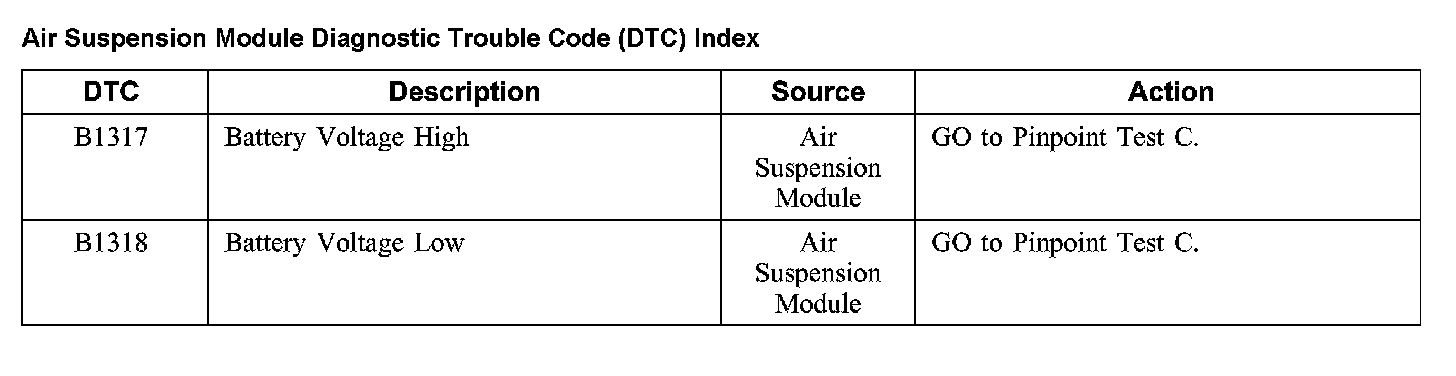

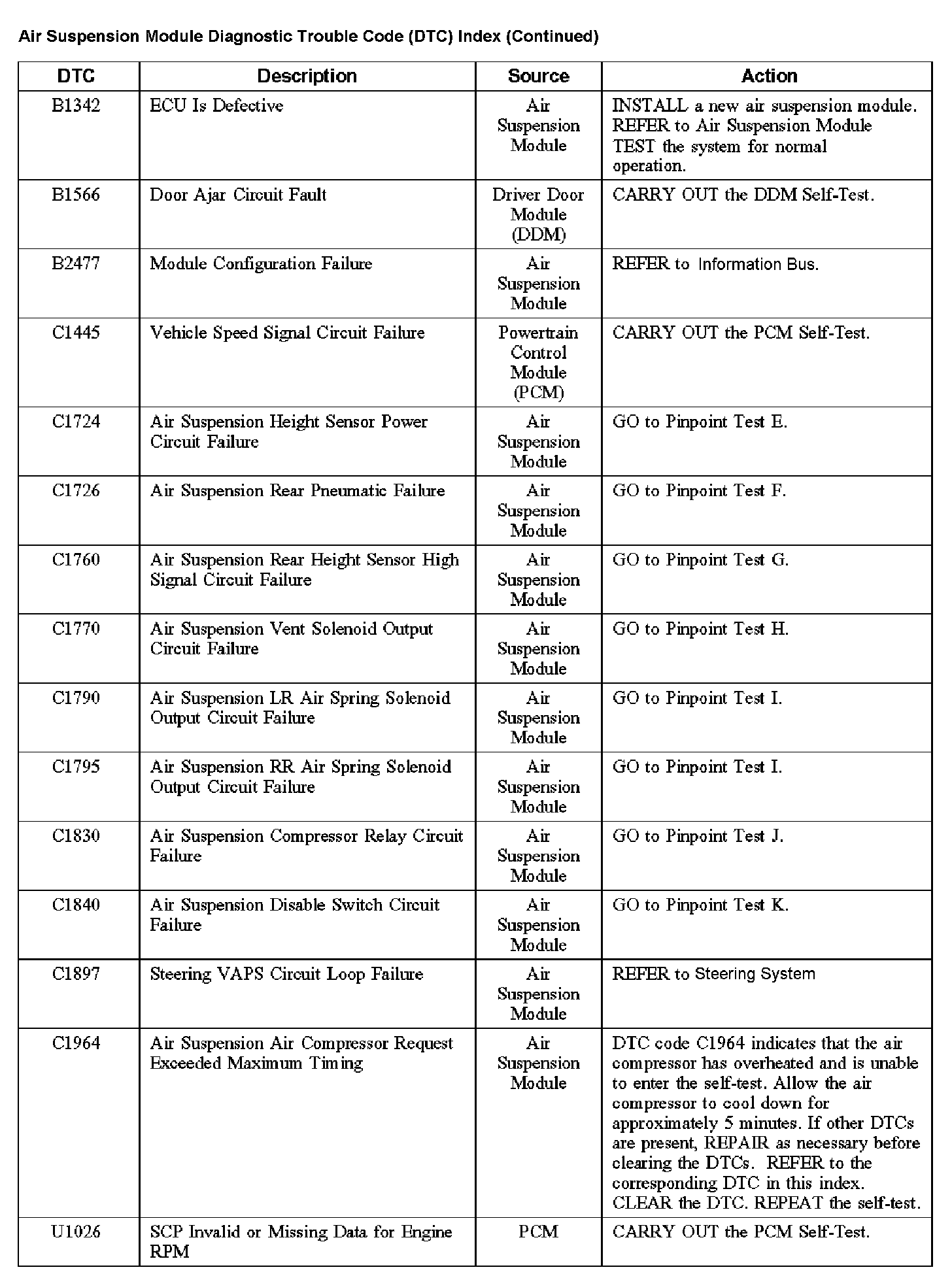

Air Suspension Module Diagnostic Trouble Code (DTC) Index

NOTE: If air suspension module C2131b is disconnected before air suspension module C2131a, DTCs C1830, C1770, C1790 and C1795 will be retrieved and must be cleared before an accurate list of continuous DTCs can be retrieved.
